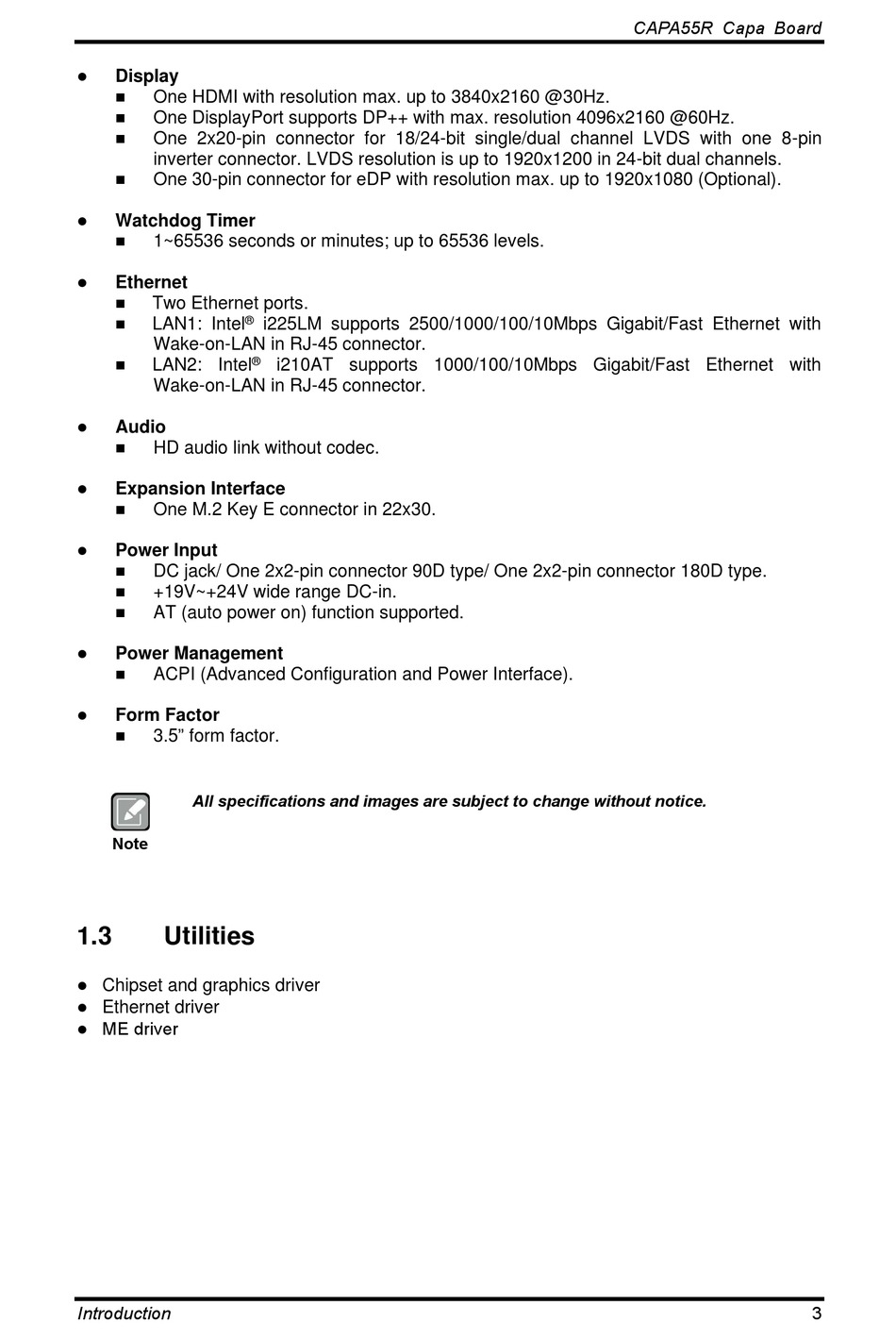

⚫ Display
◼ One HDMI with resolution max. up to 3840x2160 @30Hz.
◼ One DisplayPort supports DP++ with max. resolution 4096x2160 @60Hz.
◼ One 2x20-pin connector for 18/24-bit single/dual channel LVDS with one 8-pin
inverter connector. LVDS resolution is up to 1920x1200 in 24-bit dual channels.
◼
One 30-pin connector for eDP with resolution max. up to 1920x1080 (Optional).
⚫ Watchdog Timer
◼ 1~65536 seconds or minutes; up to 65536 levels.
⚫ Ethernet
◼ Two Ethernet ports.
◼ ®
LAN1: Intel
Wake-on-LAN in RJ-45 connector.
◼ LAN2: Intel
Wake-on-LAN in RJ-45 connector.
⚫ Audio
◼ HD audio link without codec.
⚫ Expansion Interface
◼ One M.2 Key E connector in 22x30.
⚫ Power Input
◼
DC jack/ One 2x2-pin connector 90D type/ One 2x2-pin connector 180D type.
◼ +19V~+24V wide range DC-in.
◼ AT (auto power on) function supported.
⚫ Power Management
◼ ACPI (Advanced Configuration and Power Interface).
⚫
Form Factor
◼ 3.5" form factor.
All specifications and images are subject to change without notice.
Note
1.3

Utilities

⚫ Chipset and graphics driver
⚫ Ethernet driver
ME driver
⚫
Introduction
i225LM supports 2500/1000/100/10Mbps Gigabit/Fast Ethernet with
®
i210AT supports 1000/100/10Mbps Gigabit/Fast Ethernet with
CAPA55R Capa Board
3
