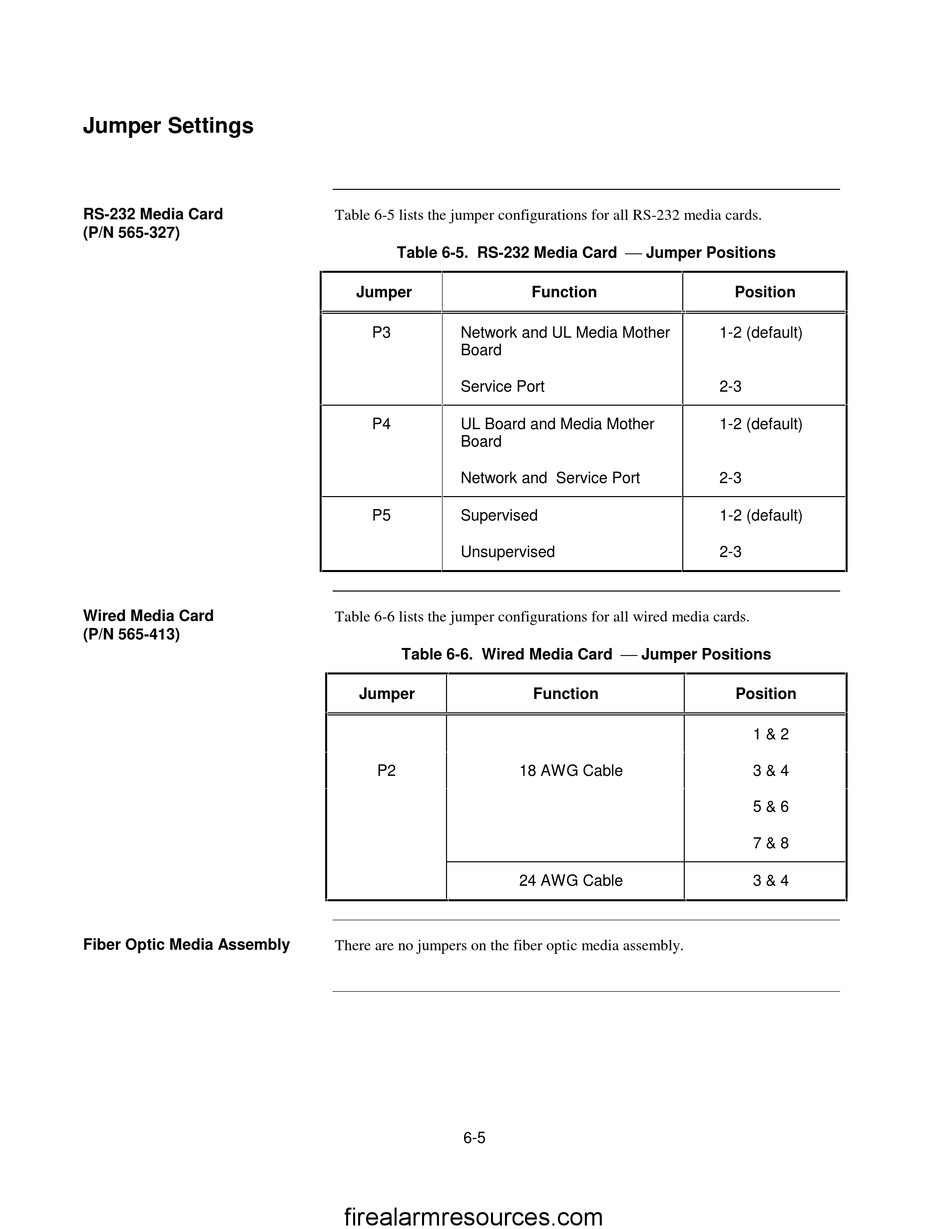

Jumper Settings

RS-232 Media Card
(P/N 565-327)
Wired Media Card
(P/N 565-413)

Fiber Optic Media Assembly

Table 6-5 lists the jumper configurations for all RS-232 media cards.
Table 6-5. RS-232 Media Card  Jumper Positions
Jumper
P3 Network and UL Media Mother
Board
Service Port
P4 UL Board and Media Mother
Board
Network and Service Port
P5 Supervised
Unsupervised
Table 6-6 lists the jumper configurations for all wired media cards.
Table 6-6. Wired Media Card  Jumper Positions
Jumper
P2
There are no jumpers on the fiber optic media assembly.
6-5
firealarmresources.com
Function
Function
18 AWG Cable
24 AWG Cable
Position
1-2 (default)
2-3
1-2 (default)
2-3
1-2 (default)
2-3
Position
1 & 2
3 & 4
5 & 6
7 & 8
3 & 4
