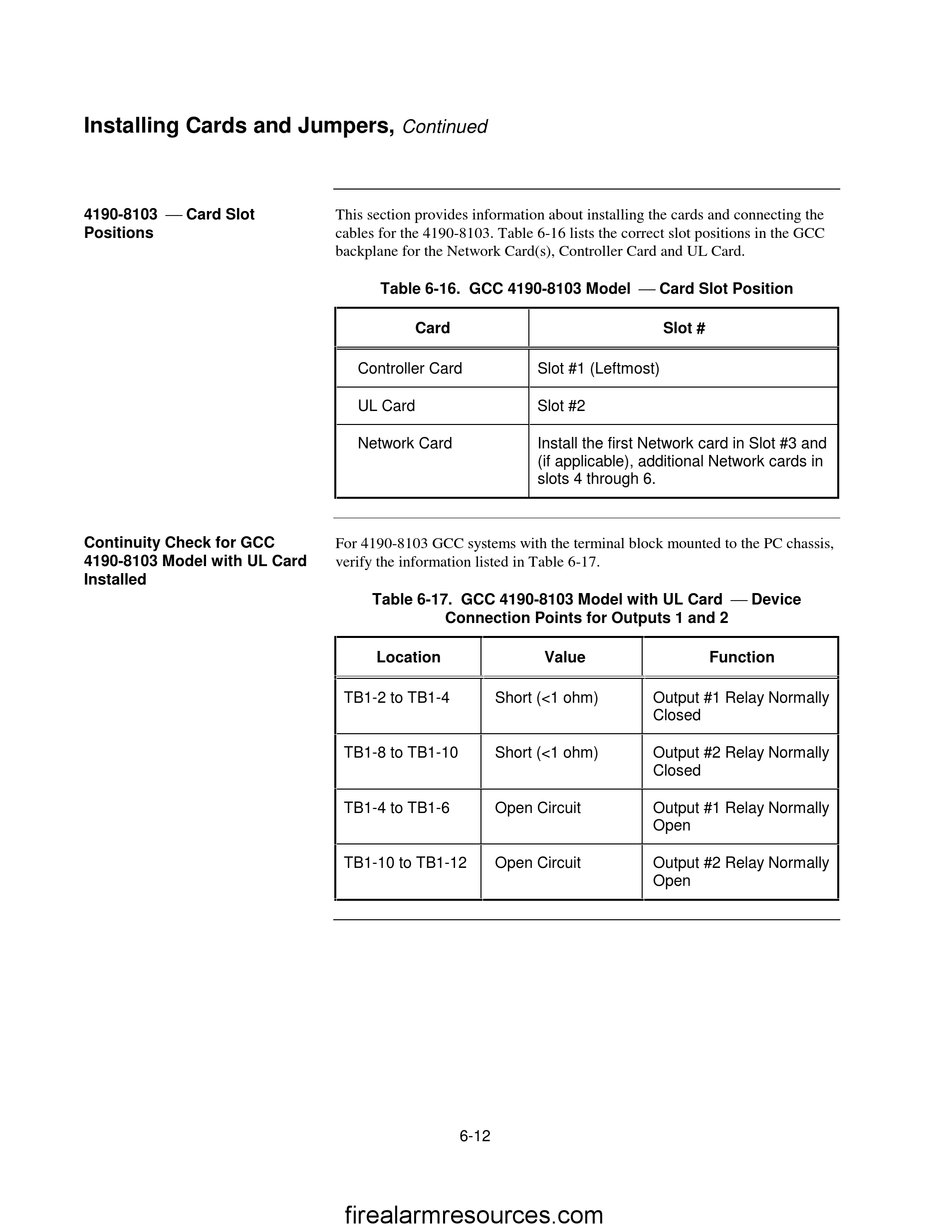

Installing Cards and Jumpers,
4190-8103  Card Slot
Positions
Continuity Check for GCC
4190-8103 Model with UL Card
Installed
Continued
This section provides information about installing the cards and connecting the
cables for the 4190-8103. Table 6-16 lists the correct slot positions in the GCC
backplane for the Network Card(s), Controller Card and UL Card.
Table 6-16. GCC 4190-8103 Model  Card Slot Position
Card
Controller Card
UL Card
Network Card
For 4190-8103 GCC systems with the terminal block mounted to the PC chassis,
verify the information listed in Table 6-17.
Table 6-17. GCC 4190-8103 Model with UL Card  Device

Connection Points for Outputs 1 and 2

Location
TB1-2 to TB1-4 Short (<1 ohm)
TB1-8 to TB1-10 Short (<1 ohm)
TB1-4 to TB1-6 Open Circuit
TB1-10 to TB1-12 Open Circuit
6-12
firealarmresources.com
Slot #
Slot #1 (Leftmost)
Slot #2
Install the first Network card in Slot #3 and
(if applicable), additional Network cards in
slots 4 through 6.
Value Function
Output #1 Relay Normally
Closed
Output #2 Relay Normally
Closed
Output #1 Relay Normally
Open
Output #2 Relay Normally
Open
