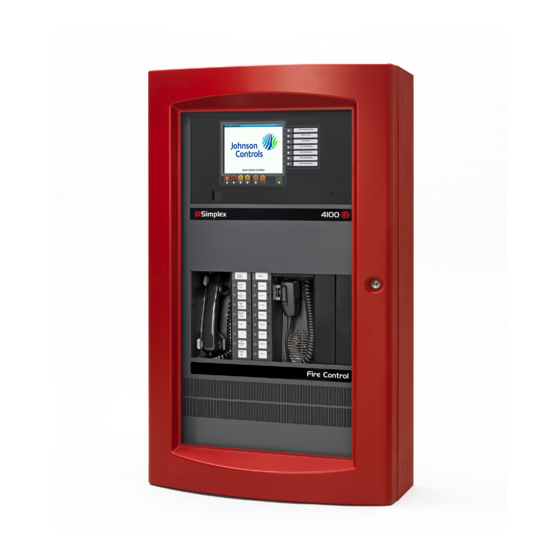

4100/4100+ Fire Alarm
Operating Instructions
FA4-31-201 (574-018)
© 1995 Simplex Time Recorder Co.
Ed 5 95
All specifications and other information shown were current as of publication, and are subject to change without notice.
-7
firealarmresources.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4100 and is the answer not in the manual?

Questions and answers

Related Manuals for Simplex 4100

Summary of Contents for Simplex 4100

  • Page 1 4100/4100+ Fire Alarm Operating Instructions FA4-31-201 (574-018) © 1995 Simplex Time Recorder Co. Ed 5 95 All specifications and other information shown were current as of publication, and are subject to change without notice. firealarmresources.com...
  • Page 2 ELECTRICAL HAZARD Disconnect electrical power when making any Internal adjustments or repairs. Instal- lation and servicing should be performed by qualified Simplex Representatives. CAUTION POWERING REQUIREMENTS When removing power from the system, disconnect batteries FIRST and AC power last. When connecting...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Page SECTION 1 - SYSTEM OVERVIEW Introduction ................................1 System Operating Description ...........................2 Log In Procedure..............................3 Log Out Procedure ..............................4 Handling Abnormal Conditions..........................5 SECTION 2 - ALARM CONDITIONS Introduction ................................7 Global Acknowledge Panel Operation During Alarm Conditions ................7 How to Silence the Alarm Signals ........................8 How to Reset the System............................8 Individual Acknowledge Panel Operation During Alarm Conditions ................8...
  • Page 4 Page SECTION 4 - SUPERVISORY SERVICE CONDITIONS Introduction................................19 Global Acknowledge Panel Operation During Supervisory Service Conditions ............19 Individual Acknowledge Panel Operation During Supervisory Service Conditions ..........20 Essential Supervisory Service Condition Keys......................21 Supervisory Acknowledge Key ......................... 21 SECTION 5 - RS-232 INTERFACE Introduction................................
  • Page 5 Page SECTION 7 - AUDIO SYSTEMS (continued) Single Channel Audio System Operation ........................35 How to Operate the Microphone Operation During Automatic Alarm Conditions..........35 How to Manually Initiate an Evacuation Signal ....................36 How to Operate the Microphone During Non-Alarm Conditions................37 How to Use the Local Panel Speaker........................37 Dual Channel Audio Operations ..........................38 Audio Control LED/Switch Module for Dual Channel Audio ................38 ALL SPEAKERS EVAC Switch .........................38...
  • Page 6 Page SECTION 9 - ADVANCED FUNCTIONS Introduction................................55 Control Keys ..............................55 Function Keys ..............................56 How to Set Time and Date..........................56 How to Escape from Menu..........................57 Point Control with the Function Key........................58 Display/Action Keypad ............................58 FUNCTION Key ..............................
  • Page 7 Page SECTION 10 - SYSTEM TEST PROCEDURES (continued)  Walk Test Procedures............................74  How to Enter a Walk Test Passcode ........................74  How to Enter Walk Test Mode.........................75  How to Exit Walk Test Mode ...........................76 How to Turn a Point OFF ..........................76 How to Turn a Point ON ............................77 How to Return a Point to AUTO ........................78 How to Enable a Disabled Point........................79...
  • Page 8 FIGURES Figure Page Interface Panel ............................. 2 Interface Panel Showing Alarm Condition....................7 Interface Panel Showing Trouble Condition ....................13 Interface Panel Showing Supervisory Service Condition ................19 CRT Main Menu Screen ..........................25 CRT Acknowledge Screen ......................... 26 CRT Log In Screen............................. 26 CRT Alarm Historical Log Screen.......................

  • Page 9: Section 1 - System Overview

    The 4100+ also uses a switching power supply to provide up to 8 Amps of power at 24 VDC for load devices and system operation, plus up to 4 Amps for battery charging responsibilities. In addition, this power supply can communicate directly with the Master Controller via internal serial communications, reporting such data as system voltage and current usage and battery charging information.

  • Page 10: System Operating Description

    ON and flashes, the city circuit may be activated (if required by local codes), and various programmed events occur. When the 4100 senses a malfunction within the system (loss of power, hardware failure, etc.), a Trouble Condition is announced by the interface panel. The tone-alert turns ON and remains steady ON, the SYSTEM TROUBLE LED flashes and various programmed events occur.

  • Page 11: Log In Procedure

    NOTE: Various functions may be passcode protected to prevent access by unauthorized personnel. Passcodes are provided to the user during system installation. To change or receive additional information concerning your passcodes, contact your local Simplex Branch Office. To Log In, perform the following procedure.

  • Page 12: Log Out Procedure

    6. Enter the passcode (up to 10 numbers). Press the <ENTER> key on the ENTRY keypad. For security reasons, an “X” is displayed for each digit of your passcode, as shown below. Enter a Passcode followed by <ENTER> If the passcode is correct, the following message is shown. Enter a Passcode followed by <ENTER>...

  • Page 13: Handling Abnormal Conditions

    Section 1, for details.) The 4100 system can be configured with either Global or Individual Acknowledge. When Global Acknowledge is used in the system, one press of an <ACK> key globally acknowledges every abnormal point in the system in that category.
  • Page 14 When a point is acknowledged, the interface panel status LED remains steady ON, and the tone-alert is silenced. The total number of alarm, supervisory, and trouble conditions is shown on the alphanumeric display along with a prompt to press the <ACK> key for point review. Pressing the <ACK> key scrolls through the selected list in chronological order.

  • Page 15: Introduction

    FOLLOW LOCAL OPERATING PROCEDURES WHEN INVESTIGATING ALARM CONDITIONS. NOTE: Refer to Figure 2 for locations of interface panel LEDs and keys. When a System Alarm Condition is detected by the 4100, the condition is indicated by the following: • Red “SYSTEM ALARM” LED is flashing •...

  • Page 16: How To Silence The Alarm Signals

    2. Press the <ALARM ACK> key. Read and follow the instructions on the alphanumeric display. Pertinent report data is given as shown below. a. The tone-alert is silenced and the display will show pertinent report information, such as shown below. FIRST FLOOR EAST WING ROOM 31 PULL STATION...

  • Page 17: How To Silence The Alarm Signals

    2. Press the <ALARM ACK> key. Read and follow the instructions on the alphanumeric display. Pertinent report data is given as shown below. FIRST FLOOR EAST WING ROOM 31 Press ACK key to acknowledge ALARM ALTERNATING LINES PULL STATION ALARM 3.

  • Page 18: Alarm Silence Key

    System Alarm Condition in the following manner. • Global Acknowledge – When Global Acknowledge is used on the 4100 system, a single key press of the <ALARM ACK> key acknowledges all alarm status changes in the system. If status change information is required, you may review this data (after a 30-second delay) by pressing the <ALARM ACK>...

  • Page 19: System Reset Key

    SYSTEM RESET KEY The <SYSTEM RESET> key is used to return the system to its normal state after an alarm condition has been cleared. When the <SYSTEM RESET> key is pushed, it causes any latched circuits to reset automatically. Also reset are initiating devices, relays (including the city relay), notification appliances, and all LEDs and indicators which are programmed to reset with the <SYSTEM RESET>...
  • Page 20 To disable a point, perform the following procedure. 1. Open the interface panel access door. 2. Press the <ACK> key until the point to be disabled is shown on the alphanumeric display, as shown below. SECOND FLOOR EAST WING ROOM 16 PULL STATION ALARM 3.

  • Page 21: Introduction

    NOTE: Refer to Figure 3 for locations of interface panel LEDs and keys. When a System Trouble Condition is detected by the 4100, the condition is indicated by the following: • Yellow “SYSTEM TROUBLE” LED on the interface panel is flashing •...

  • Page 22: Individual Acknowledge Panel Operation During Trouble Conditions

    3. Read the alphanumeric display. Then investigate the problem to determine its cause. a. Restore or replace the defective device (switch, wire, notification appliance, etc.) in accordance with device instructions, or call Simplex to repair the system. b. The trouble automatically clears when the problem has been corrected.

  • Page 23: Essential Trouble Condition Keys

    System Trouble Condition in the following manner. • Global Acknowledge – When Global Acknowledge is used on the 4100 system, a single key press of the <TBL ACK> key acknowledges all troubles in the system. If status change information is required, you may review this data (after a 30-second delay) by pressing the <TBL ACK>...

  • Page 24: System Reset Key

    NOTE: The <SYSTEM RESET> key is also described in Section 2 of this document. Normally, trouble points do not require acknowledgment of the cleared condition. If the system does not clear, read the display. Then check for devices still in trouble (pull stations, smoke detectors etc.). Call Simplex to repair the system.

  • Page 25: Trouble Indications For Truealarm Sensors

    A “Smoke Detector Dirty” trouble condition is reported any time the average value on an individual sensor reaches a set threshold value. At this time, the 4100 is still compensating for environmental factors and is holding the set sensitivity level.

  • Page 26: Almost Dirty Indication

    SELF-TEST ABNORMAL INDICATION All 4100 system sensors are automatically tested once every minute. If a sensor fails to report properly to the 4100 master controller, a “self-test abnormal” condition occurs. Since the sensor is not working properly, it must be replaced.

  • Page 27: Introduction

    NOTE: Refer to Figure 4 for locations of interface panel LEDs and keys. When a System Supervisory Service Condition is detected by the 4100, the condition is indicated by the following: • Yellow “SUPERVISORY SERVICE” LED is flashing •...

  • Page 28: Individual Acknowledge Panel Operation During Supervisory Service Conditions

    3. Read the alphanumeric display. Then, investigate the problem to determine its cause. a. Restore or replace the defective device (switch, wire, notification appliance, etc.) in accordance with device instructions, or call Simplex to repair the system. b. The trouble automatically clears when the problem has been corrected.

  • Page 29: Essential Supervisory Service Condition Keys

    b. The alphanumeric display shows the area and type of problem, as shown below. FIRST FLOOR EAST WING ROOM 31 Press <ACK> key to acknowledge FIRST FLOOR EAST WING ROOM 31 FIRE PUMP MONITOR RUNNING 3. Read the alphanumeric display. Then, investigate the trouble to determine its cause. Restore or replace the defective device (switch, wire, notification appliance, etc.) in accordance with device instructions.
  • Page 30 Supervisory Service Condition in the following manner: • Global Acknowledge – When Global Acknowledge is used on the 4100 system, a single key press of the <SUPV ACK> key acknowledges all supervisory service changes in the system. If status change information is required, you may review this data (after a 30-second delay) by pressing the <SUPV ACK>...

  • Page 31: Introduction

    SECTION 5 RS-232 INTERFACE INTRODUCTION Up to five RS-232 ports are available in the 4100 system. The RS-232 interface option supports both printers and video terminals to annunciate alarm, supervisory, and trouble conditions. RS-232 PORT ACCESS LEVELS The interface panel, and each RS-232 interface port configured for a video terminal, are programmed to allow certain operations at each access level.

  • Page 32: Crt Function Key Definitions

    CRT FUNCTION KEY DEFINITIONS The Function Keys on the CRT keyboard are used to control the various 4100 operations. Table 2 defines the various keys and their uses. Table 2 Function Key Definitions * FUNCTION KEY DEFINITION Print Screen (Printer Required)

  • Page 33: Acknowledge Screen

    CRT Main Menu Screen ACKNOWLEDGE SCREEN The entire 4100 system (including the CRT ports) is configured as either a Global Acknowledge system or as an Individual Acknowledge system. If the system is configured as a Global Acknowledge system, one press of the <PF1>...

  • Page 34: Log In Screen

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4100 FIRE ALARM OPERATOR INTERFACE MAIN MENU 1.

  • Page 35: Historical Log Screen

    Historical Logs are displayed with any entry number, followed by a time tag and the actual event. The Historical Log shows all events in the 4100 system log, not just those events annunciated on the CRT. These screens are not dynamic. They display only historical data.

  • Page 36: The System Printer

    THE SYSTEM PRINTER The 4100 uses a printer to provide a hardcopy of the system’s current status. The 4100 system supports both DC and AC printers. The DC printer prints alarms in red ink; troubles and supervisory conditions in black ink. A DC printer printline is 40 characters long.

  • Page 37: Section 6 - Network Interface

    SECTION 6 NETWORK INTERFACE INTRODUCTION The Network Interface Option allows the 4100/4100+ to communicate with other FA panels or with a 2120 Multiplex System (see Network Concepts [NET-91-500]). NOTE: The 4100/4100+ acts as a transponder when connected to a 2120.
  • Page 38 firealarmresources.com...

  • Page 39: Section 7 - Audio Systems

    • Triple Channel Audio operation • Phone operation • Optional Feature operation. Contact your local Simplex Branch Office to determine your audio configuration. Use the topics that apply to your audio system. GENERAL INFORMATION The following paragraphs contain material which is applicable to all audio systems. They describe system features and general operating procedures.

  • Page 40: Audio Control Led/Switch Module

    Control of audio functions are performed by operating switches on LED/Switch modules which are mounted on the 4100 Front Panel. The functions and quantity of the LED/Switch modules depend on the desired options and the number of channels in the audio system. Labels are inserted into the slots on the LED/Switch modules to identify the function of each switch and LED.

  • Page 41: Trouble Messages

    97, the system announces “TESTING ZONE NINE SEVEN, TROUBLE”. Testing of signal circuit supervision and system troubles (e.g., earth ground trouble) was added in Version 3.01 of the 4100 system software. SINGLE CHANNEL AUDIO OPERATIONS...

  • Page 42: All Speakers Evac Switch

    AUDIO CONTROL SWITCH MODULE SINGLE CHANNEL SINGLECHANNEL SPEAKERS EVAC ALL SPEAKERS EVAC SELECTIVE EVAC SELECTIVE EVAC ALL SPEAKERS TALK (BLANK) SPEAKERS TALK (BLANK) (BLANK) (BLANK) LOCAL SPEAKER LOCAL SPEAKER Figure 12 Audio Control LED/Switch Module for Single Channel Operations ALL SPEAKERS EVAC SWITCH This switch is used to turn ON all of the speaker circuits which will output the evacuation tone, evacuation message or a combination of both.

  • Page 43: Optional Functions

    OPTIONAL FUNCTIONS Optional Functions are available to enhance the operation of your 4100 audio communication system. These features may be custom programmed to meet your operational requirements. These Optional Functions are programmed by your local Simplex Branch Office: • Drill Switch – This option is used to play a drill message on manually-selected speaker circuits. When this switch is placed in the UP position, the Drill Message is played.

  • Page 44: How To Manually Initiate An Evacuation Signal

    During automatic alarm conditions, operate the microphone in the following manner. 1. Press the <ALARM SILENCE> key, if desired. This will turn OFF the alarm signals/messages. NOTE: To talk to all areas in alarm, go to Step ALARM 2. To talk to ALL areas: SILENCE Turn ON (UP) ALL SPEAKERS TALK Switch (Item A) and go to Step 3.

  • Page 45: How To Operate The Microphone During Non-Alarm Conditions

    HOW TO OPERATE THE MICROPHONE DURING NON-ALARM CONDITIONS (SEE FIGURE 15) During non-alarm conditions, operate the microphone in the following manner. 1. To talk to ALL areas: Turn ON (UP) ALL SPEAKERS TALK Switch (Item A) and go to Step 2. PHONE To talk to SPECIFIC areas: SPEAKERS...

  • Page 46: Dual Channel Audio Operations

    DUAL CHANNEL AUDIO OPERATIONS The following paragraphs discuss 4100 Dual Channel Audio Operations. AUDIO CONTROL LED/SWITCH MODULE FOR DUAL CHANNEL AUDIO The Audio Control Module contains eight switches and LEDs. The LED next to each switch illuminates to indicate that an operation controlled by that switch has been selected. Figure 17 shows a dual channel Audio Control LED/ Switch Module controlling the following functions: •...

  • Page 47: All Speakers Talk Switch

    The LED (green) will be ON when the LOCAL SPEAKER EVAC Switch is ON. OPTIONAL FUNCTIONS Optional Functions are available to enhance the operation of your 4100 audio communication system. These features may be custom programmed to meet your operational requirements. These Optional Functions are provided by your local Simplex Branch Office.

  • Page 48: Speaker Select Switches And Leds

    • All Speakers Minus Switch – When this switch is activated, all speaker circuits not switched to the EVAC channel and playing the Evacuation tone/message, are switched to the ALERT channel and turned ON. When this switch is turned ON while an ALERT message is still playing, the active speakers already switched to the ALERT channel will remain ON.

  • Page 49: How To Manually Initiate An Evacuation Signal

    During automatic alarm conditions, operate the microphone in the following manner. 1. Press the <ALARM SILENCE> key to turn OFF the alarm signals/ messages, if desired. NOTE: To talk to all areas in alarm, go to Step 3. 2. To talk to ALL areas: Turn ON (UP) ALL SPEAKERS TALK Switch (Item A) and go to Step 3.

  • Page 50: How To Operate The Microphone During Non-Alarm Conditions

    CENTER position (Items A and B). TRIPLE CHANNEL AUDIO OPERATIONS The following paragraphs discuss 4100 Triple Channel Audio Operations. AUDIO CONTROL LED/SWITCH MODULE FOR TRIPLE CHANNEL AUDIO The Audio Control Module contains eight switches and LEDs. The LED next to each switch illuminates to indicate that an operation controlled by that switch has been selected.

  • Page 51: All Speakers Evac Switch

    The LED (green) will be ON when the LOCAL SPEAKER EVAC Switch is ON. OPTIONAL FUNCTIONS Optional Functions are available to enhance the operation of your 4100 audio communication system. These features may be custom programmed to meet your operational requirements. These Optional Functions are provided by your local Simplex Branch Office: •...

  • Page 52: Speaker Select Switches And Leds

    • All Clear Switch – When programmed, this switch plays the All Clear Message on manually-selected speaker circuits. When this switch is placed in the UP position, the All Clear Message is played. When this switch is placed in the DOWN position, the All Clear Message is silenced. The associated LED tracks the ON position of the switch, if programmed.

  • Page 53: How To Operate The Microphone During Automatic Alarm Conditions

    HOW TO OPERATE THE MICROPHONE DURING AUTOMATIC ALARM CONDITIONS (SEE FIGURE 22) You can silence ALARM/EVAC signals by pressing the <ALARM SILENCE> key on the interface panel. This action stops the Voice Tone Generator (VTG). To use the microphone, you must manually select desired speaker circuits with the individual Speaker Select Switches, the ALL SPEAKERS TALK switch, or the optional ALL SPEAKERS MINUS switch.

  • Page 54: How To Operate The Microphone During Non-Alarm Conditions

    HOW TO OPERATE THE MICROPHONE DURING NON-ALARM CONDITIONS (SEE FIGURE 24) During non-alarm conditions, operate the microphone in the following manner. 1. To talk to ALL areas: Turn ON (UP) ALL SPEAKERS TALK Switch (Item A) and go to Step 2. ALARM SILENCE To talk to SPECIFIC areas:...

  • Page 55: Telephone Operation

    The phone switches are Phone Silence/ Active and Phone Circuit Select switches. The Phone Silence/Active switch is used to silence the 4100 panel tone-alert signal without connecting the remote phone. When this switch is in the UP position, its LED will turn ON. Phone Circuit Select Switches are used individually to connect remote phone circuits to the master phone talk line.

  • Page 56: Optional Feature Operation

    The LED associated with each switch and its operation depends on user requirements and system configuration. The color of the LED corresponds to the channel used to play the tone or message. The following optional features are available for the 4100: • Drill •...

  • Page 57: How To Operate Auxiliary Functions

    Switches: DOWN for Single Channel, CENTER for Dual Channel, and the bottom switch DOWN for Triple Channel (Item A). NOTE: The Master Phone does not need to be off the hook for a remote phone to be patched into the 4100 audio system. firealarmresources.com...

  • Page 58: How To Use The Manual Audio Override Switch

    HOW TO USE THE MANUAL AUDIO OVERRIDE SWITCH (SEE FIGURE 30) The MANUAL AUDIO OVERRIDE Switch is used to prevent further automatic alarm operation. Turning this switch ON stops additional tones/messages from SPEAKERS playing. However, if a tone/message is already playing EVAC SELECTIVE when this switch is activated, it will continue to play...

  • Page 59: Section 8 - Mapnet Ii  Addressable Interface

    TrueAlarm Sensors. A TrueAlarm™ sensor measures smoke density, but has no self-contained alarm set point. The alarm set point is programmed into the 4100. Thus, the alarm decision is made by the 4100, rather than by the sensor. Every four seconds, each smoke sensor transmits an output value based on its smoke chamber condition. The 4100 system maintains a current value, peak value, and an average value of each sensor’s output.

  • Page 60: Typical Truealarm  Status Report Screen

    Sensor data can be displayed on the interface panel LCD, on a remote CRT, or printed on a remote printer. Figure  32 shows a typical TrueAlarm status report as it might appear on a CRT screen. TIME: 2:40:46 custom title USER: 1 DATE: FRI 4 MAR 94 Port 1 Card 5 A...

  • Page 61: Generating Truealarm  Reports

    The Service Report shown in Figure 33, as well as the Status Report shown in Figure 32, can either be displayed on the remote CRT or captured permanently by using a remote printer. This information is available at the interface panel LCD by identifying the specific point of interest and reading one point at a time.

  • Page 62: Mapnet Ii  Point Addressing

    POINT ADDRESSING  Each MAPNET II device must have a point address in order to communicate with the 4100 system. These point addresses, along with their custom labels, are located in the Programmer’s Report. The Programmer’s Report shows  the address for each device, separated by hyphens. Hyphens must be used when entering a MAPNET II address ...

  • Page 63: Section 9 - Advanced Functions

    SECTION 9 ADVANCED FUNCTIONS INTRODUCTION When more involved operator functionality/control is required, simply open the interface panel “Access Door” to expose the additional keys which are available for advanced functions. Figure 34 shows the interface panel with the access door open and the advanced function keys displayed. FUNCTION KEYS CONTROL DISPLAY/ACTION...

  • Page 64: Function Keys

    Use of key functions can be controlled by assigning operator access levels to each key (see “Operator Access Levels” in this section and “Log In Procedure” in Section 1). FUNCTION KEYS Four function keys (<F1>, <F2>, <F3>, and <F4>) are located directly above the alphanumeric display (see Figure 36).

  • Page 65: How To Escape From Menu

    3. Press the <ENTER> key. The current time and date information is displayed along with instructions: Press <FUNC> to change time and date 18:15:43 MON 04-APR-94 4. Press the <FUNCTION> key. The cursor, current time and date, and function key definitions are displayed: F1=Left F2=Right F3=Inc F4=Dec 18:15:43 MON 04-APR-94...

  • Page 66: Point Control With The Function Key

    POINT CONTROL WITH THE FUNCTION KEY Many of the functions performed from the interface panel control point-specific data. The interface panel <FUNCTION> key can be used to control points. The <FUNCTION> key enables the user to view additional status information concerning the point currently displayed on the alphanumeric display.

  • Page 67: Function Key

    DISPLAY/ACTION FUNCTION MENU LAMP PREVIOUS TEST NEXT ENABLE OFF/ DISABLE DISARM DISPLAY AUTO TIME‘ Figure 37 Display/Action Keys The following keys are DISPLAY keys: • FUNCTION • MENU • PREVIOUS • LAMP TEST • NEXT The purpose of each DISPLAY key is described in the following paragraphs. FUNCTION KEY The <FUNCTION>...

  • Page 68: Menu Key

    MENU KEY The Main Menu provides operations which are separate from those used for fire alarm conditions. These non-critical functions are selected with the <MENU> key. The <NEXT> and <PREVIOUS> keys are used to scroll through the menu options. The <ENTER> key selects the displayed option. The <MENU> key calls up the Main Menu Option List and displays the first option on the list.

  • Page 69: Action Keys

    ACTION KEYS There are six action keys on the DISPLAY/ACTION keypad (see Figure 37): • Disable (Refer to Section 1, “How to Disable a Point”) • Enable (Refer to Section 10, “How to Enable a Disabled Point”) • Off (Refer to Section 10, “How to Turn a Point OFF”) •...
  • Page 70 The zone number for the selected prefix can now be entered. The input must be terminated with an <ENTER> key press. If the identifier represents a valid point in the system, the point is displayed as shown in the example below (20 was entered for this example).

  • Page 71: How To Display The Sensitivity Of A Truealarm  Sensor

    Use the following procedure to determine the sensitivity of a TrueAlarm Sensor. 1. Using the 4100 Programmer’s Report, locate the address of the desired sensor.  NOTE: The sensor address is in the format “C-DDD”, where “C” is the MAPNET II channel (1 through 9, and 0), and “DDD”...
  • Page 72 Status displays 8 through 11 are explained below. The displays reveal the following information: sensor’s sensitivity as programmed in the 4100 panel; average sensor value and sensor value needed to cause an alarm; current sensor value; and highest (peak) sensor value to date.

  • Page 73: Additional Keys

    NET/– (Network/Hyphen) The NET function of the <NET/-> key is used to address other network nodes when the 4100 is used as a network node; the hyphen (-) function of the key is used to set limits/boundaries for card address, point numbers, and subpoint numbers during keypad entries.

  • Page 74: Viewing Power Supply/Charger Voltage And Current Readings

    VIEWING POWER SUPPLY/CHARGER VOLTAGE AND CURRENT READINGS To view power supply voltage and current readings, perform the following procedure. 1. Press the <MENU> key on the DISPLAY/ACTION keypad. Then press the <NEXT> key six times. • The alphanumeric display reads: Press <NEXT>...

  • Page 75: Selecting Additional Lists

    (11), including the hyphens, excluding the <ENTER> key. SELECTING ADDITIONAL LISTS When an abnormal condition occurs, a record of the event is placed in one of two logs generated by the 4100 system, depending on the nature of the condition. These logs are: •...

  • Page 76: Power-Up Sequence

    LED is illuminated before connecting the battery power harness. IMPORTANT To power up the 4100 system, apply 120 VAC to the system. Wait until the GREEN POWER ON LED has illuminated. Then connect the battery power harness.

  • Page 77: Section 10 - System Test Procedures

    The “LAMP TEST” push button on the interface panel is used to determine local lamp failures within the system. Lamps on the 4100 operator interface panel illuminate along with the five function and acknowledge LEDs and the local annunciator LEDs (if installed). All segments on the LCD also change to squares. Perform the following procedures to determine lamp failures.

  • Page 78: Zone Coding Option

     The system is default-programmed to allow the Walk Test to be performed without sounding audible signals. (See   “Silent Walk Test and “Sig/No Sig”.) The Walk Test will not activate any point which is disabled. Therefore, you have the ability to manually exclude any point from the test. (See How to Disable a Point.) ...

  • Page 79: Walk Test  Operation

    OPERATION   When the 4100 system is placed in Walk Test mode, any zone in the active Walk Test group(s) can be tested in any order. If zone coding is enabled, there is an advantage in testing all devices within one zone before going on to the next zone.

  • Page 80: Abort Audible And Delay On Reactivation

    ABORT AUDIBLE AND DELAY ON REACTIVATION  Whenever a Walk Test group is aborted, either manually or automatically, the control list sounds the abort signal “TESTING COMPLETED” (or 0-0-0) to indicate that the group is going back into service. If a control point in the list is already active, possibly because another alarm has come in, the “TESTING COMPLETED”...

  • Page 81: Delay Before Reset

    It can be edited using the tag list feature  of the 4100 Programming Unit. An empty list signifies that a Walk Test group is not used. The programmer has the option of changing the label of this point list so that it is more meaningful for panel operation.

  • Page 82: Trouble Audible

    4. Enter the required passcode. (The actual passcode is not contained in any documentation. Call your Local Simplex Branch Office to obtain the required passcode.) 5. Press the <ENTER> key. If the passcode is correct, the following message is shown.

  • Page 83: How To Enter Walk Test Mode

    NOTE: X equals 1 through 4. If access level 4 is entered, a trouble condition occurs in the system which must be acknowledged.  HOW TO ENTER Walk Test MODE  Once the passcode has been entered, you may enter the Walk Test mode by performing the following procedures.

  • Page 84: How To Exit Walk Test  Mode

    8. If Access Level 4 was entered, trouble will continue to exist in the system. Access level 4 is normally used by Simplex personnel and additional steps must be performed. Call Simplex to restore the system. 9. Inform required personnel when system testing is completed.

  • Page 85: How To Turn A Point On

    1. Ensure the point to be turned OFF is shown on the alphanumeric display. A typical point (SIG2) is shown below. MASTER SIGNAL POINT 2, SIG2 SIGNAL CIRCUIT 2. Press the <OFF> key. A typical display is shown below. Press <ENTER> to force OFF SIGNAL CIRCUIT: SIG2 3.

  • Page 86: How To Return A Point To Auto

    2. Press the <ON> key. A typical display is shown below. Press <ENTER> to force ON SIGNAL CIRCUIT: SIG2 3. Press the <ENTER> key. A typical display is shown below. MASTER SIGNAL POINT 2, SIG2 SIGNAL CIRCUIT 4. Press the <CLR> key. The display shows the following message. **TROUBLE** Press <ACK>...

  • Page 87: How To Enable A Disabled Point

    4. Press the <CLR> key. The display shows the following message. SYSTEM IS NORMAL 9:27:40 MON 04-APR-94 HOW TO ENABLE A DISABLED POINT If a device was disabled for any reason and has been restored, you can enable the point. This point must first be identified to the system.

  • Page 88: What To Do In Case Of System Malfunction

    5. Press the <CLR> key to exit. This will allow the panel to show the Time and Date. WHAT TO DO IN CASE OF SYSTEM MALFUNCTION CALL YOUR LOCAL SIMPLEX BRANCH OFFICE, WHICH IS LISTED IN THE YELLOW PAGES, FOR ALL MALFUNCTIONS, OR IF YOU WOULD LIKE A QUALIFIED SIMPLEX TECHNICIAN TO ASSIST YOU WITH INSTALLATION, TESTING, AND TROUBLESHOOTING THE SYSTEM.

  • Page 89: Appendix Abbreviated Operator Interface Procedures

    NOTE: Various functions may be passcode protected to prevent access by unauthorized personnel. Passcodes are provided to the user during system installation. To change or receive additional information concerning your passcodes, contact your local Simplex Branch Office. To Log In, perform the following procedure.

  • Page 90: Access Level Log In Procedure From The Crt

    NOTE: Various functions may be passcode protected to prevent access by unauthorized personnel. Passcodes are provided to the user during system installation. To change or receive additional information concerning your passcodes, contact your local Simplex Branch Office. To Log In, perform the following procedure.

  • Page 91: Access Level Log Out Procedure From The Crt

    ACCESS LEVEL LOG OUT PROCEDURE FROM THE CRT To Log Out from the CRT, perform the following procedure. 1. Return to the Main Menu by pressing the <F18> key. 2. With the Main Menu displayed on the CRT, press the <PF4> key on the keyboard. 3.

  • Page 92: Controlling System Points

    Through the use of a system Pseudo Point (P133), all new peak values per sensor can be stored in the Historical Trouble Log and printed on the 4100 system printer. Printing of peak values is done at the time the value is received at the operator interface panel.

  • Page 93: Viewing The Historical Alarm And Trouble Logs

    To clear an Analog Sensor Peak Value, perform the following procedure. 1. Press the <MAP 6> key on the ENTRY keypad.  • The display now prompts you for the MAPNET II channel and device number. 2. Using the ENTRY keypad, press the appropriate numeric key for the sensor’s channel (1 through 9, or 0), the hyphen <->...

  • Page 94: Viewing Abnormal System Conditions With The Display Time Key

    8. When finished, press the <CLR> key on the ENTRY keypad to escape from the Main Menu. VIEWING ABNORMAL SYSTEM CONDITIONS WITH THE DISPLAY TIME KEY NOTE: The system must have an abnormal condition showing on the alphanumeric display before the Display Time Key can be used.

  • Page 95: Generating Truealarm  Reports

    2. Press the <ENTER> key on the ENTRY keypad. Then press the <NEXT> key as many times as is required for the upper line on the display to show the desired card number. 3. Press the <ENTER> key. Then, using the <NEXT> or <PREVIOUS> key to scroll, check voltage/current readings on the Power Supply/Charger card.
  • Page 96 firealarmresources.com...
