3.2.2.2.1 Digital Input Data Setup

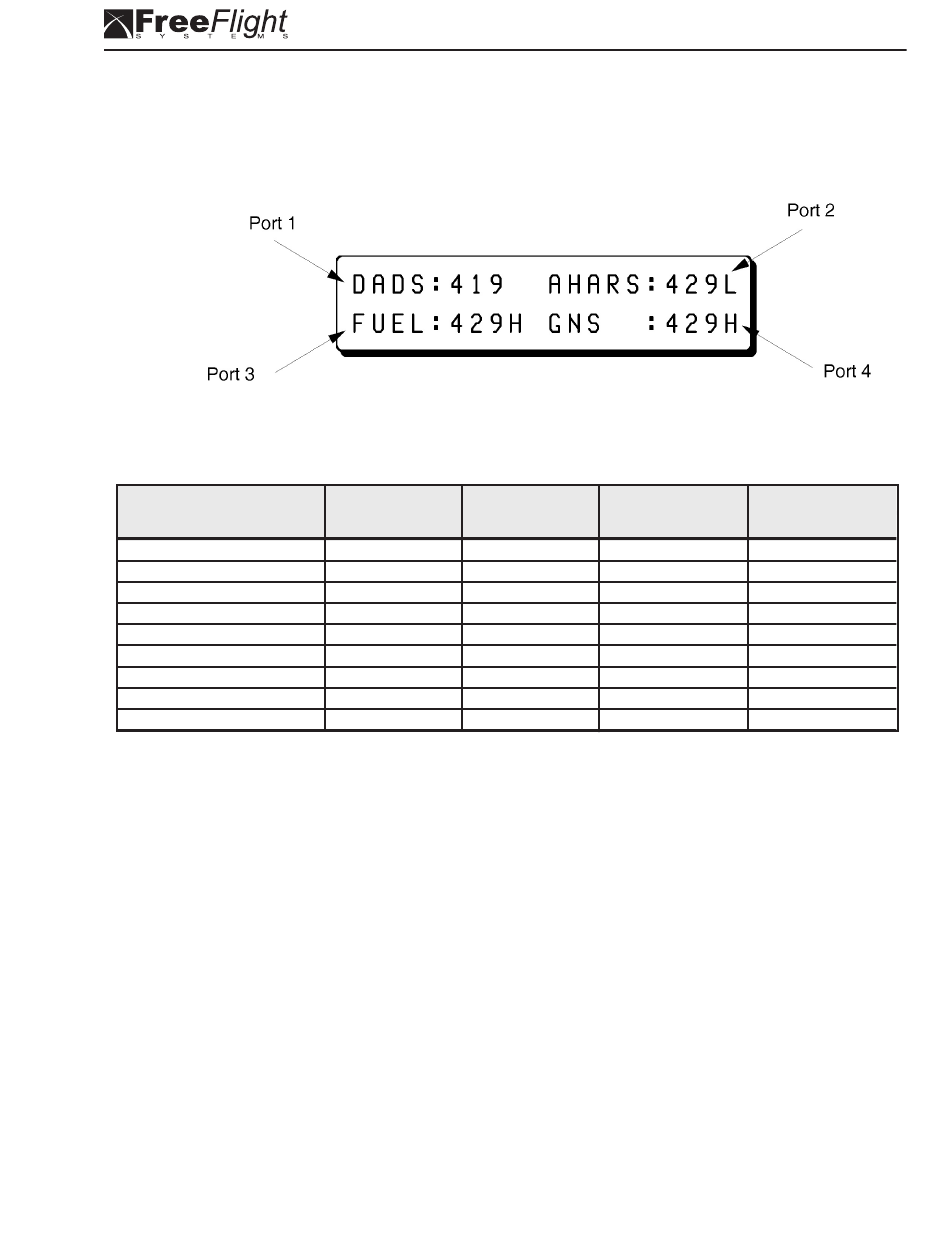

Data type and speed for each port can be selected during installation setup. An example of the Digital Data setup
page is shown below.
See Table 3-2 for Receiver Port Options for software version 241B and earlier. See Table 3-3 for Receiver Port
Options for software versions 241C and later.
ARINC Format
419 DADS
429 Lo DADS
429 Hi DADS
429 Lo FUEL
429 Hi FUEL
429 Lo AHARS
429 Hi AHARS
429 Lo RADAR
429 Hi RADAR

ARINC 419/429 Receiver Port Options (241B and earlier software versions)

Table 3-2 Notes:
1. Data on Ports 1 and 2 must have the same speed setting.
2. The following Port 1 and 2 combinations are available on line 1 of the display based on type and speed
selection:
DADS: 419
DADS: 429L
DADS: 429H
3. Data on Ports 3 and 4 must have the same speed setting.
4. The following Port 3 and 4 combinations are available on line 2 of the display based on type and speed
selection:
FUEL: 429L
FUEL: 429H
Revision E
May 31, 2006
FreeFlight 2101 I/O Approach Plus GPS Navigation System
Port 1 Port 2
J2 – 9 and 15 J2 – 60 and 59
X
X
X
Table 3-2
AHARS: 429L
AHARS: 429L
AHARS: 429H
RADAR: 429L
RADAR: 429H
Port 3
J2 – 61 and 62
X
X
X
X
Port 4
J2 – 64 and 63
X
X
Page 3-5
