Notes:
1.
Installations utilizing this antenna are limited to aircraft not equipped with Satellite Communications
equipment.
2.
Recommended mounting screws are 8-32 UNF stainless steel (4 pl.)
Revision E
May 31, 2006

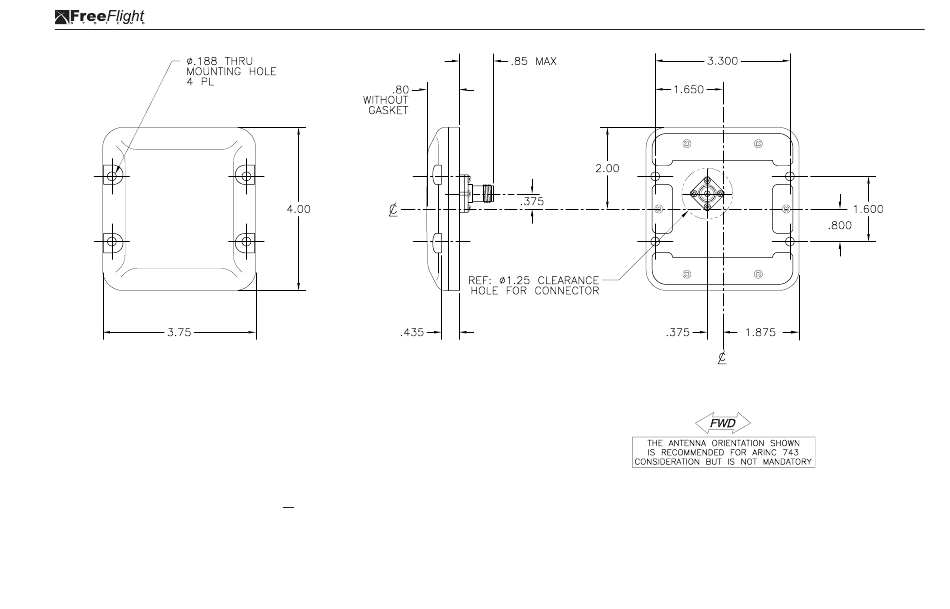

Figure 2-5 GPS Antenna (P/N 16248-11) Installation Drawing (alternate)
FreeFlight 2101 I/O Approach GPS Navigation System
Page 2-13/14
