Typical System Interconnection - FreeFlight 2101 I/O Approach Plus Installation And Checkout Manual

Revision E
May 31, 2006

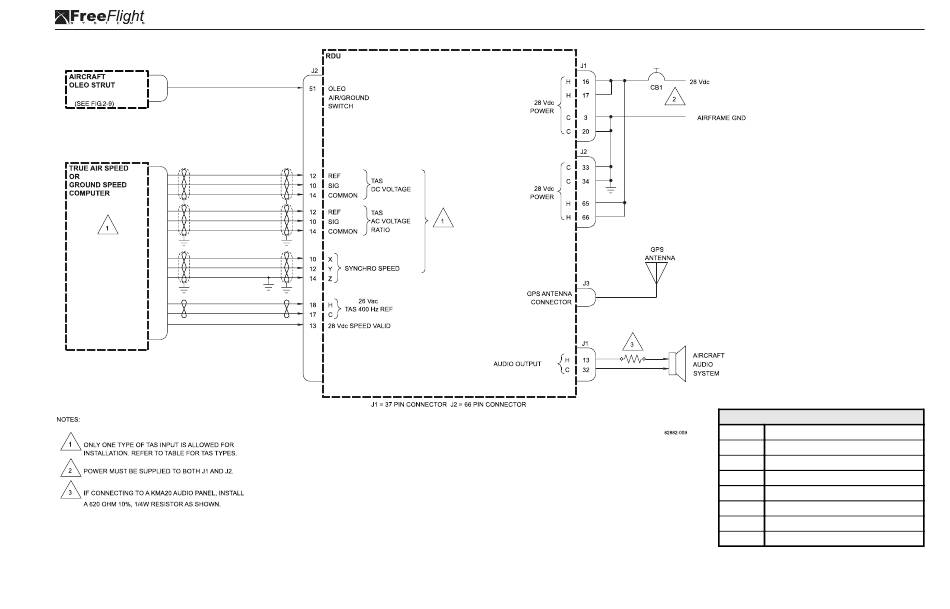

Figure 2-11 Typical System Interconnection (sheet 1 of 3)
FreeFlight 2101 I/O Approach Plus GPS Navigation System
TAS Type (See Note 1)
Serial Shadin ADC-200
Digital Digital 429 DADS
565 AC hi Voltage Ratio ARINC 565 AC, high speed
565 AC lo Voltage Ratio ARINC 565 AC, low speed
565 DC Voltage Ratio ARINC 565 DC
545 ARINC 545 Synchro input
KIFIS A KIFIS A Synchro input
KIFIS B KIFIS B Synchro input
