5 - 2 2

WIRING TO LOCAL AREA NETWORKS

The "LAN1" and "LAN2" connectors have standard Ethernet pin
assignments.

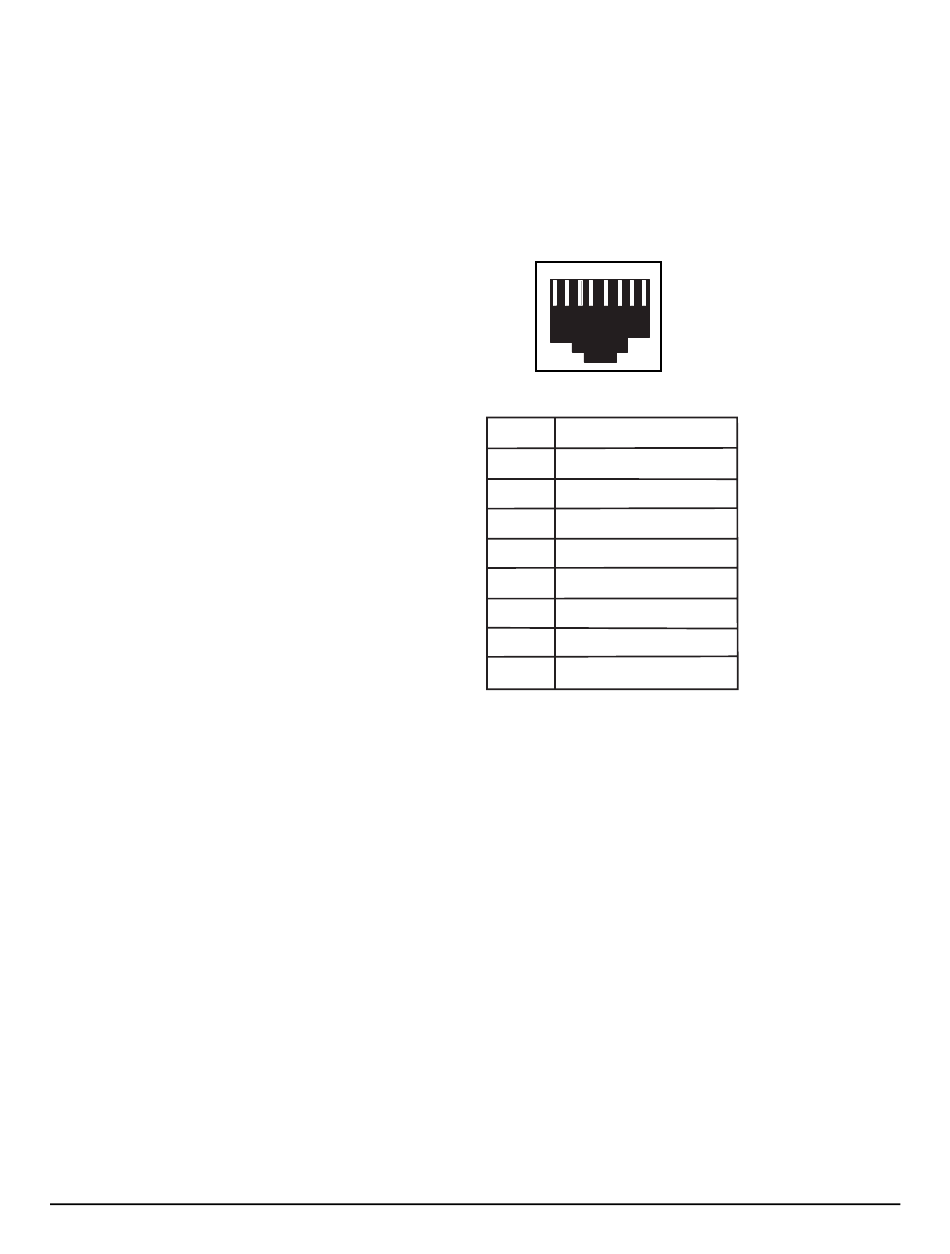

Figure 5-16: Pin Assignments for LAN1 and LAN2 Connectors
LAN1 and LAN2
Ethernet RJ-45 Connectors
8 7 6 5 4 3 2 1
PIN
FUNCTION
1
Transmit data +
2
Transmit data –
3
Receive data +
4
Unused
5
Unused
6
Receive data –
7
Unused
Unused
8
Vitec Group Communications
Eclipse Median Instruction Manual
