Eclipse Median Instruction Manual

Single-Pair Digital

Single-pair digital wiring is accomplished with double-shielded 24 AWG
conductor CAT-6E enhanced STP cable. Pair 1 transmits and receives
multiplexed digital and analog between the matrix and the panel.
Note: Ensure that the "select" switch on the panel rear is in the
correct position for the intended use.
Matrix Frame End
No Connec tion (NC)
No Connec tion (NC)
No Connec tion (NC)
Multiplexed Data /Audio
Multiplexed Data /Audio
No Connec tion (NC)
No Connec tion (NC)
No Connec tion (NC)

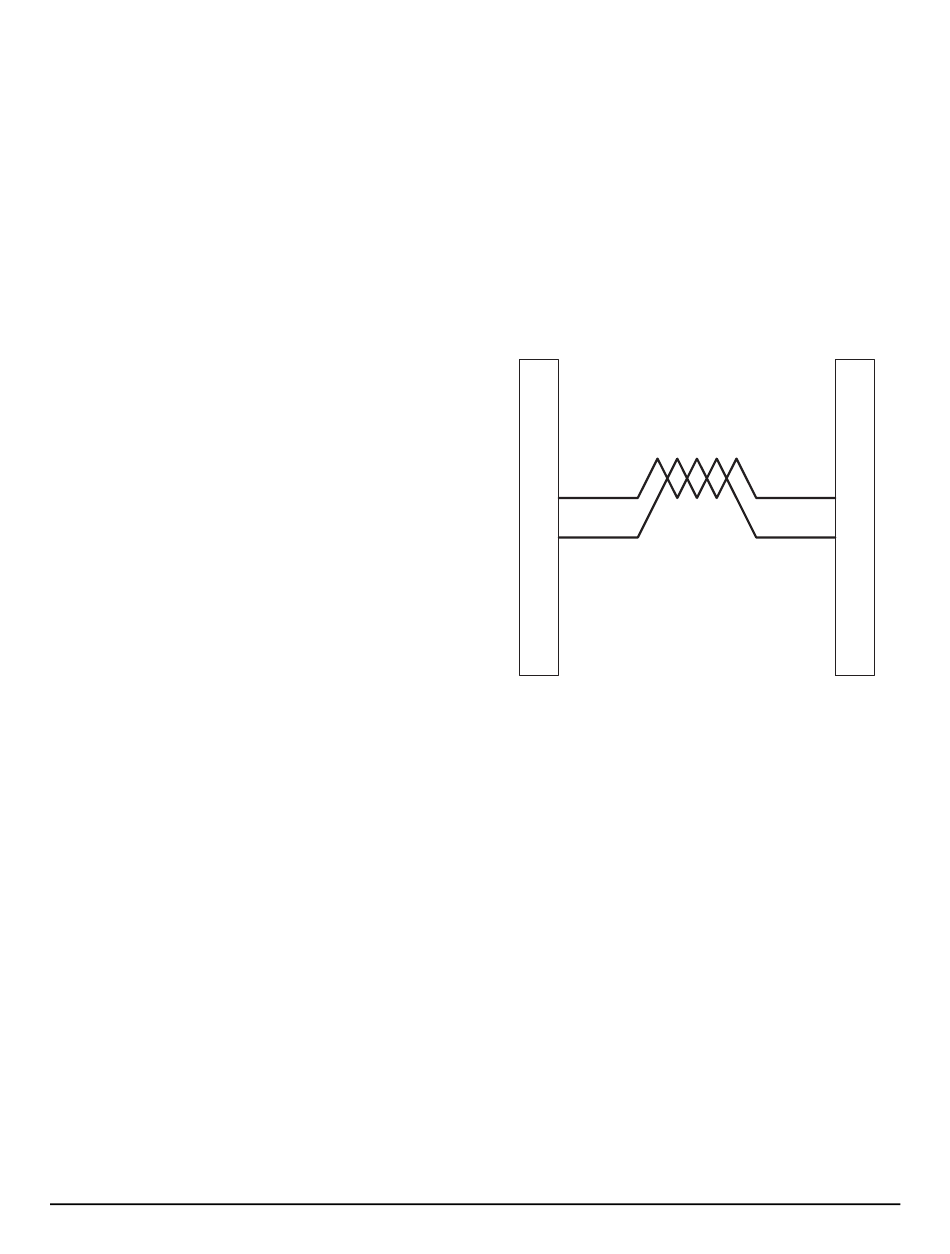

Figure 5-6: Wiring from the Matrix to a Digital Panel Using RJ-45
Note: This wiring diagram refers to the Digi-2 unit only.
ATT -T568B (Modular Jumpers Wired One to One)
Pai r 2
1
2
Pai r 1
3
4
Pai r 3
5
6
Pai r 4
7
8
Panel End
1
2
3
4
5
6
7
8
5 - 1 3
