Vitec Group Communications

Eclipse Median Instruction Manual

are connected using standard straight-through CAT5 cables rather

than crossover CAT5 cables.

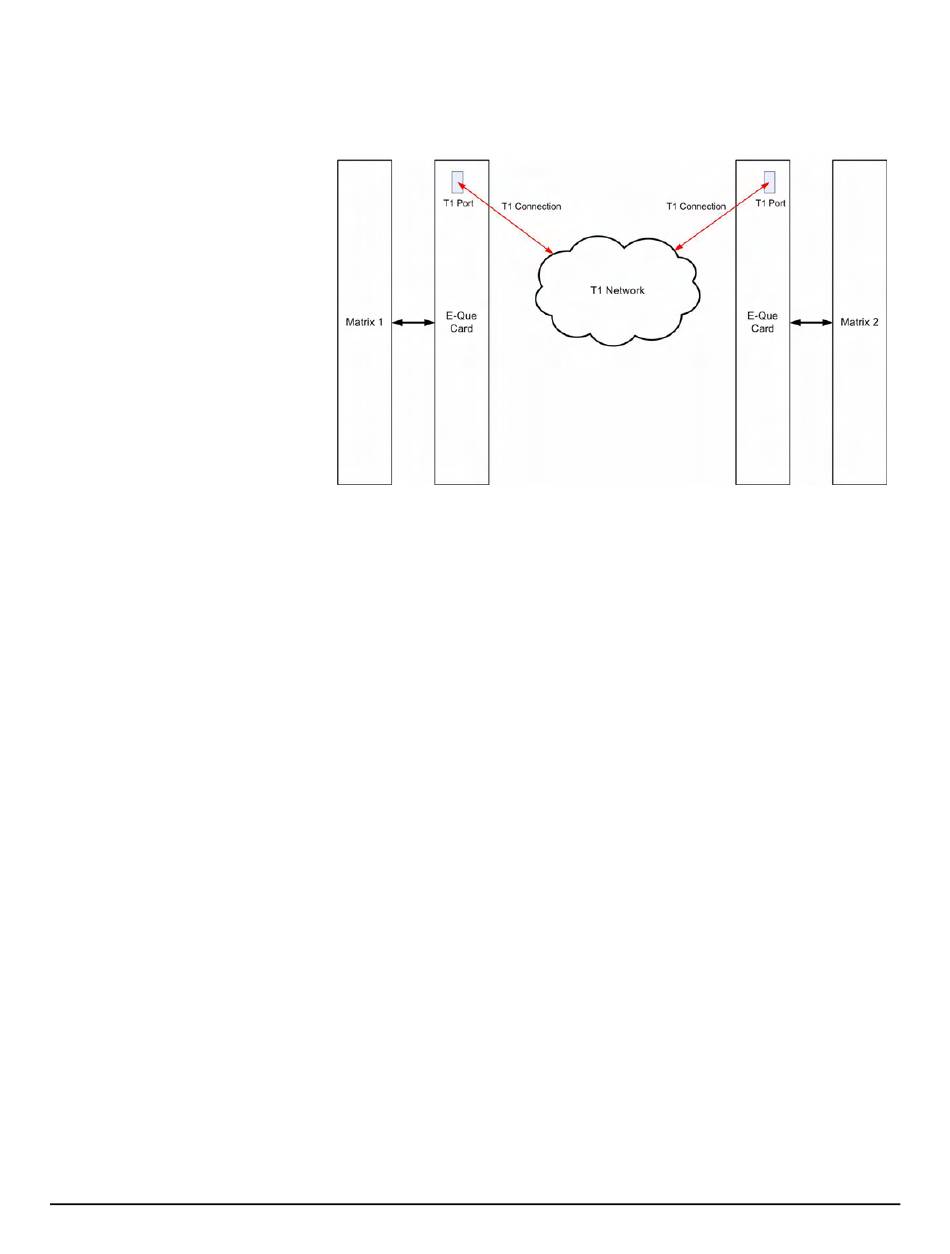

Figure 4-10: T1 Trunking via an T1 Network

TRUNKING FAILOVER

Where the E1/T1 trunking has been configured with redundant trunks

audio will be switched from the primary trunk to the backup trunk when

a failure is detected. When failover occurs from primary to backup

there will be a three second audio break on any route running over the

trunk. If the trunk routing is later switched back from the backup trunk

to the primary trunk there will be no loss of audio.

4 - 1 3
