Vitec Group Communications
Eclipse Median Instruction Manual

+3.3-Volt Power Supply Light

The matrix's +3.3-volt power supply provides electric current to this
green light. When lit, the light indicates that the +3.3-volt supply is
present and supplying electric current to the card.
1
RESET BUTTON
RESET
2
POWER SUPPLY LIGHTS
When lit, +12 V power supply is on
+12V
When lit, –12 V power supply is on
-12V
When lit, +5 V power supply is on
+5V
When lit, +3.3 V power supply is on
+3.3V
ACTIVE LIGHTS
3
16 yellow lights, one per port
ACTIVE VOX
When on, light indicates:
1
(1) There is a device connected to the port.
(2) Communications are running properly between the port and the card.
2
3
4
4
VOX LIGHTS
5
16 green lights, one per port
6
When on, light indicates:
7
(1) A VOX threshold for the port is programmed in the system software.
(2) Audio input on the port has exceeded the VOX threshold.
8
9
10
11
12
13
14
15
16
FRAME DATA LIGHT
5
The green "frame data" light illuminates to indicate successful communication
between the port card and the CPU card.
Frame
Status
Data
6
STATUS LIGHT
The red "status" light illuminates to indicate a failure in communication
between the port card and the CPU card.

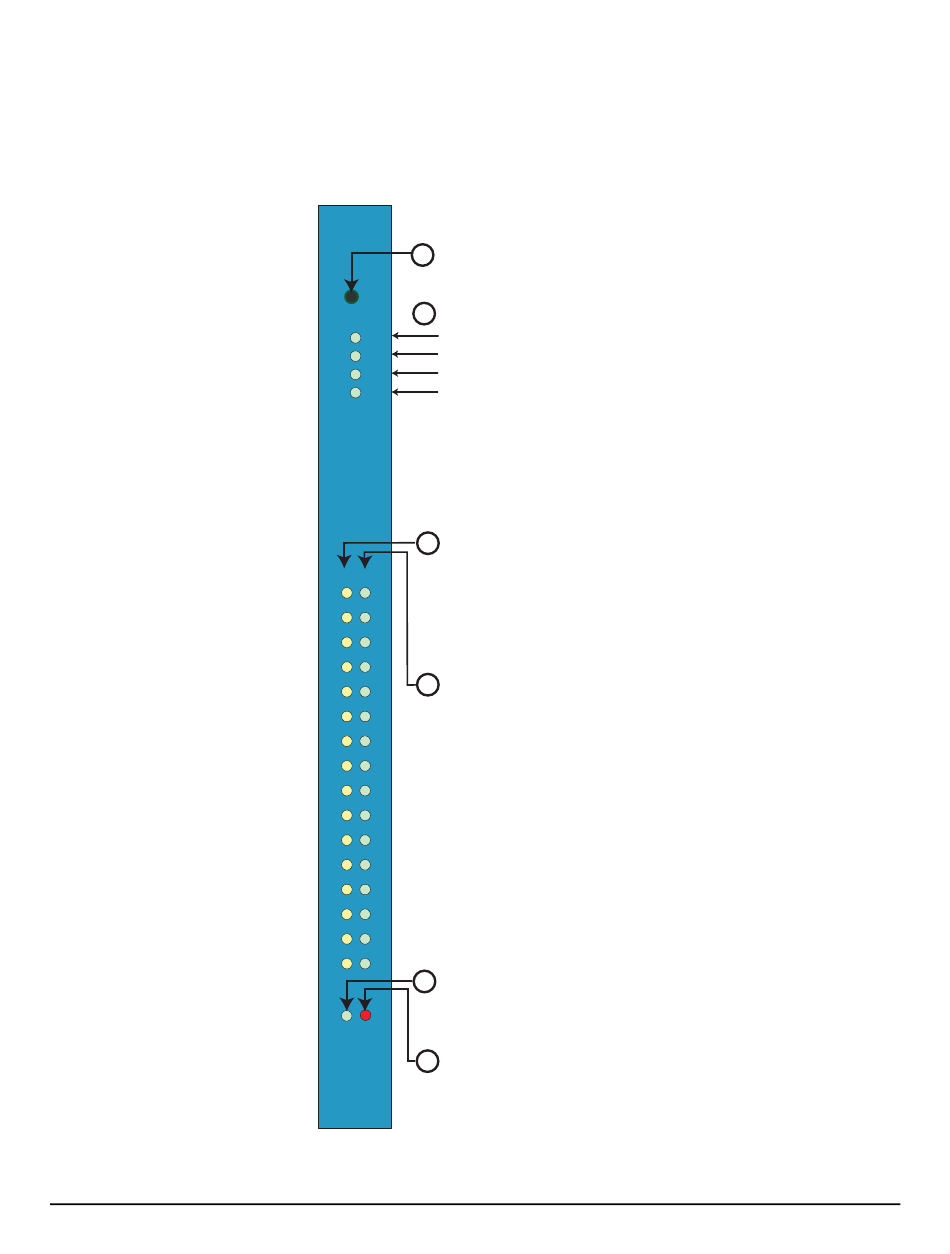

Figure 2-3: Port Card's Lights and Controls
2 - 9
