Eclipse Median Instruction Manual
1 RESET BUTTON
RESET
2 POWER SUPPLY LIGHTS
When lit, +5-volt power supply is on
+5V
When lit, +3.3-volt power supply is on
+3.3V
3 DOT MATRIX LIGHTS
Displays the number of the currently selected software configuration
4 STATUS LIGHTS
When flashing, software is running
OK
Blinks when two CPU cards are exchanging information
IPC
When lit, this CPU card is acting as master card
MASTER
Blinks when LAN A is connected and running
LAN A
Blinks when LAN B is connected and running
LAN B
Blinks when multiple matrices are connected and synchronized
IN SYNC
Reserved for future use
SI
5 CONFIGURATION ("CONFIG") BUTTON
CONFIG
6
DEFAULT IP ADDRESS RESET BUTTON
ENG
Press with full reset and reset to set default IP address
FULL RESET BUTTON
7
RESET FULL
When held through a reset cycle, results in a full system reset.
When pressed with the ENG button and reset button sets the
default IP address

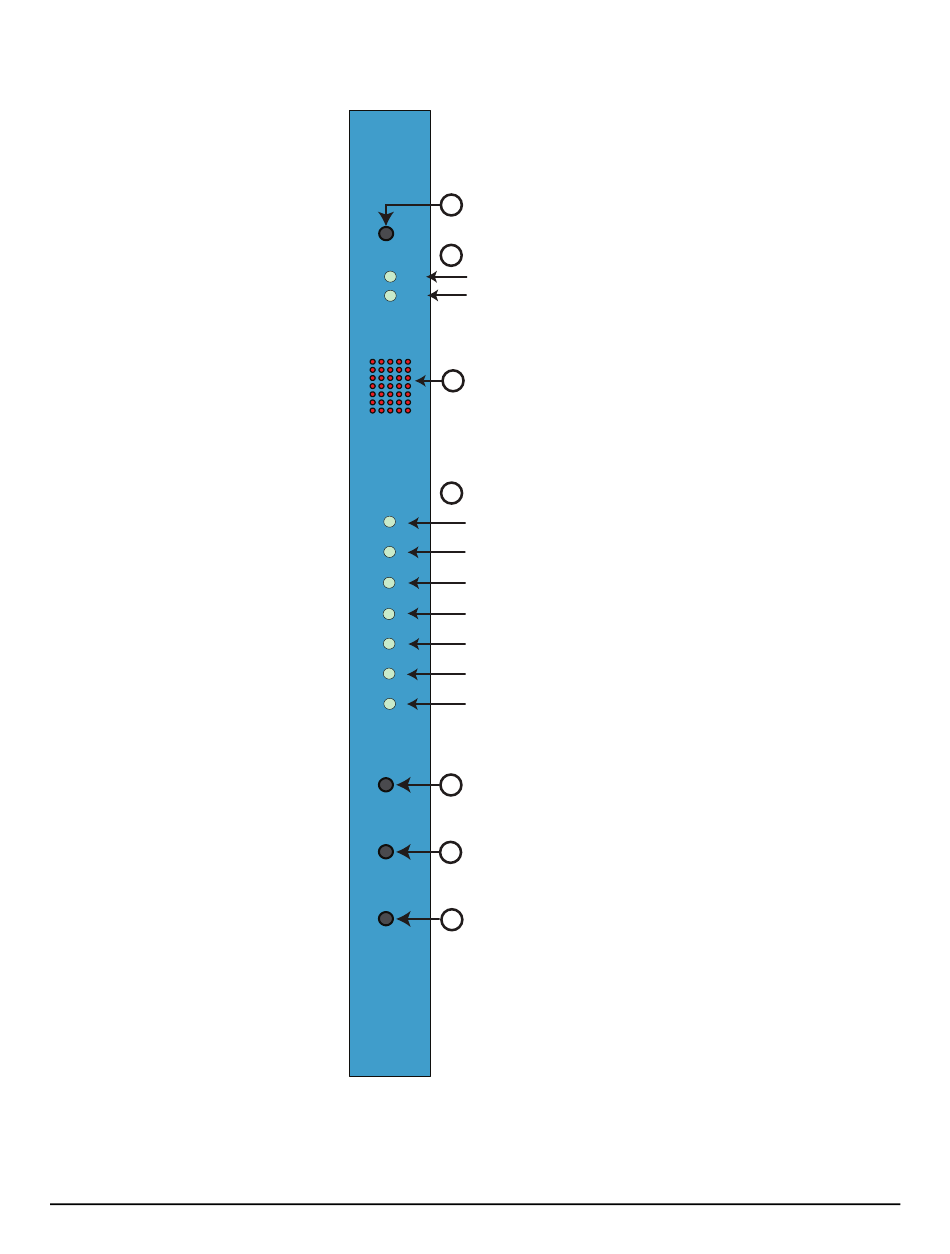

Figure 2-2: CPU Card's Front Panel Lights and Controls
2 - 5
