Eclipse Median Instruction Manual

Frame Data LED

6
The red "status" light illuminates to indicate a failure in communication
between the fiber card and the CPU card.
FIBER CARD REAR PANEL LIGHTS AND
CONNECTIONS
The fiber card rear card contains a single power supply indicator LED
and two fiber connectors.
+3.3V
TXVRB
Transceiver
Lasers
RX
TX
TXVRA

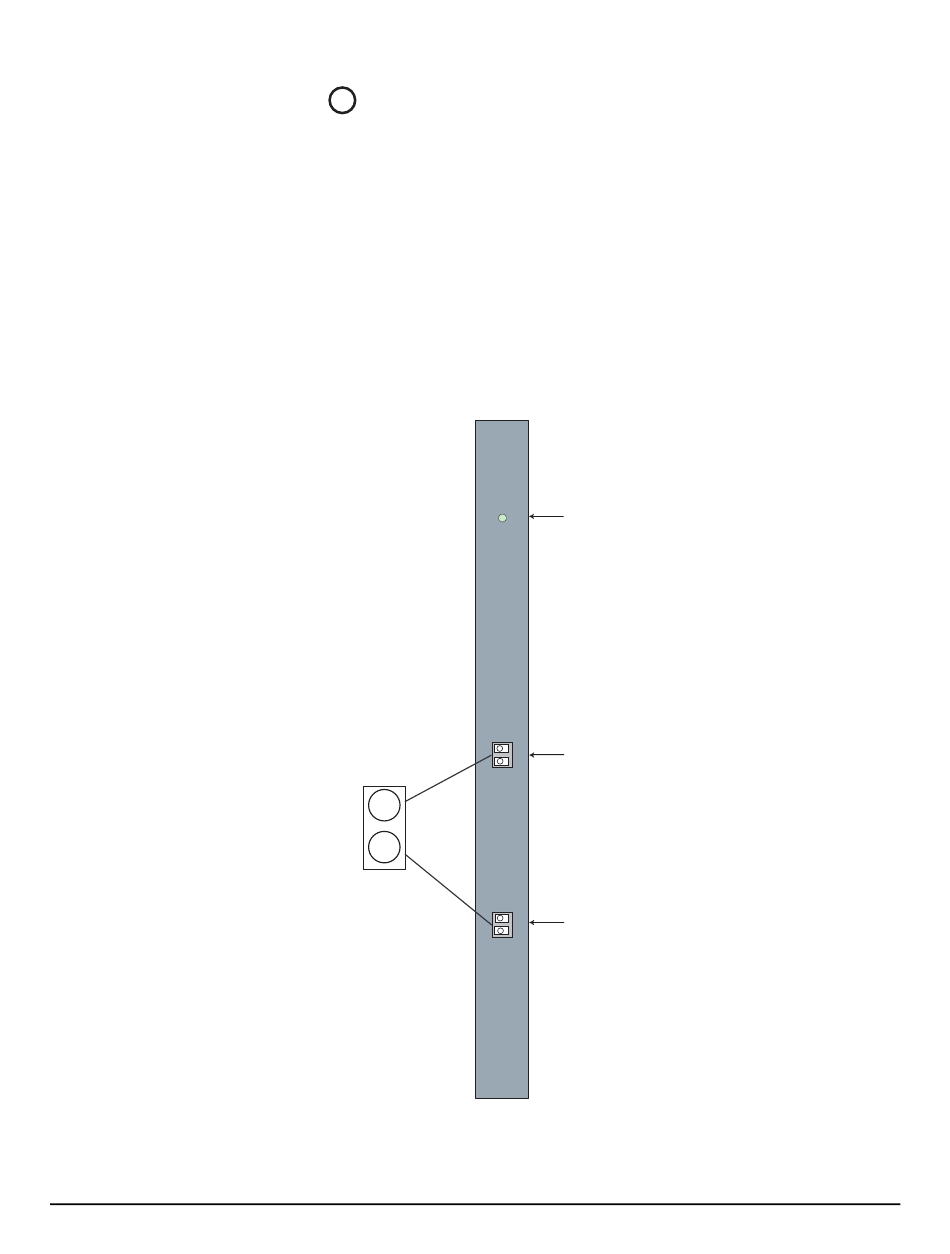

Figure 3-2: Rear Fiber Card
Class 1 Laser Product
When lit, +3.3 V power supply is on
Secondary Fiber Port
Primary and Secondary
Fiber ports are reversed
with respect to the front
panel indicators.
Take care when unplugging
the cables to unplug the
correct cable.
Primary Fiber Port
NOTE
3 - 5
