Vitec Group Communications
Eclipse Median Instruction Manual
1
RESET BUTTON
RESET
2
POWER SUPPLY LIGHTS
When lit, +3.3 V power supply is on
+3.3V

STATUS LIGHTS

3
8 yellow lights, one per port
STATUS When on, light indicates:
(1) There is a device connected to the port.
1 2
(2) Communications are running properly
between the port and the card.
3
4
5 6
7 8
LAN DATA LIGHT
4
The green "LAN DATA" light illuminates
LAN
to indicate data is passing through the
DATA
ethernet port
LINK
LAN LINK LIGHT
5
The amber "LINK" light illuminates to
indicate a connection on the LAN port.

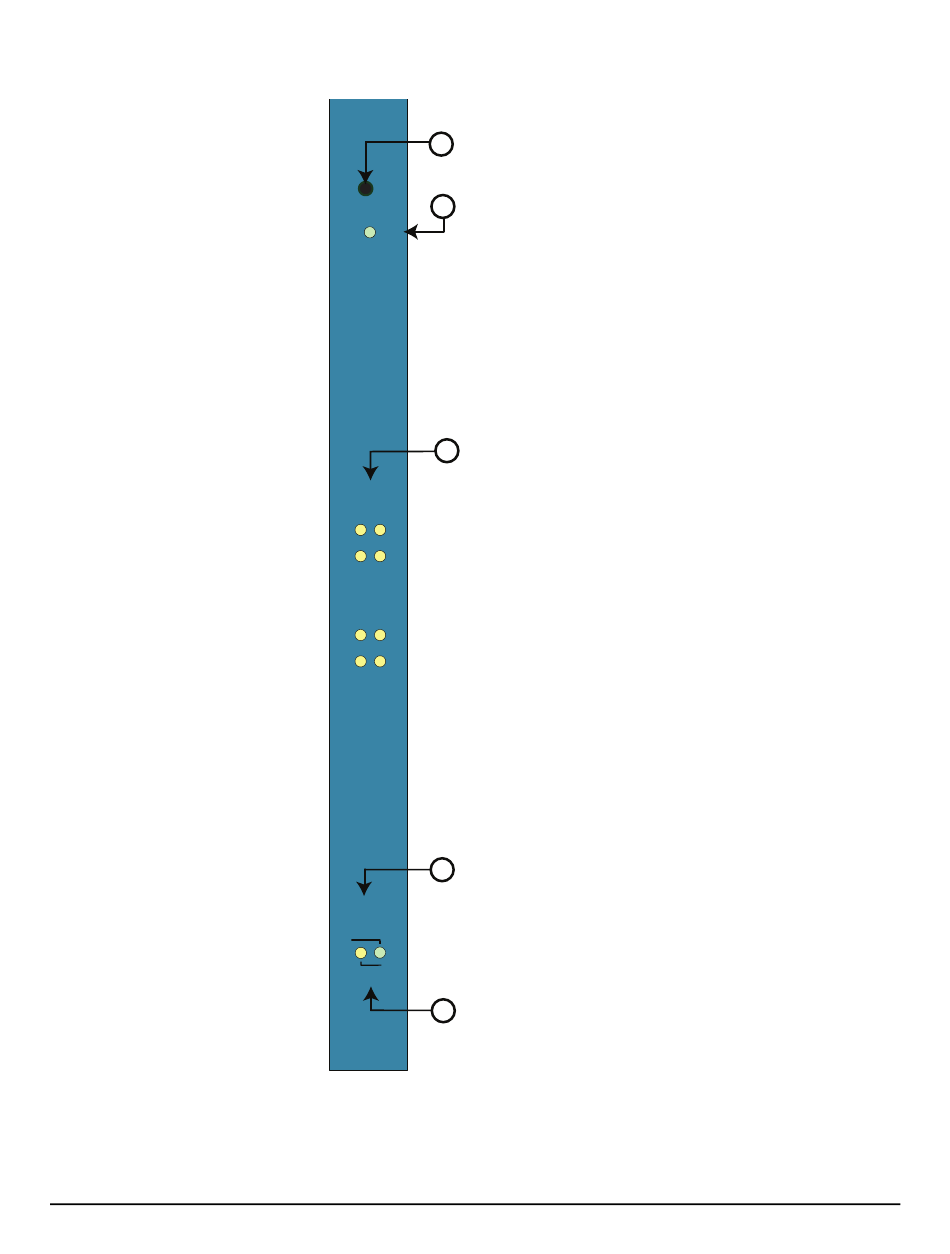

Figure 4-1: Front E-Que Card
4 - 3
