RS-702 & RS-703
BELTPACKS
QUICK
REFERENCE
GUIDE
www.clearcom.com
HME# 399G054
Rev C 1/29/14
RS-702 Controls, LEDs and Connectors
1
2
3
4
5
6
12
13
14
RS-703 Controls, LEDs and Connectors
1
2
3
4
5
6
12
13
14
NOTES:

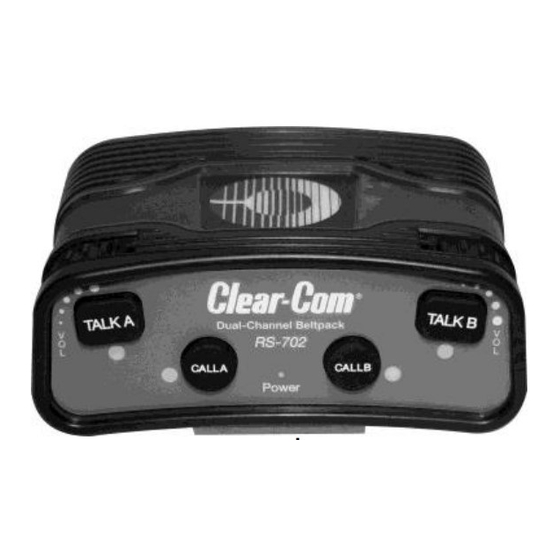

RS-702
Dual-Channel Beltpack
Top view
Bottom view
1 Ch-A volume control –
2 Ch-A talk button –
Press and hold while talking, or tap to latch on
3 Ch-A talk LED –
11
4 Ch-A call LED –
5 Ch-A call button –
6 Power LED –
7 Ch-B call button –
7
8
9 10
8 Ch-B call LED –
9 Ch-B talk LED –
15
10 Ch-B talk button –
Press and hold while talking, or tap to latch on
11 Ch-B volume control –
12 Intercom cable receptacle – 6-pin XLR female
13 Intercom cable loop-thru – 6-pin XLR male
14 Program audio level control –
15 Headset cable receptacle –
1 Ch-A volume control –
2 Ch-A talk button –
Press and hold while talking, or tap to latch on
11
3 Ch-A talk LED –
4 Ch-A call LED –
5 Ch-A call button –
6 Power LED –
7 Ch-B call button –
8 Ch-B call LED –
7
8
9 10
9 Ch-B talk LED –
10 Ch-B talk button –
15
16
Press and hold while talking, or tap to latch on
11 Ch-B volume control –
12 Intercom cable receptacle –
13 Intercom cable loop-thru –
14 Program audio level control –
15 Program audio input –
Note: Does not work with stereo audio
16 Headset cable receptacle –
RS-703
TW Dual-Channel Beltpack
Top view
Bottom view
adjusts channel A volume level
talk to all on intercom channel A
lights when intercom channel A talk is active
lights when channel A call is active
activates call on intercom channel A
lit when beltpack power is on
activates call on intercom channel B
lights when channel B call is active
lights when intercom channel B talk is active
talk to all on intercom channel B
adjusts channel B volume level
adjusts program audio input level
4-pin XLR male
adjusts channel A volume level
talk to all on intercom channel A
lights when intercom channel A talk is active
lights when channel A call is active
activates call on intercom channel A
lit when beltpack power is on
activates call on intercom channel B
lights when channel B call is active
lights when intercom channel B talk is active
talk to all on intercom channel B
adjusts channel B volume level
3-pin XLR female
3-pin XLR male
adjusts program audio input level
3.5mm balanced input jack
4-pin XLR male
