Figure 5-5 Wiring From The Matrix To An Analog Panel Using - Clear-Com ECLIPSE MEDIAN MATRIX Instruction Manual

5 - 1 2
.
RJ-45 CONNECTOR
AT MATRIX PORT
8 7 6 5 4 3 2 1
Matrix Frame RJ-45 Pin Numbers
RS-422 Input +
1
(into Matrix)
RS-422 Input –
2
(into Matrix)
Audio Input +
3
(into Matrix)
Audio Output +
4
(from Matrix)
Audio Output –
5
(from Matrix)
6
Audio Input –
(into Matrix)
RS-422 Output + 7
(from Matrix)
RS-422 Output –
8
(from Matrix)
Pair 1 Audio output from Matrix to panel
Pair 2 RS-422 data input from panel to Matrix
Pair 3 Audio input from panel to Matrix
Pair 4 RS-422 data output from Matrix to panel

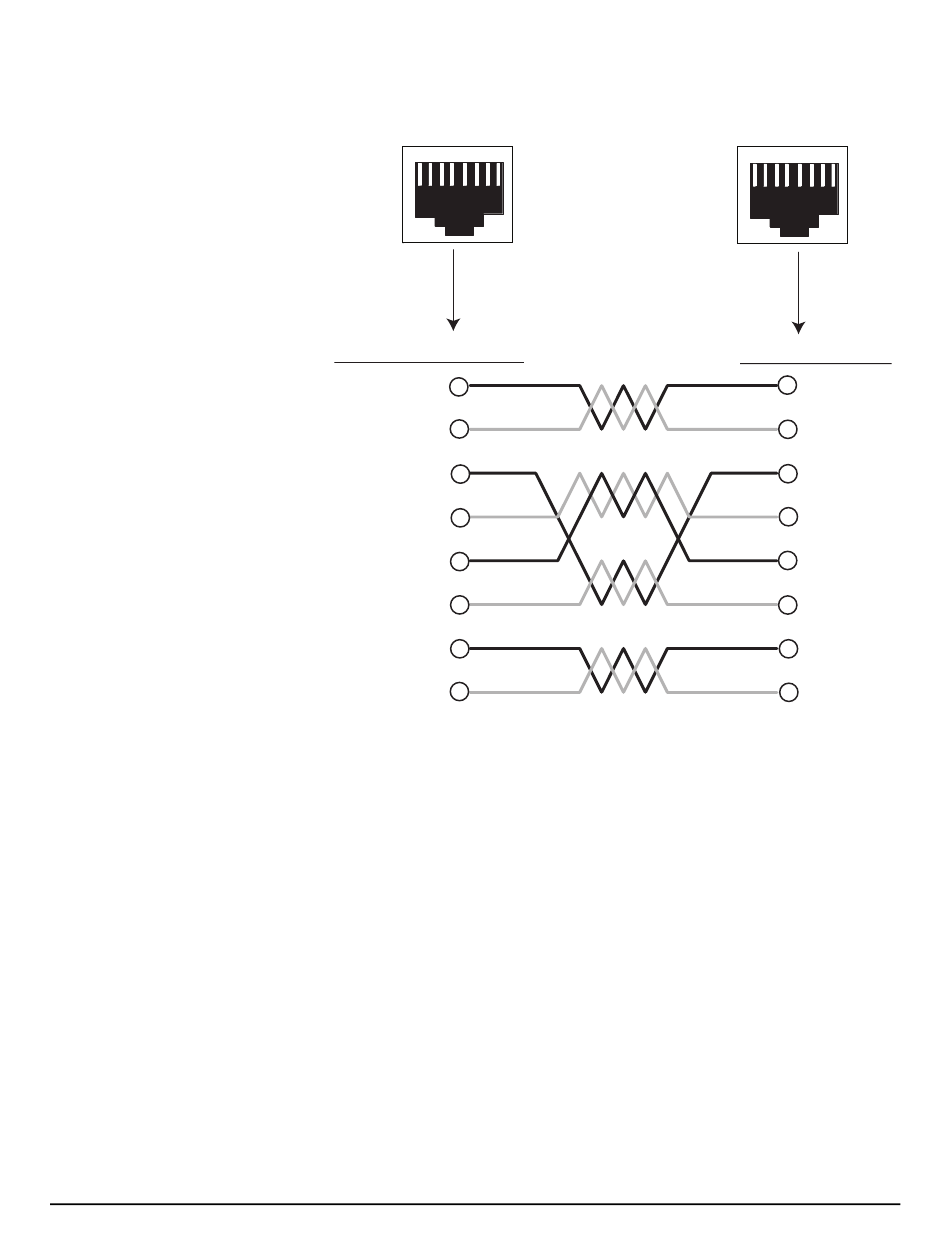

Figure 5-5: Wiring from the Matrix to an Analog Panel Using RJ-45
Views from
front of
connectors
Shielded category-5 cables wired pin-to-pin
Pair 2
Pair 1
Pair 3
Pair 4
RJ-45 CONNECTOR ON
PANEL OR INTERFACE
8 7 6 5 4 3 2 1
Panel RJ-45 Pin Numbers
1 RS-422 Output +
(from panel)
2 RS-422 Output –
(from panel)
Audio Output +
3
(from panel)
Audio Input +
4
(into panel)
Audio Input –
5
(into panel)
6 Audio Output –
(from panel)
RS-422 Input +
7
(into panel)
RS-422 Input –
8
(into panel)
