Vitec Group Communications
Eclipse Median Instruction Manual
RESET
+3.3V
PROC
FRONT
REAR
TXVRA
ACT LINK
Link active
Indicates link
error
ERR TXVR
TXVRB
ACT LINK
Link active
Indicates link
error
ERR TXVR
Status
Frame
Data

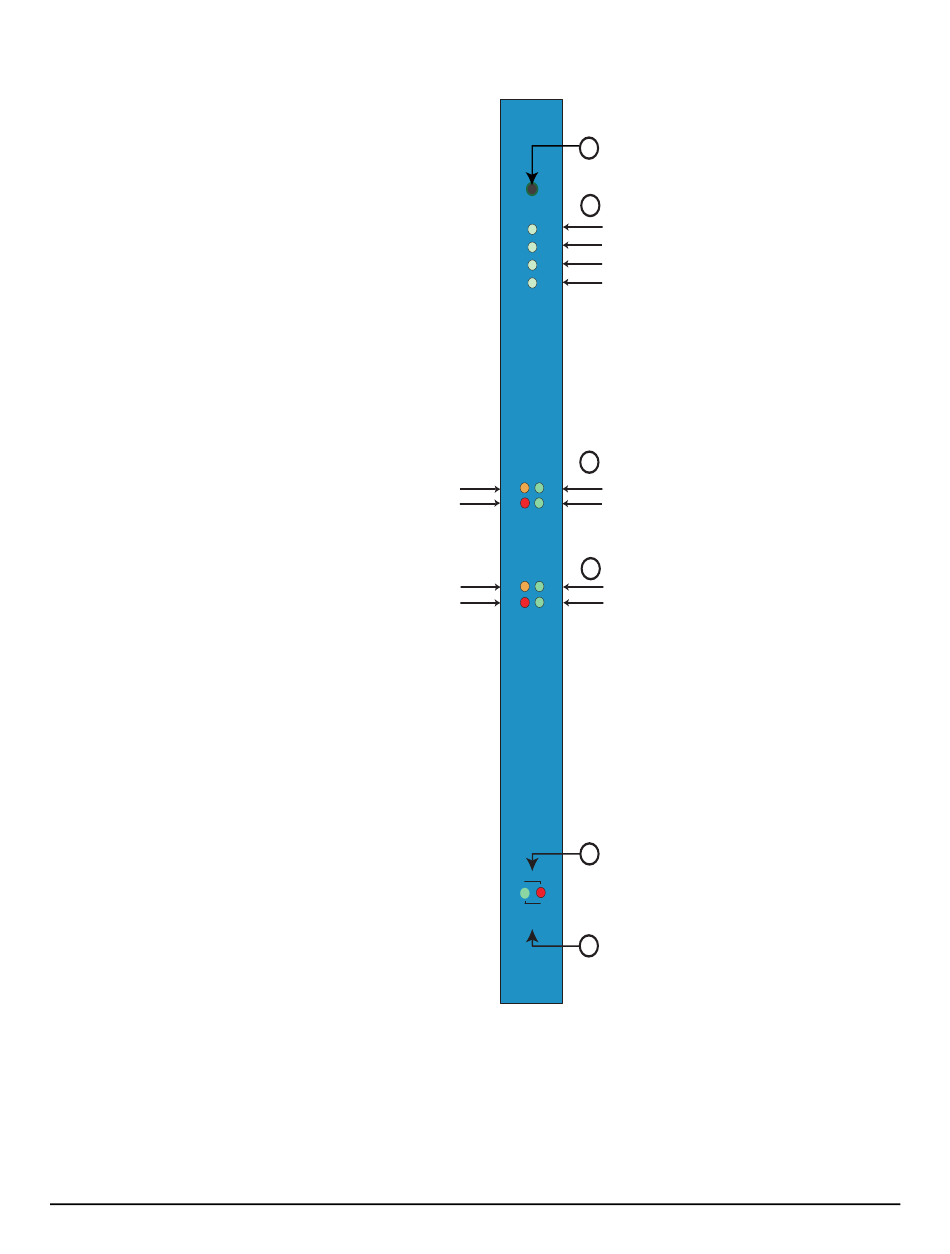

Figure 3-1: Front Fiber Card
1
RESET BUTTON
2
POWER SUPPLY & STATUS LIGHTS
When lit, +3.3 V power supply is on
When lit, the processor is running
When lit the front card is functioning
When lit the rear card is functioning
3
LINK A STATUS LIGHTS
When lit the link is established
Indicates data transmit
4
LINK B STATUS LIGHTS
When lit the link is established
Indicates data transmit
STATUS LIGHT
5
When flashing, this light indicates
card status
FRAME DATA LIGHT
When flashing, this light indicates
6
that information is passing between
the CPU card and this card
3 - 3
