E1 trunking between matrices can also be achieved over an E1
network as shown in Figure 4-7. In this case the E1 ports of the E-Que
card are connected using standard straight-through CAT5 cables
rather than crossover CAT5 cables.

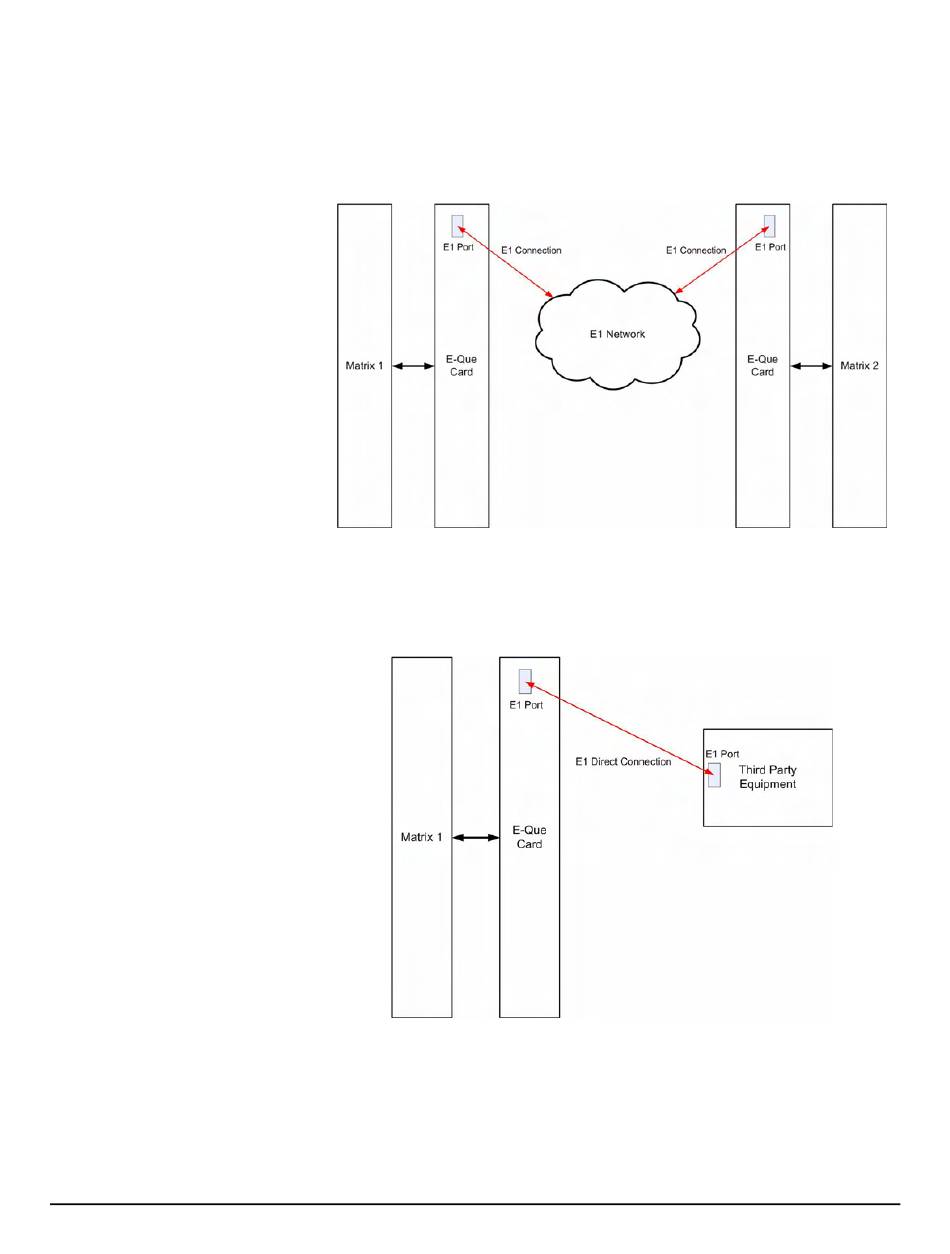

Figure 4-7: E1 Trunking via an E1 Network
The E-Que card can also be used to connect the matrix to third party
equipment using an E1 port.
Figure 4-8: Matrix to Third Party Connection Using E1
The CAT5 cable connecting the E1 port on the E-Que card may be a
crossover cable or a straight-through cable depending on the
requirements of the third party equipment. The E-Que card should be
set to "Direct" in ECS.
