INSTALLING THE ECLIPSE MATRIX:
A N O V E R V I E W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eclipse Omega and is the answer not in the manual?

Questions and answers

Related Manuals for Clear-Com Eclipse Omega

Summary of Contents for Clear-Com Eclipse Omega

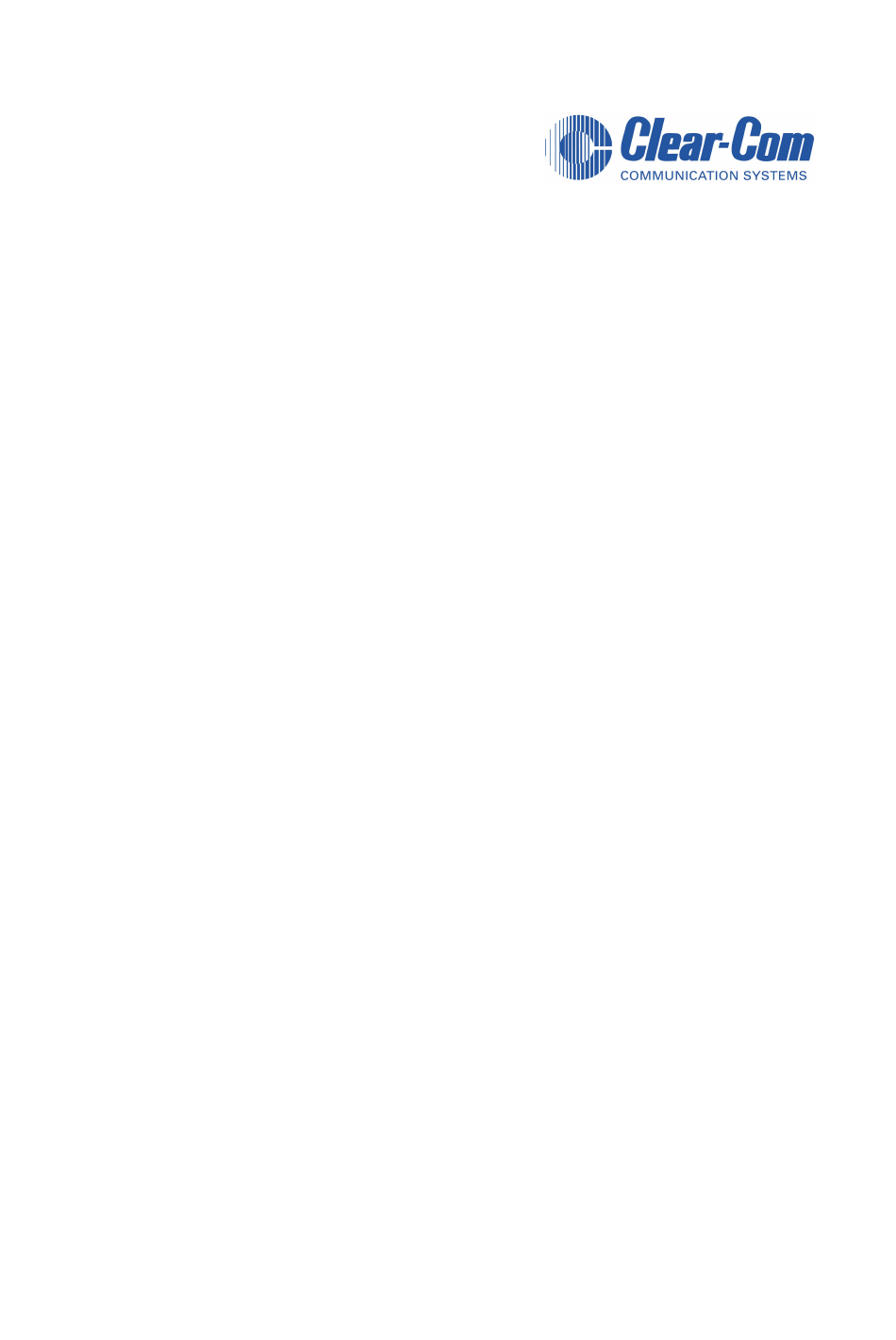

  • Page 1 INSTALLING THE ECLIPSE MATRIX: A N O V E R V I E W...
  • Page 2 Jian Guo Men Wai Ave Chao Yang District Beijing, P.R. China 100022 Clear-Com is a registered trademark of Vitec Group Communications. The Clear-Com logo is a registered trademark of Vitec Group Communications. Eclipse is a registered trademark of Vitec Group Communications.

  • Page 3: Table Of Contents

    Eclipse Omega Matrix ........
  • Page 4 Eclipse Omega Matrix ........
  • Page 5 CCI-22 Party-Line Interface Wiring ......4-16 Clear-Com Party Lines General Discussion ..... 4-16 TEL-14 Telephone Interface Wiring .
  • Page 6 Technical Support ..........6-i Warranty Repairs and Returns .
  • Page 7 FIGURES IMF-3 Interface Frame Rear Panel ..............2-3 IMF-102 Interface Frame Rear Panel ............2-4 PSU-101 to IMF-3 Wiring ................3-5 Computer DB-25, RS-232 Cable ..............4-4 Computer DB-9, RS-232 Cable ..............4-5 Pin Assignments for LAN 1 and LAN 2 Connectors ........4-5 Wiring Matrix to Analog Station Using RJ-45 ..........
  • Page 8 I N S T A L L A T I O N O V E R V I E W...

  • Page 9: Installation Overview

    INSTALLATION OVERVIEW INTRODUCTION Installing an Eclipse Matrix System: An Overview describes the steps required to install an Eclipse matrix system and customize it to your needs. The manual gives you information about placing, powering, and wiring components of your system. It is highly recommended that you read Understanding the Eclipse Matrix System: An Overview before attempting an installation.

  • Page 10: Step-By-Step Installation

    STEP-BY-STEP INSTALLATION To install an Eclipse matrix system: 1. Verify the shipment. 2. Select locations for your components. 3. Determine your wiring requirements. 4. Install components in rack. 5. Install cables. 6. Connect cable and auxiliary wiring. 7. Connect to mains AC Power. 8.

  • Page 11: Install Cables

    Refer to the appropriate manual in the Eclipse set of manuals for detailed information on installing a particular frame in the rack. • For matrices, refer to the Eclipse Omega Matrix Instruction Manual , the Eclipse Median Matrix Instruction Manual, the Eclipse Pico Matrix Instruction Manual or the Eclipse-32 Matrix Instruction Manual as appropriate for complete installation requirements.

  • Page 12: Connect To Mains Ac Power

    You can connect the matrix to an Ethernet network through the two standard RJ-45 Ethernet connectors labeled LAN 1 and LAN 2 on the Eclipse matrix. Ethernet connection allows you to control one or more matrices from one or more computers on a network. See Chapter 4 for more information. External Alarm Connection—Eclipse matrices have built-in fault alarm systems.

  • Page 13: V-Series Panels

    Each installation is different, so it is beyond the scope of this manual to outline in detail this phase. Matrix Indicators to Verify Eclipse Omega There are many lights on the front of the matrix that indicate its operational status. Proper operation of the matrix is indicated by the following: 1.

  • Page 14: Eclipse Pico

    Eclipse Pico The following front-panel indicators indicate a properly operating Eclipse Pico matrix: 1. The two PSU alarm lights, labeled “1” and “2” do not illuminate under normal operating conditions. 2. One of the four green configuration lights illuminates steadily to identify the currently active configuration.

  • Page 15: Placing System Components

    See the Eclipse Omega Matrix Instruction Manual for more details. Caution: It is mandatory that the air flow through an Eclipse Omega matrix from the bottom to the top is unimpeded. If other equipment is mounted above and below...

  • Page 16: Eclipse Median Matrix

    RU of empty space above and below the Eclipse Omega matrix as over-heating will occur if this is not done. If the matrix is mounted in a portable case this air flow must not be impeded. Eclipse Median Matrix The Eclipse Median matrix requires six vertical rack units (10.5 inches or 267 mm) in a standard Electronics Industry Association 19-inch wide (48.26 cm)

  • Page 17: Interface Frame(S) And Power Supplies

    Each interface module connects to both the central matrix and to the non-4-wire device through cable attached to hardware connectors on the rear of the interface module. To house these interface modules, Clear-Com offers three types of interface frames, which are described in the following sections.

  • Page 18: Imf-102 Interface Module Frame

    (1 RU) of a standard Electronics Industry Association 19-inch (48.26 cm) rack. DIG-2 interface modules allow the matrix to connect to digital versions of Clear-Com intercom stations. The DIF-102 frame is powered by one or two (for redundancy) external AC mains to 24 VDC power supplies via locking DIN connectors on the DIF-102 rear panel.

  • Page 19: External Computer

    EXTERNAL COMPUTER The Eclipse Configuration System (ECS) runs on an external computer that connects to the matrix frame via a standard PC serial port to a DB-9 RS-232 connector. The maximum recommended length of the cable is approximately 10 feet (3.04 meters). Note: If your computer does not have a serial port, but only offers USB, adapters are available from computer parts suppliers.
  • Page 20 2 - 6 I N S T A L L A T I O N O V E R V I E W...

  • Page 21: Powering System Components

    AC mains power using the IEC power connectors on the Eclipse Omega frame’s rear panel. A fully equipped Eclipse Omega frame requires 100 to 240 VAC at 50 to 60 Hz with a maximum dissipation of 400 W. 3 - 1...

  • Page 22: Eclipse Median Matrix

    AC mains power. The matrix will continue to operate even if one of the AC power branches fails. Clear-Com ships each matrix with two power supplies already installed. When you receive the matrix, connect each of the power supplies to a dedicated branch of AC mains power using the IEC power connectors on the Eclipse Median frame’s rear panel.

  • Page 23: Ics-52/62/92/102 Intercom Panels

    An audible alarm is included in the PSU-101, and an additional set of alarm-relay contacts are provided on the supply. Clear-Com recommends that these contacts be connected to the external alarm input of the matrix frames. If...

  • Page 24: Imf-3 Interface Module Frame

    any of the power supplies in the PSU-101 fails, it would cause a system alarm. LEDs on the front of the PSU-101s will indicate the failure. Installing two PSU-101 power supplies per application provides redundancy because either of the two PSU-101 power supplies can power a complete system. If one fails, it can be removed without interruption of the entire system.

  • Page 25: Imf-102 Interface Module Frame

    PSU-101 PSU-101 IMF-3 IMF-3 IMF-3 IMF-3 IMF-3 PSU-101 Figure 3-3: PSU-101 to IMF-3 Wiring IMF-102 Interface Module Frame The IMF-102 interface frame has an internal power supply and a rear-panel connector to provide redundant power. The IMF-102 requires 90 to 250 VAC with a maximum dissipation of 20 watts.
  • Page 26 3 - 6 I N S T A L L A T I O N O V E R V I E W...

  • Page 27: Wiring System Components

    The following section discusses the use of RJ-45 connectors for connecting an Eclipse frame to panels and interfaces. It includes the following topics: • General discussion about RJ-45 connector cables • Clear-Com kits and recommendation • Installing RJ-45 connectors. General Discussion About RJ-45 Connector Cables The system wiring is with shielded CAT5 twisted cable with RJ-45 connectors on either end;...

  • Page 28: Clear-Com Kits And Recommendation

    2 and 3 colors may be different. Caution: Make sure the type of RJ-45 connector matches your wire type. Connectors are available for both stranded and solid wire. Clear-Com intercom stations do not require keyed connectors. Please refer to the following list for connector vendor and port numbers.
  • Page 29 “tricks,” it’s fairly easy. It is very strongly suggested that you test your work with a cable checker. The technique that will transform this task from tedious to easy is described next. If you understand it, you can skip reading the rest of the detailed steps. The main hurdle in putting these connectors on correctly is the tendency of the wires to slip out of the correct order as you slide the prepared cable end into the connector.

  • Page 30: Wiring The Matrix To A Computer

    WIRING THE MATRIX TO A COMPUTER WIRING FOR SERIAL CONNECTION The DB-9F connector labeled “RS-232” on the rear of an Eclipse-208 matrix, or the DB-9F connector labeled “PC” on the front of an Eclipse-32 matrix, connects the matrix to an external computer. The computer runs the Eclipse Configuration System (ECS) program.

  • Page 31: Wiring For Ethernet Connection

    Computer Serial Port Eclipse Matrix “RS-232” DB-9F Cable Connector DB-9M Cable Connector Receive (RXD) Transmit (TXD) Transmit (TXD) Receive (RXD) Ground (GND) Figure 4-5: Computer DB-9, RS-232 Cable WIRING FOR ETHERNET CONNECTION To connect the matrix to a local-area network (LAN), use the RJ-45 sockets labeled “LAN 1”...
  • Page 32 RJ-45 CONNECTOR RJ-45 CONNECTOR ON AT MATRIX PORT STATION OR INTERFACE 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 Views from front of connectors Shielded category-5 cables wired pin-to-pin Matrix Frame RJ-45 Pin Numbers Station RJ-45 Pin Numbers Pair 2 RS-422 Input +...

  • Page 33: Single-Pair Digital

    SINGLE-PAIR DIGITAL Single-pair digital wiring is accomplished with double-shielded 24 AWG conductor CAT-6E enhanced STP cable. Pair 1 transmits and receives multiplexed digital and analog between the matrix and the station. Note: Ensure that the “select” switch on the station’s rear panel is in the correct position for the intended use.

  • Page 34: Pin Configuration Of The General-Purpose Outputs Connector

    Each general-purpose output has a relay inside the Eclipse-208 frame. When a general-purpose output is inactive, the associated “common” pin on the GP OUT connector will be shorted to the relevant “normally closed” pin. When a general-purpose output becomes active, the short between the “common” pin is broken and a new connection is made between the “common”...

  • Page 35: Wiring The Matrix To General-Purpose Inputs

    WIRING THE MATRIX TO GENERAL-PURPOSE INPUTS You can connect an external logic device—such as an external foot switch, a panel-mounted switch, or the logic output of some other device—to the connector labeled “GP IN” on the rear of the Eclipse matrix. When the external logic device is activated, it sends a control signal into the matrix to perform one of several preset functions, such as turning an intercom station’s microphone on or off, muting a microphone’s output, or turning a station’s speaker off.

  • Page 36: Opto-Isolated Mode

    To select a mode, move the J1 jumper on the CPU rear card to one of two positions. (The J1 jumper is located on the inner-frame side of the DB-25 connector.) • For opto-isolated mode, fit the J1 jumper across pins 1 and 2. •...

  • Page 37: Wiring The Matrix To An External Alarm

    The external device should draw no current to cause an inactive input and at least 5 mA to cause an active input. The opto-isolator drive line contains a 1.5 kOhm resistor to limit the current through the opto-isolator. You can therefore connect the input pins directly to a ground pin to cause an active input.

  • Page 38: Wiring The Matrix Directly To A 4-Wire Audio Device

    Each interface module has hardware connectors to connect to both the central matrix and to the external device that communicates with the central matrix. To house these interface modules, Clear-Com offers three types of interface frames. • The IMF-3 interface frame holds up to 11 interface modules in 3 RU of rack space.
  • Page 39 RJ-45 is for Line A of the interface and the lower RJ-45 is for Line B of the interface. The upper and lower DB-9M connectors are the Line A and Line B connections to the telephone line. Clear-Com provides DB-9F to RJ-11 adapters so that standard phone line RJ-11 plugs and jacks can connect directly to the interface.

  • Page 40: For-22 4-Wire/Radio Interface Wiring

    Figure 4-15 shows the rear panel of a IMF-3 wired for RLY-6s and GPI-6s. The CPU card will read these modules and will call the first RLY-6 relays 1 to 6. The second RLY-6 will be identified as relays 7 to 12. GPI/RLY Interface Connector...

  • Page 41: External Audio Devices

    Audio Output Audio Output Audio Input Audio Input Logic Input (+/- 4 to 50 V) Logic Input (+/- 4 to 50 V) Relay Normally Closed Relay Wiper Relay Normally Open Figure 4-17: Pinout of the DB-9M I/O Connectors for FOR-22s The following sections describe how to wire for the various type of inputs and outputs available on this connector: •...

  • Page 42: Clear-Com Party Lines General Discussion

    Figure 4-18: Pinout of the DB-9M Interface I/O Connectors for CCI-22 Clear-Com Party Lines General Discussion Stations on Clear-Com party lines connect to each other with two-conductor shielded microphone cable. One conductor carries the DC power (28 to 30 V) for that channel, while the other conductor carries the duplex two-way intercom audio signal plus DC “Call Light”...

  • Page 43: Tel-14 Telephone Interface Wiring

    Connecting more than one termination circuit to a party line will impair the sidetone null and degrade the line’s audio quality. When a CCI-22 party-line channel is connected to a Clear-Com party line, the Clear-Com/RTS “select” pin must be left floating. Grounding this pin selects the RTS mode, which is incompatible with Clear-Com party lines.
  • Page 44 Connecting to the Telephone Line Connecting the telephone line can be accomplished with one of two methods. One method is to use the RJ-11 to DB-9F adapters supplied by Clear-Com with the TEL-14 interface. The second method is to directly wire each telephone line to a DB-9F connector using the pinouts in Figure 4-21, which shows the wiring diagram of the adapter.

  • Page 45: Imf-3 Interface Module Frame Wiring

    Telephone Set Although it is possible to use a parallel-connected telephone set to originate calls, it is preferable to use a series-connected telephone set with the TEL-14. This will prevent the impedance of the telephone set from disturbing the telephone line impedance recognized by the TEL-14.

  • Page 46: To External Device

    GPI/RLY Interface Connector Rear View of IMF-3 Frame Ports RJ-45 RJ-45 RJ-45 RJ-45 RJ-45 DB-9 DB-9 DB-9 DB-9 DB-9 RJ-45 RJ-45 RJ-45 RJ-45 RJ-45 DB-9 DB-9 DB-9 DB-9 DB-9 RLY-6 GPI-6 GPI-6 RLY-6 Other Interfaces Figure 4-22: Rear View of IMF-3 Frame To External Device To connect external devices to an RLY-6 interface, use the two DB-9M connectors on the rear cable assembly panel for the interface.

  • Page 47: Imf-102 Interface Module Frame Wiring

    IMF-102 Interface Module Frame Wiring The wiring of an RLY-6 interface that is placed in an IMF-102 interface frame is the same as the wiring for a RLY-6 interface placed in an IMF-3 interface frame. The only difference is that an IMF-102 interface frame houses only two interfaces, and they are mounted horizontally rather than vertically in the frame.

  • Page 48: Configuration

    #1/4 Input A #1/4 Input B #2/5 Input A #2/5 Input B #3/6 Input A #3/6 Input B Ground Power Source Ground Figure 4-24: GPI-6 Interface DB-9M Connector Pinout GPI-6 I/O DB-9M GPI-6 I/O DB-9M Figure 4-25: GPI-6 Application Examples Figure 4-24 and Figure 4-25 show how to connect switches or contacts using the power source provided by the GPI-6 module or powering switches from external sources.

  • Page 49: Wiring An Eclipse Station's Miscellaneous Connector

    WIRING AN ECLIPSE STATION’S MISCELLANEOUS CONNECTOR Most local devices connect with a matrix station via the “miscellaneous” connector. The following sections discuss how to wire the various functions available on the “miscellaneous” connector. • External program feed input • Binaural headset (All Stations Except ICS-2003/2110/1016) •...

  • Page 50: Binaural Headset (All Stations Except Ics-2003/2110/1016)

    To connect an external program feed to the station, connect the balanced audio pair to pins 1 and 9, and connect a shield or ground connection if available to pin 2 of the connector (refer to Figure 4-26). BINAURAL HEADSET (ALL STATIONS EXCEPT ICS-2003/2110/1016) The second ear output allows an external binaural headset to be connected to the station.

  • Page 51: Mute Relay Contacts

    Do not apply external voltage to the logic inputs, except in the case of Logic Input #2 being configured for an active high input as described above. MUTE RELAY CONTACTS This set of relay contacts will be activated whenever any talk path is activated at the station.

  • Page 52: Wiring An Eclipse Station's Opt-100 Auxiliary Audio I/O Option

    Figure 4-27 shows the wiring of a six pin XLR connector for a binaural headset. Front Panel Headset Connector Figure 4-27: Binaural Headset Wiring WIRING AN ECLIPSE STATION’S OPT-100 AUXILIARY AUDIO I/O OPTION Figure 4-28 shows the pinout of the DB-15F “auxiliary audio I/O” connector on the back of the intercom station.

  • Page 53: Auxiliary Audio Line Level Output

    If installed, the OPT-100 Auxiliary Audio I/O Option provides three additional audio output signals, plus a set of relay contacts. The following functions are available: • Auxiliary audio line level output • “Hot mic” output • SA (stage/ studio) announce output •...

  • Page 54: Wiring An Eclipse Station's Accessory Connector

    Refer to Figure 4-28. The following pins are available for the SA relay: • N. O. (normally open)—Pin 3 • WIPER (common)—Pin 4 • N.C. (normally closed)—Pin 5 WIRING AN ECLIPSE STATION’S ACCESSORY CONNECTOR You connect an intercom station to an accessory key panel via the accessory panel connector.

  • Page 55: Connecting Matrices

    You connect the matrix to an Ethernet network with the RJ-45 sockets labeled “LAN 1” and “LAN 2” on the rear of the Eclipse Omega or Median matrix, or the RJ-45 socket labeled “LAN” on the rear of the Eclipse Pico or Eclipse-32 matrix.
  • Page 56 RJ-45 Port Connector RJ-45 Port Connector on First Matrix Frame on Second Matrix Frame RS-422 Receive + RS-422 Receive + RS-422 Receive - RS-422 Receive - Audio Receive + Audio Receive + Audio Send + Audio Send + Audio Send - Audio Send - Audio Receive - Audio Receive -...

  • Page 57: Base-Loop Linking (Eclipse Pico/Eclipse-32 Matrix Only)

    Eclipse Omega Eclipse Omega Eclipse Omega Audio trunk Ethernet Long-distance transmission system: public or private telephone network, satellite-linked network, microwave network, etc. Figure 5-33: Matrices Linked Across Continents This type of connection uses up available ports on the matrix and so does not provide 100% routing.

  • Page 58: Tie-Line (Audio Only) Linking

    CABLE END 1 WIRE COLOR CABLE END 2 Pin 1 white/orange Pin 3 Pin 2 orange Pin 6 Pin 3 white/green Pin 1 Pin 4 blue Pin 4 Pin 5 white/blue Pin 5 Pin 6 green Pin 2 Pin 7 white/brown Pin 7 Pin 8...

  • Page 59: Limited Warranty

    • UHF wireless intercom systems have a limited warranty of three years. • All other Clear-Com and Drake brand systems and products, including beltpacks, have a limited warranty of two years. The warranty starts at the time of the product’s original purchase. The warranty...

  • Page 60: Warranty Repairs And Returns

    such agreement. For more information, contact your authorized dealer, distributor, or sales representative. Instructions for reaching our User Support Center are given below. Telephone for Europe, Middle East and Africa: +49 40 6688 4040 Telephone for the Americas and Asia: +1 510 337 6600 Email: vitec.support@AVC.de Once the standard warranty period has expired, the User Support Center will continue to provide telephone support if you have purchased an Extended...

  • Page 61: Service Contract

    years the warranty of any product offered with a standard two-year warranty. The total warranty period will not extend beyond five years. Any purchase of an extended warranty provides 24 x 7 customer support in addition to the warranty immediately upon purchase of the warranty extension. Note: VGC does not offer warranty extensions on UHF wireless intercom systems, or on any product with a 1-year or 90-day warranty.
  • Page 62 of customer furnished components resulting in damage to VGC provided product. This warranty gives you specific legal rights and you may have other rights which vary from state to state. V I T E C G R O U P C O M M U N I C A T I O N S W A R R A N T Y...
