The Status Bar

The Status Bar is displayed in the upper left corner of the web browser

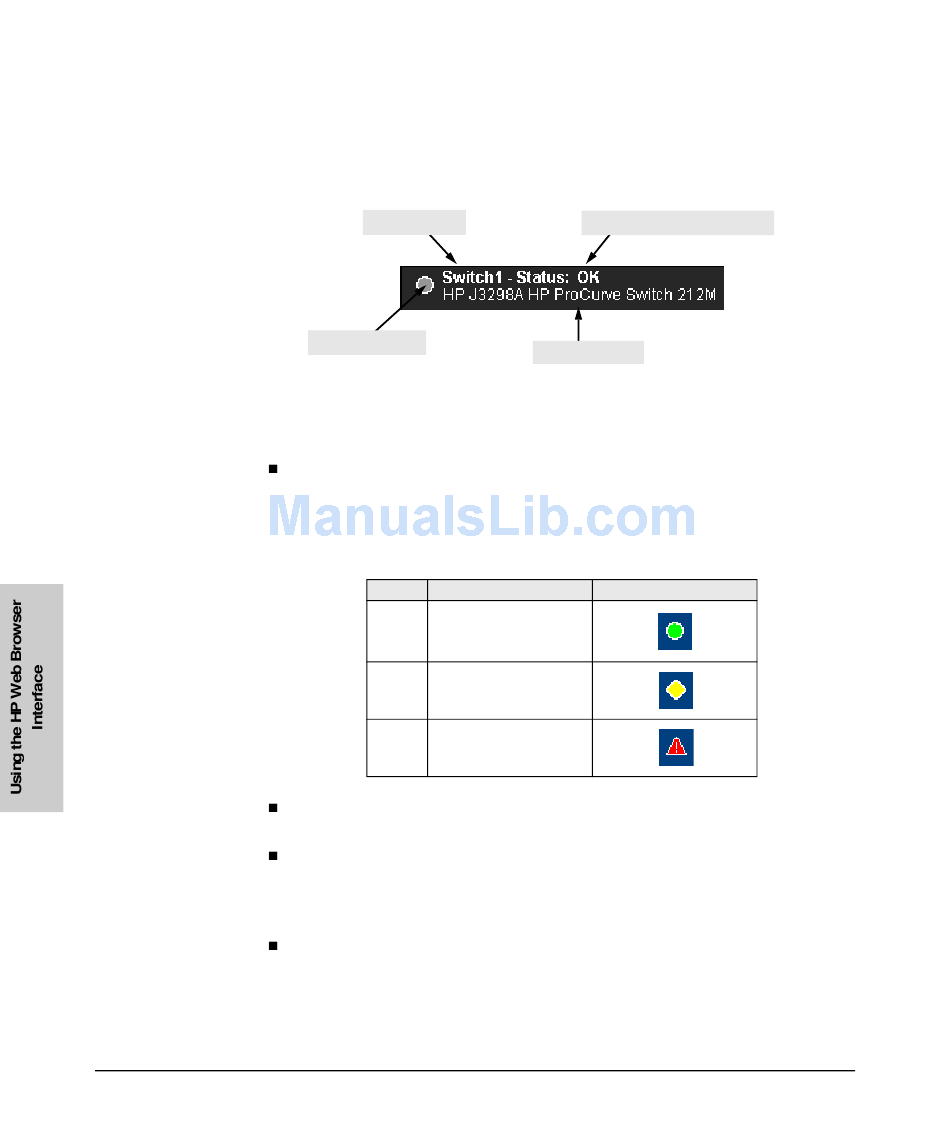

interface screen. Figure 3-15 shows an expanded view of the status bar.
Figure 3-17. The Status Bar
The Status Bar consists of four objects:
Table 3-3.
3-24
System Name
Status Indicator
Status Indicator. Indicates, by icon, the severity of the most critical alert
in the current display of the Alert Log. This indicator can be one of three
shapes and colors as shown in the following table.
Status Indicator Key
Color Gauge Severity Region
Green Normal Activity
Yellow Warning
Red Critical
System Name. The name you have configured for the switch in the
Identity screen or through the switch console System Information screen.
Most Critical Alert Description. A short text description of the earliest,
unacknowledged alert with the current highest severity in the Alert Log.
In instances where multiple critical alerts have the same severity level,
only the earliest unacknowledged alert is displayed in the Status Bar.
Product Name. The product name of the switch to which you are
connected in the current web browser interface session.
Most Critical Alert Description
Product Name
Status Indicator Shape
