Configuring Port Parameters from the Switch Console

To Access Port Configuration:
1. From the Main Menu, select:
3. Switch Configuration...
2. Port Settings
Read-Only Fields

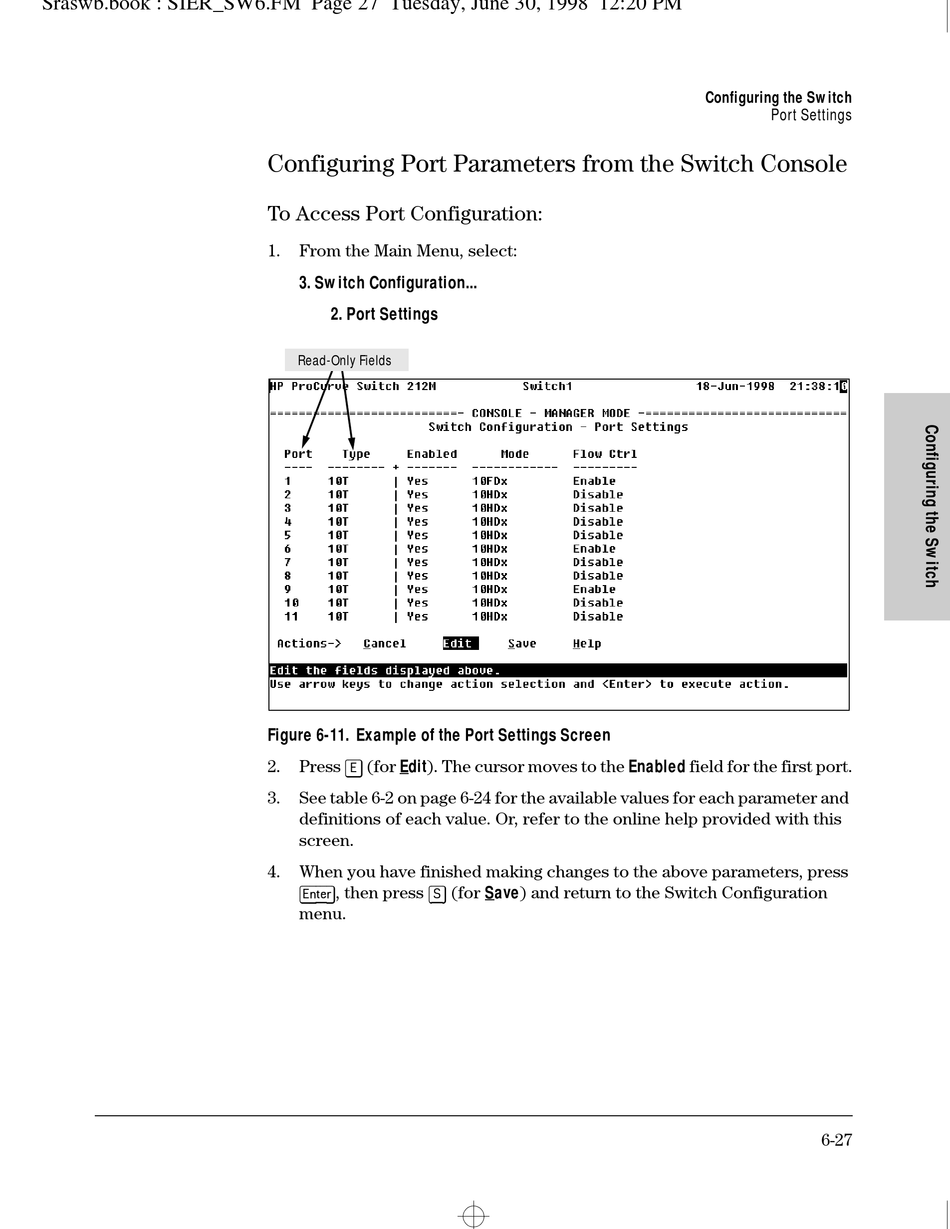

Figure 6-11. Example of the Port Settings Screen
Press [E] (for Edit). The cursor moves to the Enabled field for the first port.
2.
3. See table 6-2 on page 6-24 for the available values for each parameter and
definitions of each value. Or, refer to the online help provided with this
screen.
4. When you have finished making changes to the above parameters, press
[Enter], then press [S] (for Save) and return to the Switch Configuration
menu.
Configuring the Switch
Port Settings
6-27
