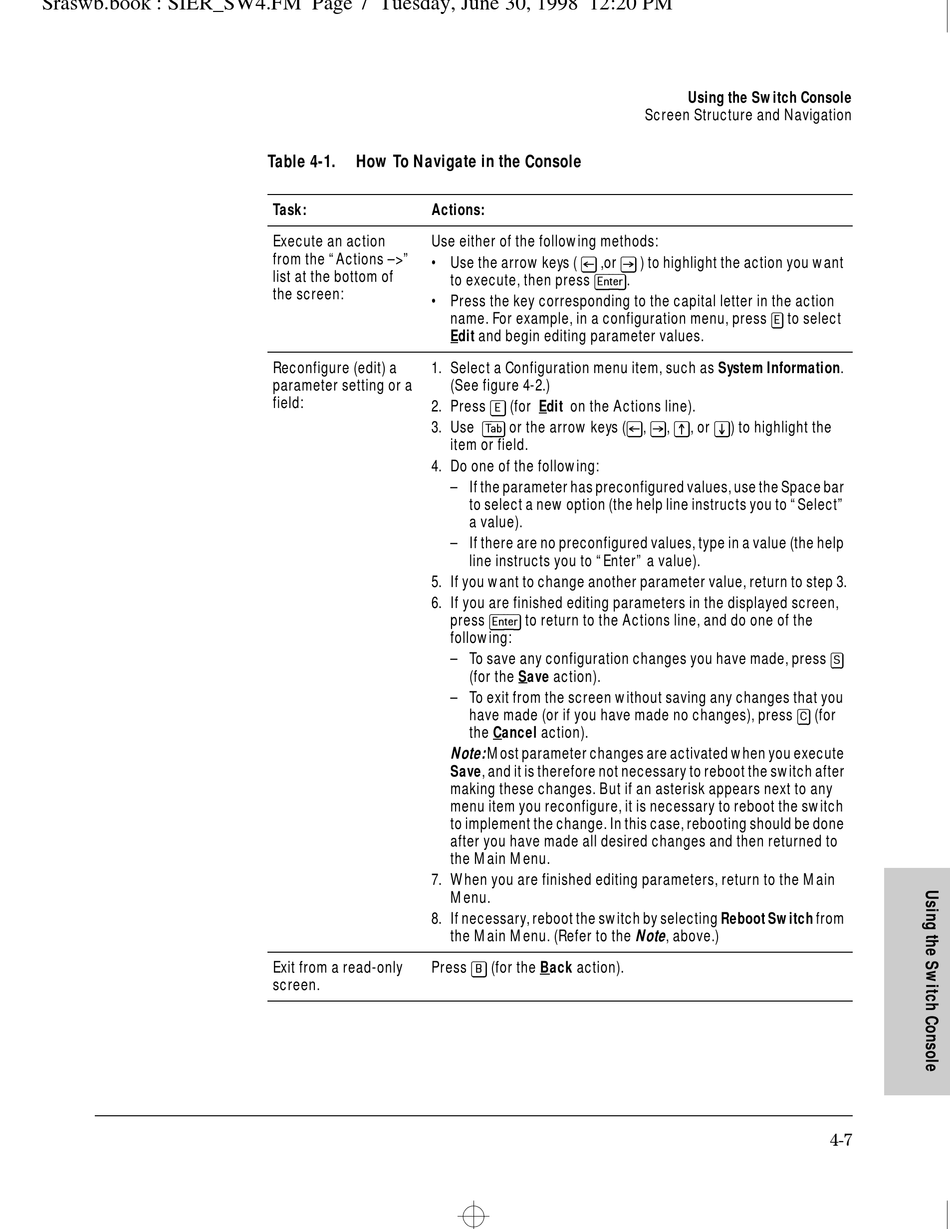

Table 4-1. How To Navigate in the Console
Task: Actions:
Execute an action Use either of the following methods:
from the "Actions –>" • Use the arrow keys ( [<] ,or [>] ) to highlight the action you want
list at the bottom of
the screen:
• Press the key corresponding to the capital letter in the action
Reconfigure (edit) a 1. Select a Configuration menu item, such as System Information.
parameter setting or a
field:
2. Press [E] (for Edit on the Actions line).
3. Use [Tab] or the arrow keys ([<], [>], [^], or [v]) to highlight the
4. Do one of the following:
5. If you want to change another parameter value, return to step 3.
6. If you are finished editing parameters in the displayed screen,
7. When you are finished editing parameters, return to the Main
8. If necessary, reboot the switch by selecting Reboot Switch from
Exit from a read-only Press [B] (for the Back action).
screen.
to execute, then press [Enter].
name. For example, in a configuration menu, press [E] to select
Edit and begin editing parameter values.
(See figure 4-2.)
item or field.
– If the parameter has preconfigured values, use the Space bar
to select a new option (the help line instructs you to "Select"
a value).
– If there are no preconfigured values, type in a value (the help
line instructs you to "Enter" a value).
press [Enter] to return to the Actions line, and do one of the
following:
– To save any configuration changes you have made, press [S]
(for the Save action).
– To exit from the screen without saving any changes that you
have made (or if you have made no changes), press [C] (for
the Cancel action).
Note: Most parameter changes are activated when you execute
Save, and it is therefore not necessary to reboot the switch after
making these changes. But if an asterisk appears next to any
menu item you reconfigure, it is necessary to reboot the switch
to implement the change. In this case, rebooting should be done
after you have made all desired changes and then returned to
the Main Menu.
Menu.
the Main Menu. (Refer to the Note , above.)
