Monitoring and Analyzing Switch Operation
Port Counters

Displaying Port Counters from the Console Interface

To access this screen from the Main Menu, click on:
1. Status and Counters
4. Port Counters

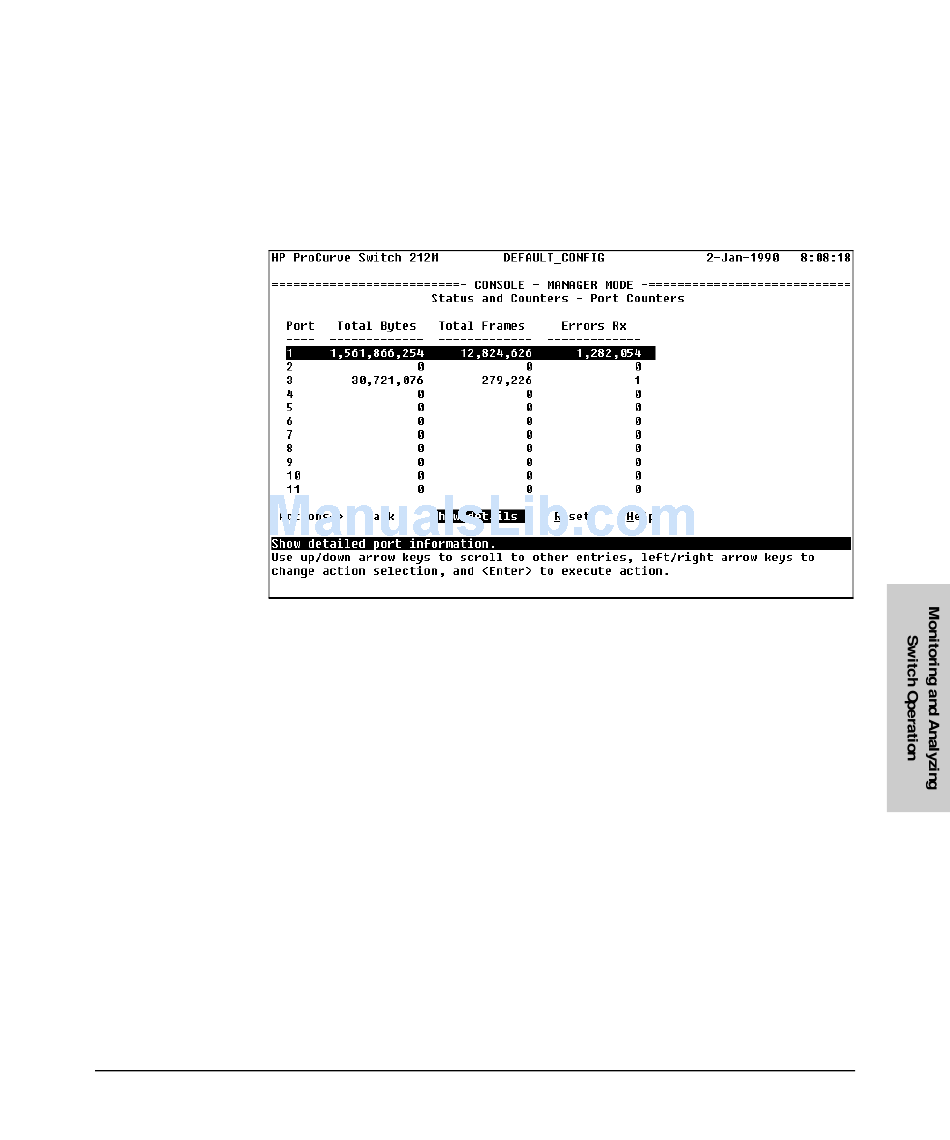

Figure 7-7. Example of Port Counters on the Console Interface
To view details about the traffic on a particular port, highlight that port number
(figure 7-7), then select Show Details. For example, selecting port 1 displays a
screen similar to figure 7-8, on the next page.
7-9
