Connectors
Connectors
This section describes connector functionality and provides information
about mating connectors. The connector locations are shown in
Figure
2-5.

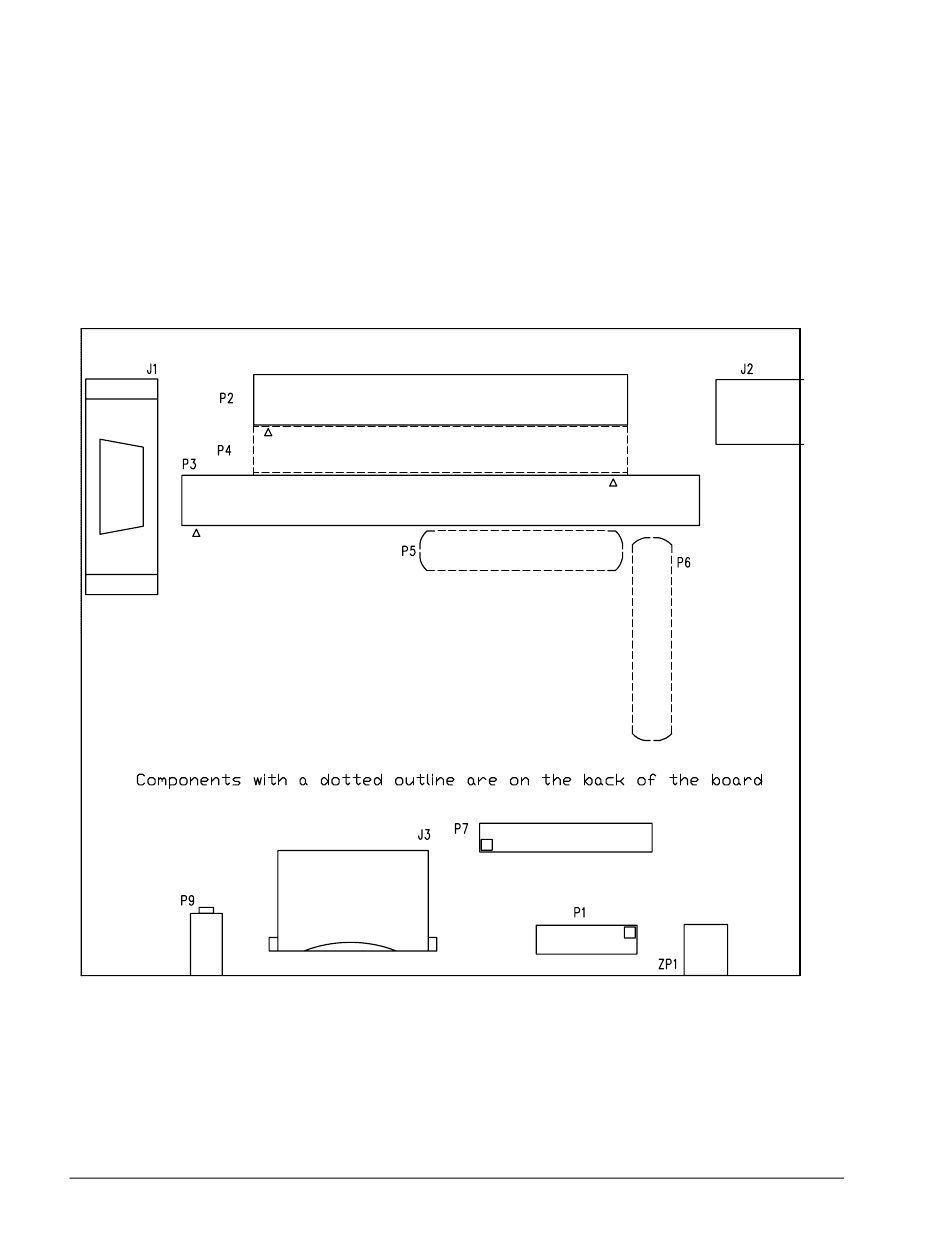

Figure 2-5. Connector Locations
2-16
ADSP-BF506F EZ-KIT Lite Evaluation System Manual
