Push Buttons and Switches
This section describes operation of the push buttons and switches. The
push button and switch locations are shown in

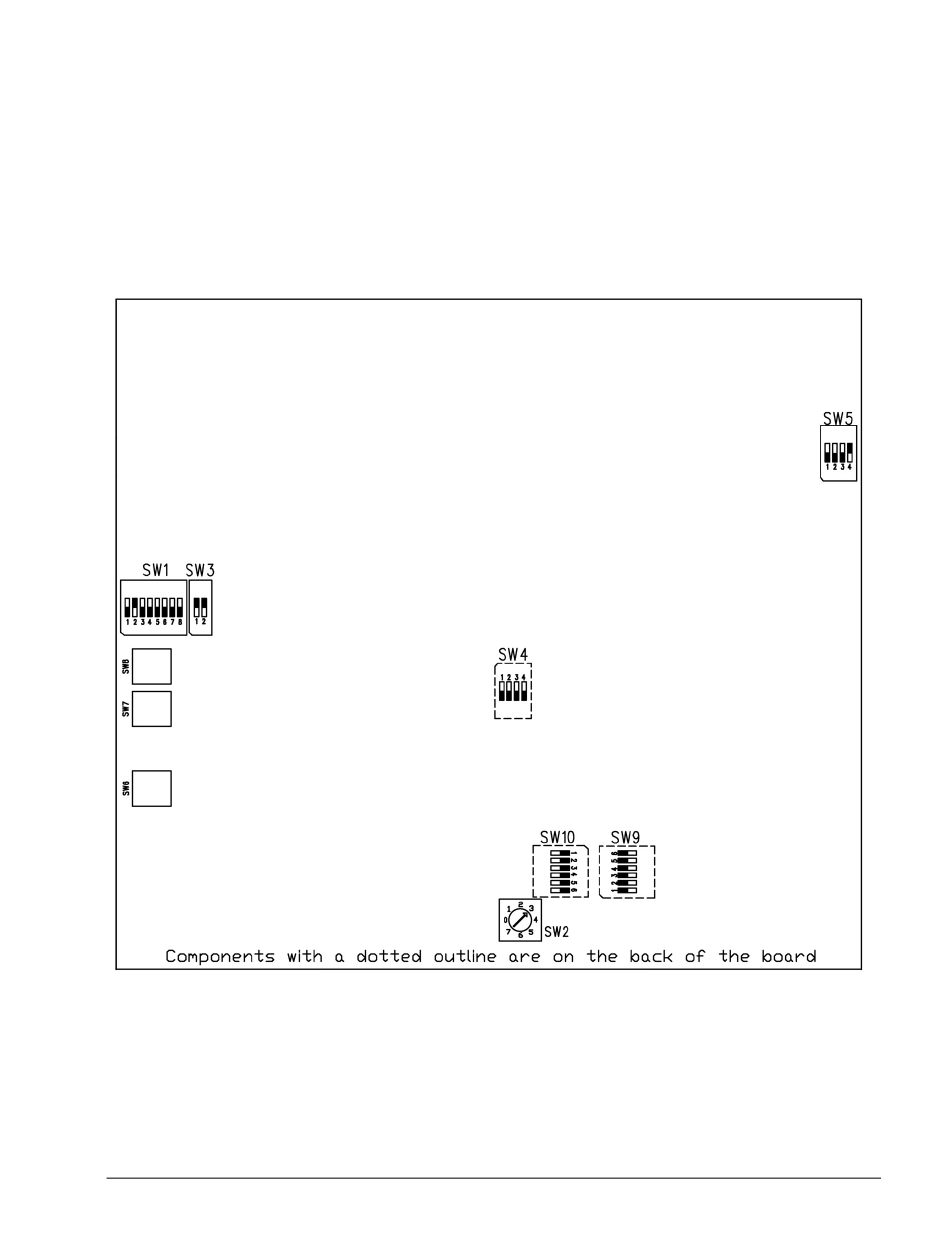

Figure 2-2. Push Button and Switch Locations
ADSP-BF506F EZ-KIT Lite Evaluation System Manual
ADSP-BF506F EZ-KIT Lite Hardware Reference
Figure
2-2.
2-7
