CCES Install and Session Startup

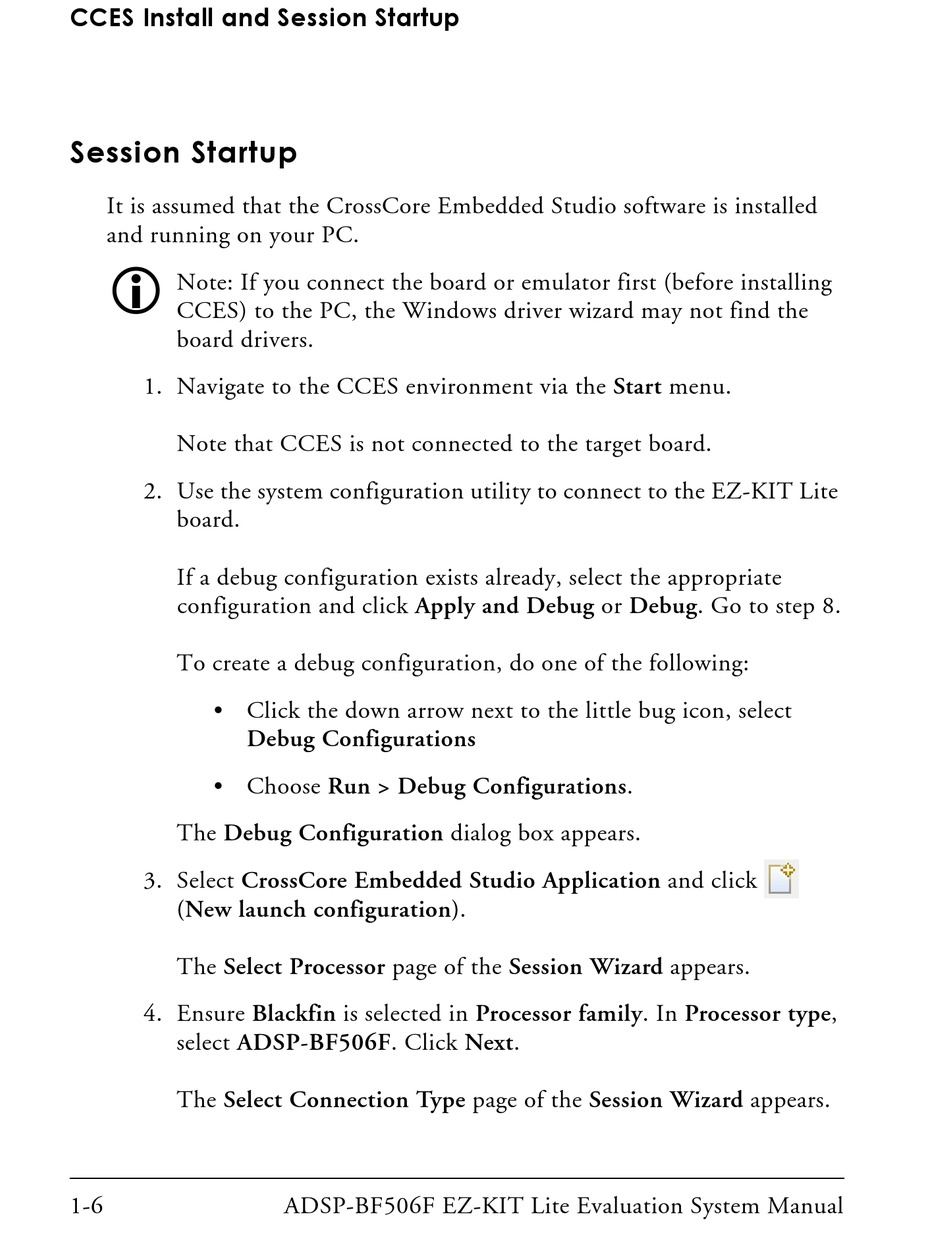

Session Startup
It is assumed that the CrossCore Embedded Studio software is installed
and running on your PC.

Note: If you connect the board or emulator first (before installing
CCES) to the PC, the Windows driver wizard may not find the
board drivers.
1. Navigate to the CCES environment via the Start menu.
Note that CCES is not connected to the target board.
2. Use the system configuration utility to connect to the EZ-KIT Lite
board.
If a debug configuration exists already, select the appropriate
configuration and click Apply and Debug or Debug. Go to step 8.
To create a debug configuration, do one of the following:
• Click the down arrow next to the little bug icon, select
Debug Configurations
• Choose Run > Debug Configurations.
The Debug Configuration dialog box appears.
3. Select CrossCore Embedded Studio Application and click
(New launch configuration).
The Select Processor page of the Session Wizard appears.
4. Ensure Blackfin is selected in Processor family. In Processor type,
select ADSP-BF506F. Click Next.
The Select Connection Type page of the Session Wizard appears.
