3.2 Fuser - Xerox Phaser 3020 Service Manual

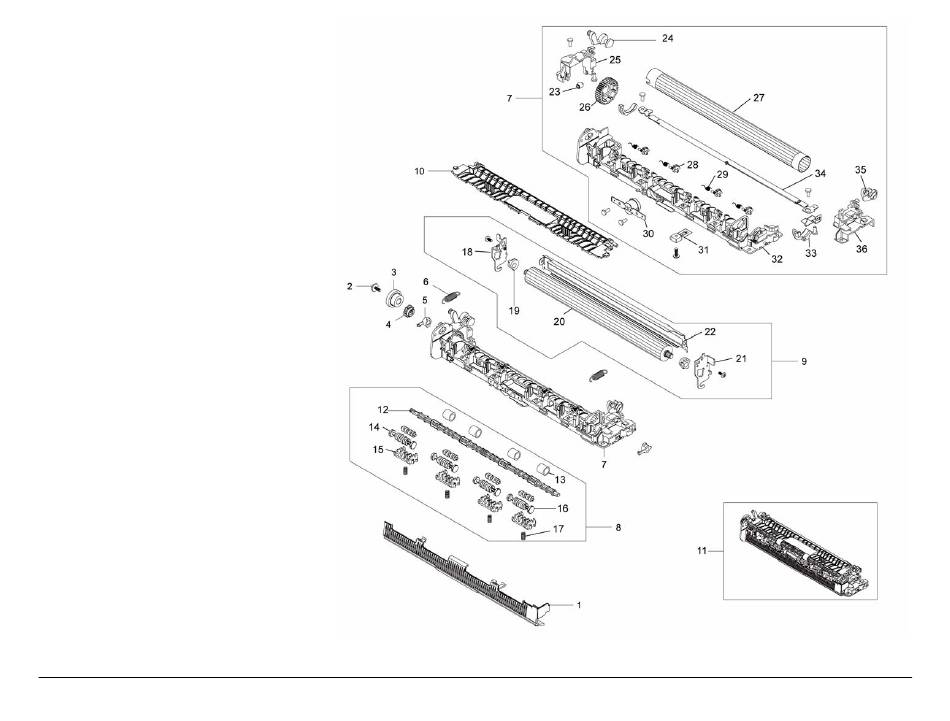

PL 3.2 Fuser
Item Part Description
1 – Exit Cover
2 – Tap Screw
3 – Exit Drive Gear
4 – Exit Gear
5 – Exit Shaft Bushing
6 – Spring
7 – Upper Fuser
8 – Fuser Exit Roller Assembly
9 – Lower Fuser
10 – Fuser Cover
11 126N00432 Fuser Module Assembly 110V
– 126N00433 Fuser Module Assembly 220V
12 – Exit Shaft
13 – Rubber Rolls
14 – Exit Roller
15 – Holder
16 – Exit Roller
17 – Spring
18 – Bracket
19 – Bushing
20 – Pressure Roll
21 – Bracket
22 – Frame
23 – Fuser Gear Stopper
24 – Jam Lever
25 – Lamp Cover
26 – Fuser Gear
27 – Heat Roll
28 – Guide
29 – Spring
30 – Thermostat
31 – Thermistor
32 – Fuser Cover
33 – Bushing
34 – Fuser Lamp
35 – Jam Lever
36 – Right Lamp Cover
