5.
Remove the LSU Cables
(Figure
2).
a.
Disconnect the connectors (2).
NOTE: The Flat Cable may be adhered to the LSU, detach it from the LSU and re-
install it on the new LSU in the same location.
b.
Route the cables through the frame.
Connectors

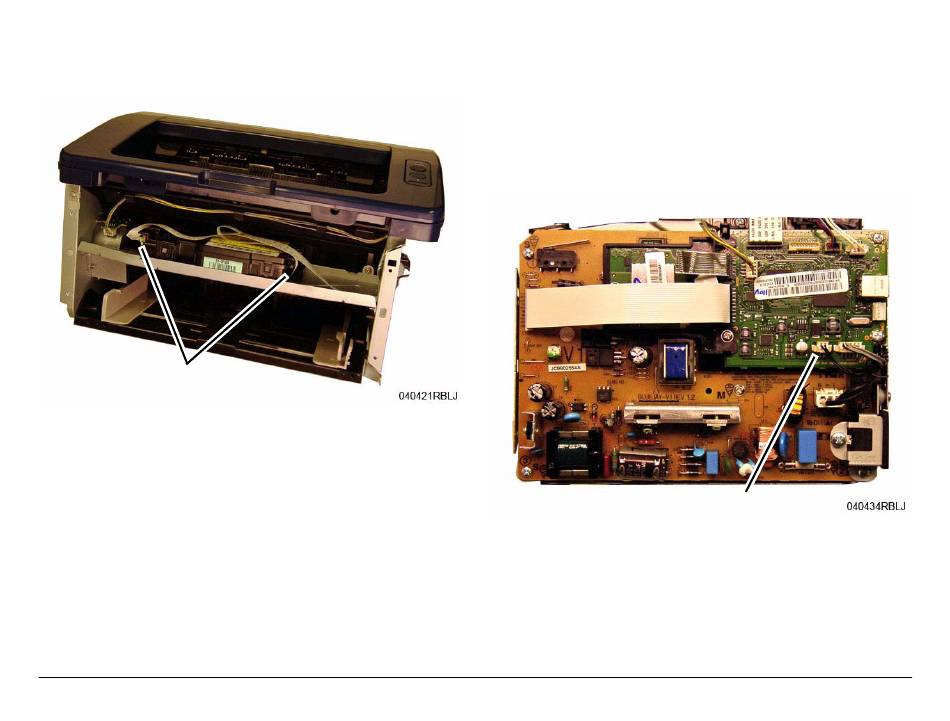

Figure 2 LSU Connectors (Front View)
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the PWB to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
Xerox® Phaser® 3020 Printer Service Manual
REP 1.16 Feed Clutch
Parts List on PL 3.3
Removal
1.
Switch Off the Printer and unplug the Power Cord.
2.
Remove the following covers:
a.
Left and Right Side Covers
b.
Rear Cover
(REP
1.3).
c.
Front Cover
(REP
1.1).
d.
Top Cover
(REP
1.4).
3.
Unplug the Feed Clutch Connector from the Main PWB
Route the wires through the frame to the left side of the printer.
Figure 1 Feed Clutch Connector
4.
Remove the Left Frame
(REP
June 2014
4-23
(REP
1.2).
(Figure
1).
Connector
1.9).
REP 1.15, REP 1.16
Repairs
