Xerox Phaser 3020 Service Manual page 60

5. Remove the top LSU cover screws (2) and the cover

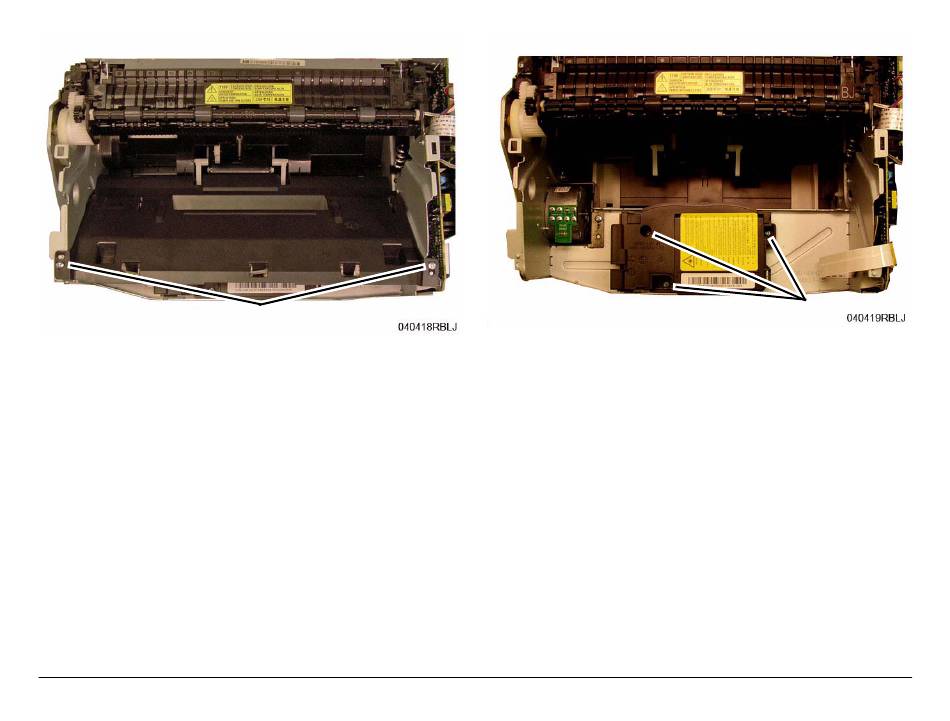

Figure 2 LSU Cover Top Screws (Top View)
Repairs
REP 1.10
(Figure 2).
Screws
6. Remove the screws (3) and the LSU
Figure 3 LSU Removal (Top View)
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the PWB to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
June 2014
4-14
(Figure 3).
Screw
Xerox® Phaser® 3020 Printer Service Manual
