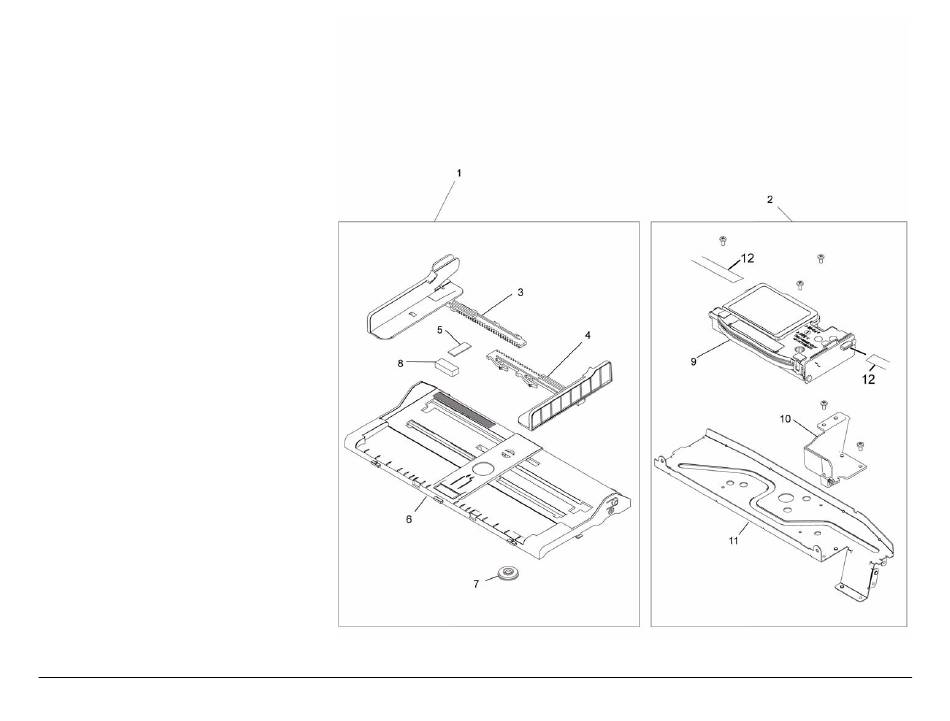

PL 3.6 Paper Tray And LSU Frame
Item
Part
Description
1
001N00549
Paper Tray
2
–
LSU Frame
3
–
Right Guide
4
–
Left Guide
5
–
Rubber Friction Pad
6
–
Bottom Plate
7
–
Pinion Gear
8
–
Sponge Damper
9
062N00293
LSU
10
–
Motor Cover
11
–
LSU Frame
12
117N01970
LSU Flat Cable
Parts Lists
PL 3.6
June 2014
5-10
Xerox® Phaser® 3020 Printer Service Manual
