Drives
The Drive System consists of the Main (BLDC) Motor, Registration and Pick-up Clutches along
with various gears for the Drum Cartridge (OPC), Fuser, Pick-up, Registration, Feed and Exit
Rollers.
General Procedures and Information
System Overview
Toner System
The Phaser® 3020 printer uses a integrated toner system. The toner cartridge, photoreceptor
and developer units are contained within the Print Cartridge.

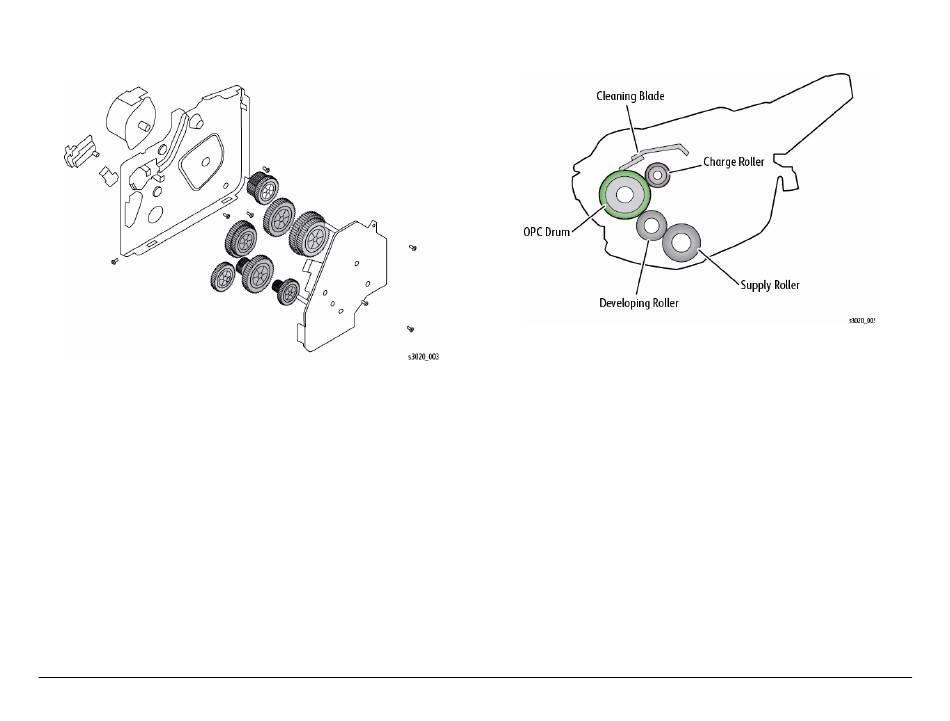

Figure 5 Integrated Toner System
