REP 1.9 Left Frame and Drive Motor

Parts List on PL 3.4
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Print Cartridge.
3. Remove the following covers:
a. Left and Right Side Covers (REP
b. Rear Cover (REP 1.3).
c. Front Cover (REP 1.1).
d. Top Cover (REP 1.4).
4. Disconnect the Drive Motor connector
Connector

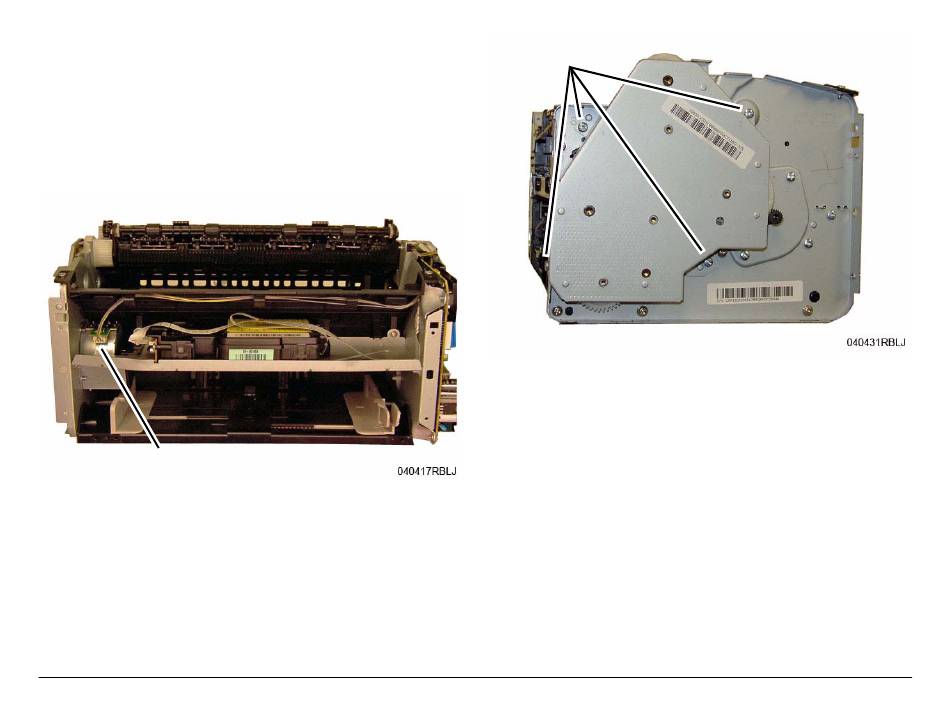

Figure 1 Drive Motor Connector (Front View)
5. Remove the Fuser Module (REP 1.14).
Xerox® Phaser® 3020 Printer Service Manual
1.2).
(Figure 1).
6. Remove the Main Drive Unit (4 screws)
Screws
Figure 2 Main Drive Unit Removal (Left View)
June 2014
4-11
(Figure 2).
REP 1.9
Repairs
