A B

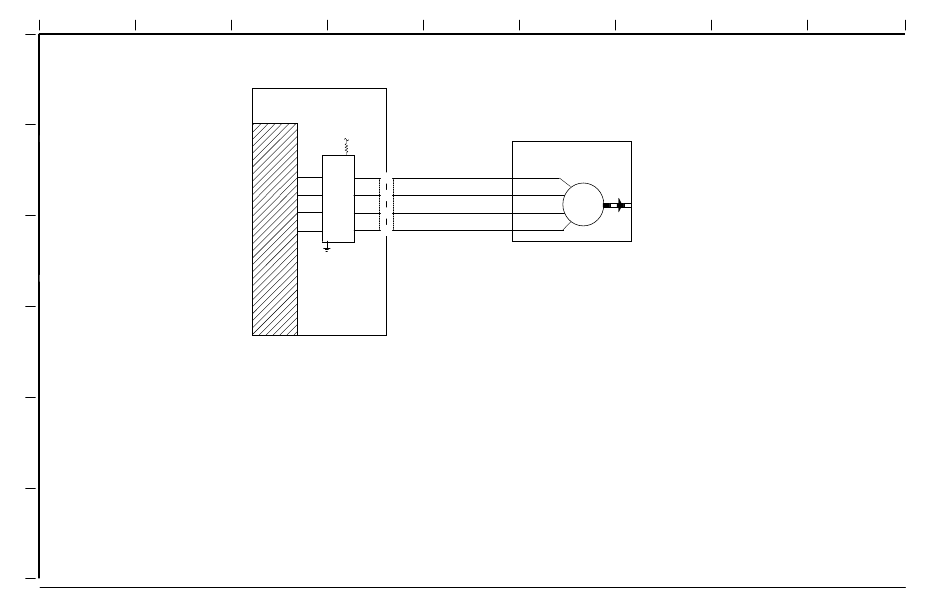

4.1 MAIN DRIVE
1
2
3
4
5
6
® ®
Xerox Phaser 3020 Printer Service Manual
C D
MAIN PWB
PL 1.1
+24 VDC
MOTOR
DRIVER
J7 P7
1
2
3
4
E F
DRIVE MOTOR
PL 3.4
PHASE A
PHASE B
MOT
PHASE C
PHASE D
June 2014
7-3
G H J
BSDs
