Rep 1.3 Rear Cover - Xerox Phaser 3020 Service Manual

4. Right Cover removal:
a. Remove the Right Cover screw (1) at the rear of the printer
b. Release the upper rear latch.
c. Release the bottom latches and the lower rear latch.
d. Release the front latches and remove the cover.
Screw

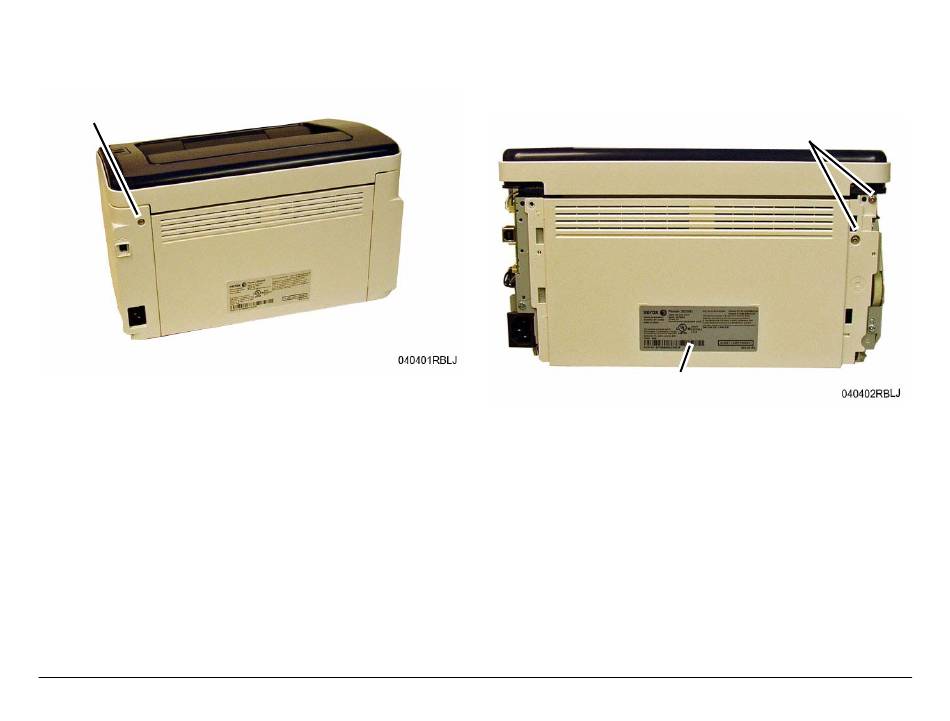

Figure 2 Right Cover Screw (Rear View)
Replacement
Install the components in the reverse of removal.
Repairs
REP 1.2, REP 1.3

REP 1.3 Rear Cover

(Figure 2).
Parts List on PL 1.1
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the Left and Right Side Covers
3. Remove the Rear Cover Screws (2) and the cover
Replacement
Important: If the Rear Cover is being replaced, remove the Data Plate Label from the old Rear
Cover and install it onto the new Rear Cover
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the PWB to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
June 2014
4-4
(REP 1.2).
(Figure 1).
Screws
Data Plate Label
Figure 1 Rear Cover Screws
(Figure 1).
Xerox® Phaser® 3020 Printer Service Manual
