NOTE: Use a small screwdriver to help release the Paper Tray from the frame.
4. Remove the Paper Tray (Figure 2).
a. Release the Paper Tray from the Left Frame.
b. Release the Paper Tray from the Right Frame.
Left Frame

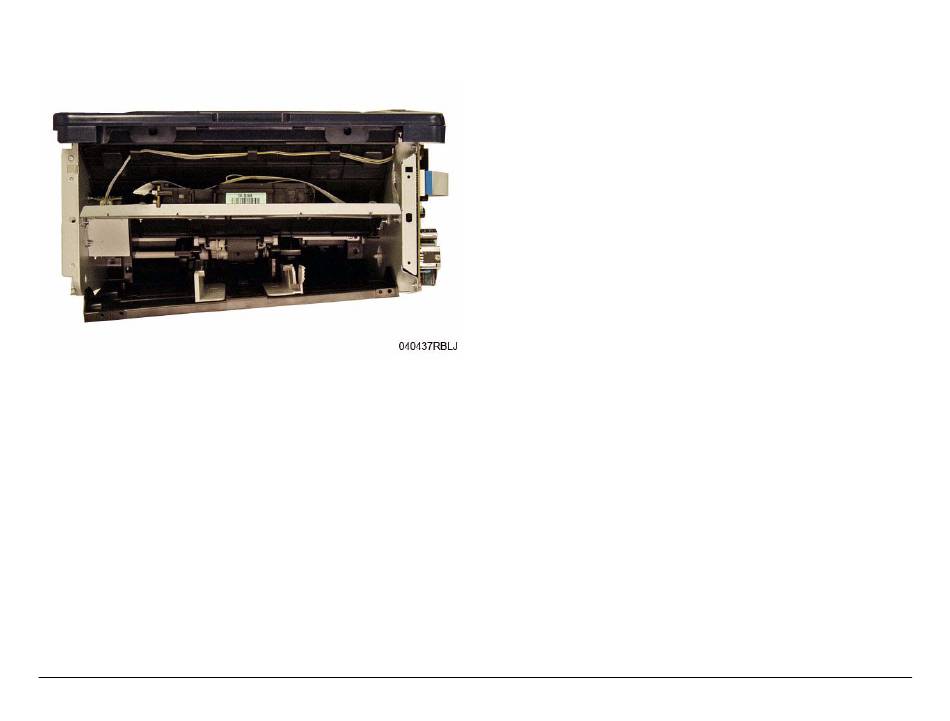

Figure 2 Paper Tray Removal (Front View)
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the PWB to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
NOTE: Make sure the Locating Pins and Tabs on the Paper Tray align with the cutouts in the
frame.
Xerox® Phaser® 3020 Printer Service Manual
Right Frame
June 2014
4-27
Repairs
REP 1.18
