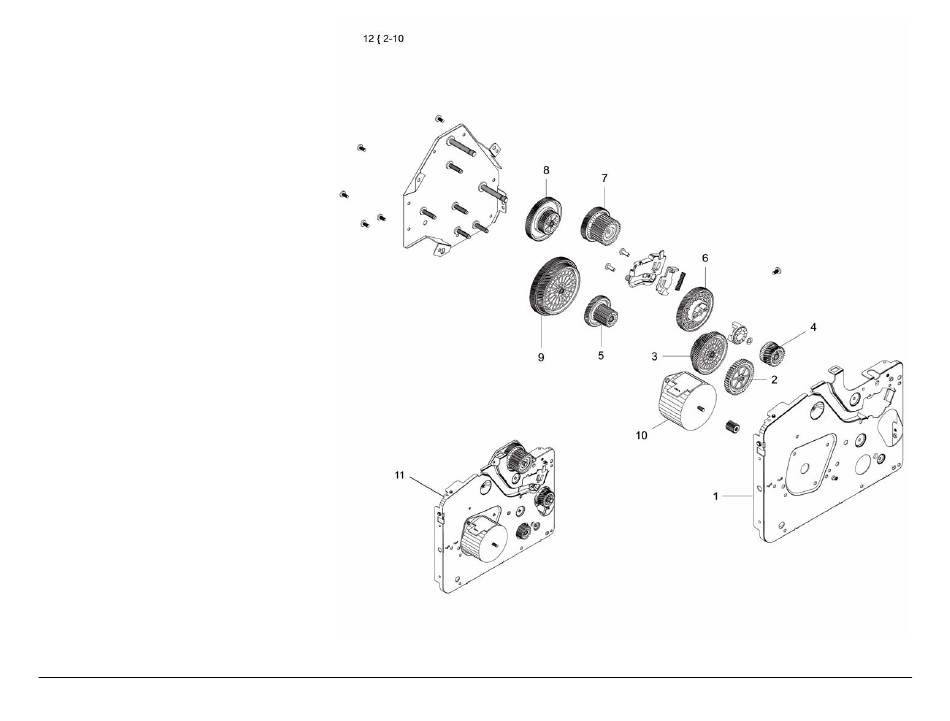

PL 3.4 Main Left Frame
Item
Part
Description
1
–
Left Frame
2
–
Feed Drive Gear
3
–
RDCN OPC Gear
4
–
Out Drive Gear
5
–
RDCN Drive Gear
6
–
Drive In Gear
7
–
Fuser Drive Gear
8
–
RDCN Fuser Gear
9
–
RDCN A Gear
10
–
Drive Motor
11
001N00548
Left Main Frame Assembly
Parts Lists
PL 3.4
June 2014
5-8
Xerox® Phaser® 3020 Printer Service Manual
