Appendix-A: Fan Control Wiring Diagram

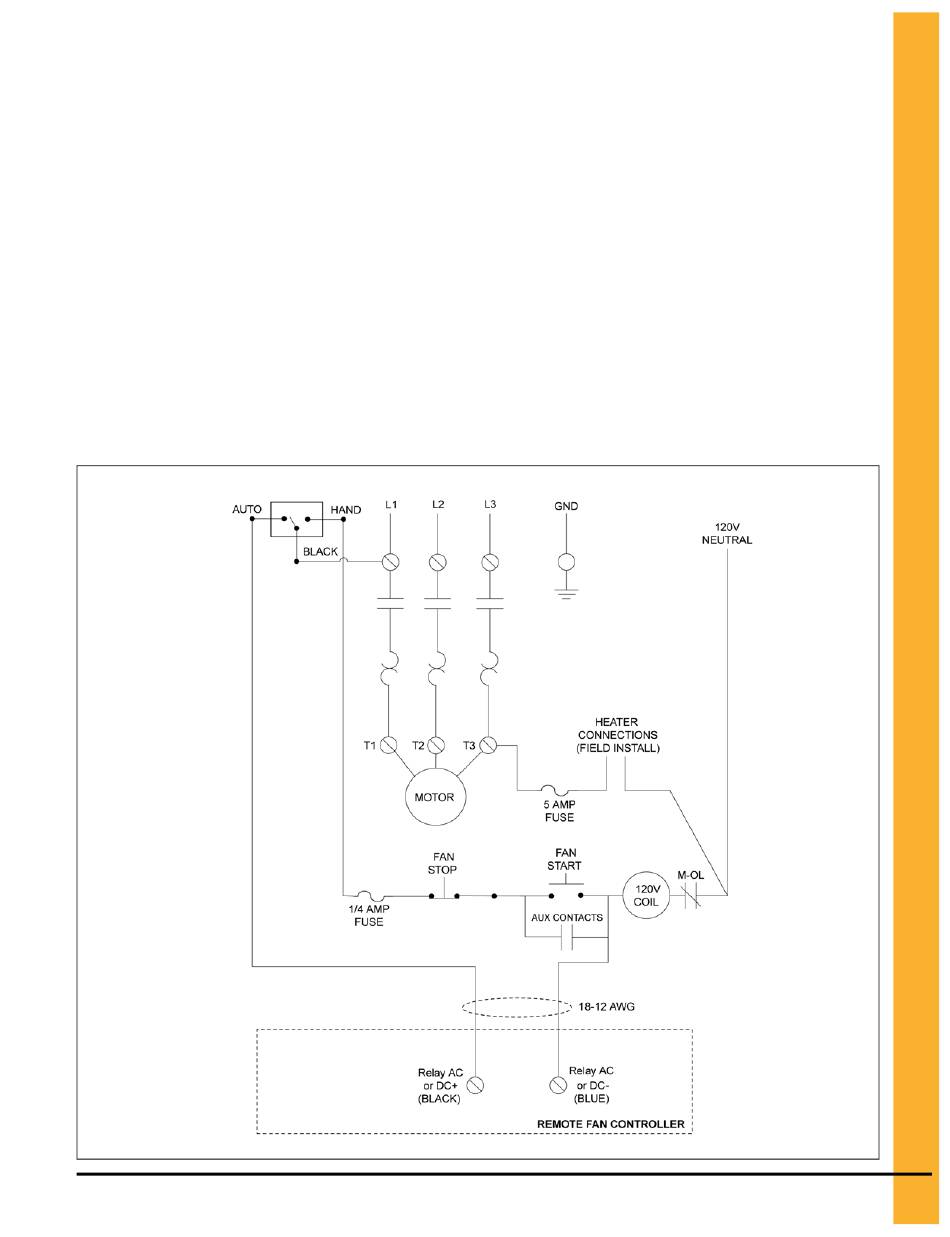

Figure 8-1 Fan control wiring (3 Phase 230 Volt Schematic)
PNEG-2347 Cable Monitoring System
