Chapter 5: Installing the Power Supply
2. Remove the pre-installed cable gland (31), circled in red.

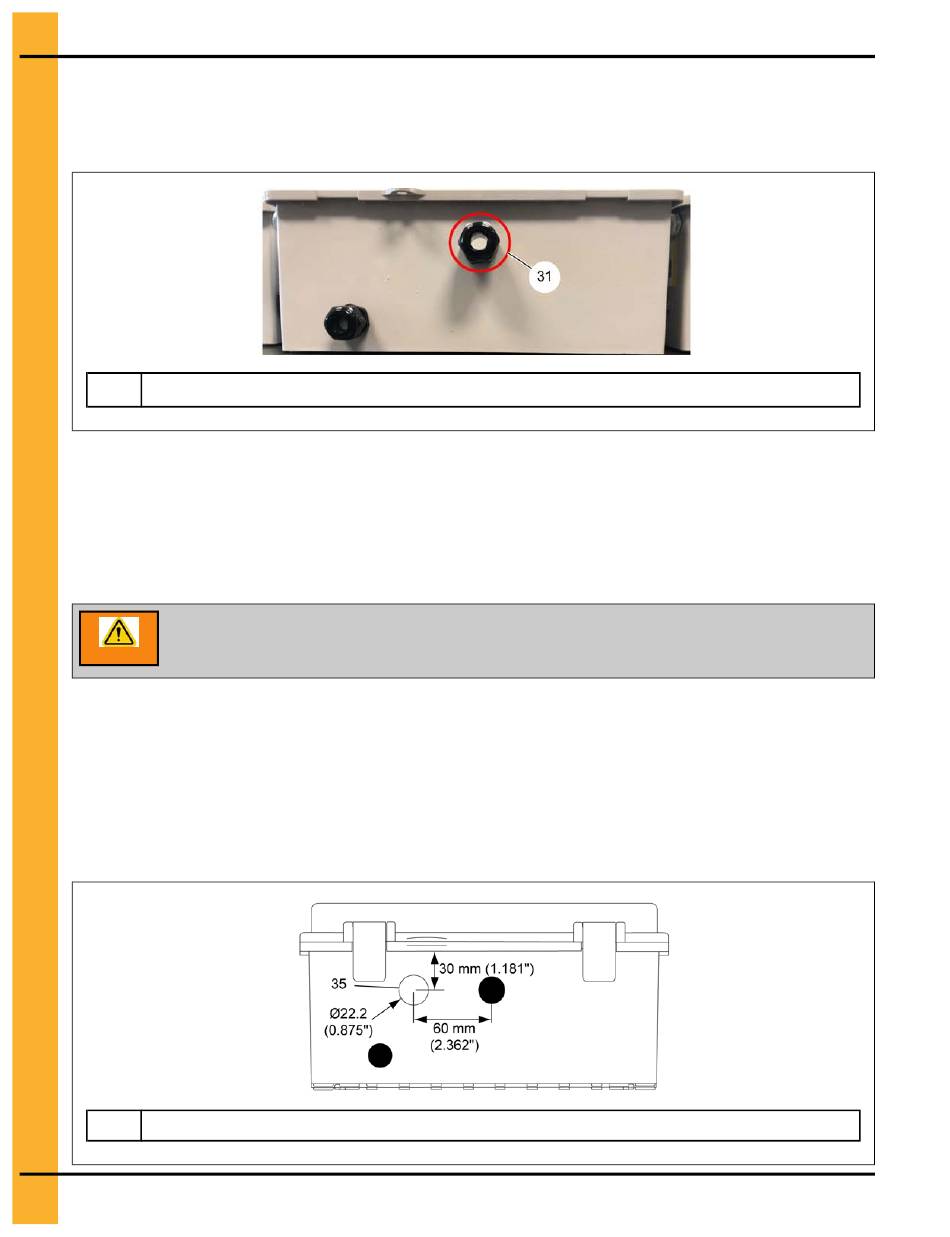

Figure 5-10 Removing the cable gland
Cable gland
31
3. Replace the removed cable gland (31) with an outdoor rated conduit fitting.
4. Run outdoor rated #14-12 AWG cable through the conduit fitting to the rail components at
connection points as shown in
5. Connect the outdoor rated cable to a circuit protected by a 250V, 4A circuit breaker.
Installing the Relay
Only a certified electrician can complete the power supply installation. Make sure all
power sources are disconnected before performing any maintenance or service.
WARNING
Always follow all national and local electrical and safety regulation for your area.
NOTE: The Fan Control Module has no manual shut off for fan control. When wiring relays, ensure that a
manual fan shut off is installed, independent from the GrainVue system.
1. Drill a hole (35) matching the size and location specified in the image below (dimensions in mm).
2. Install an outdoor rated conduit fitting in the hole that was created in the previous step.
Figure 5-11 Installing the outdoor rated conduit fitting
35 Field drill hole
36
Figure 5-9, page 35.
