3. Install the ubiquiti pole (8) onto the gateway top bracket (5) using the three pre-installed U-bolt sets
(9).

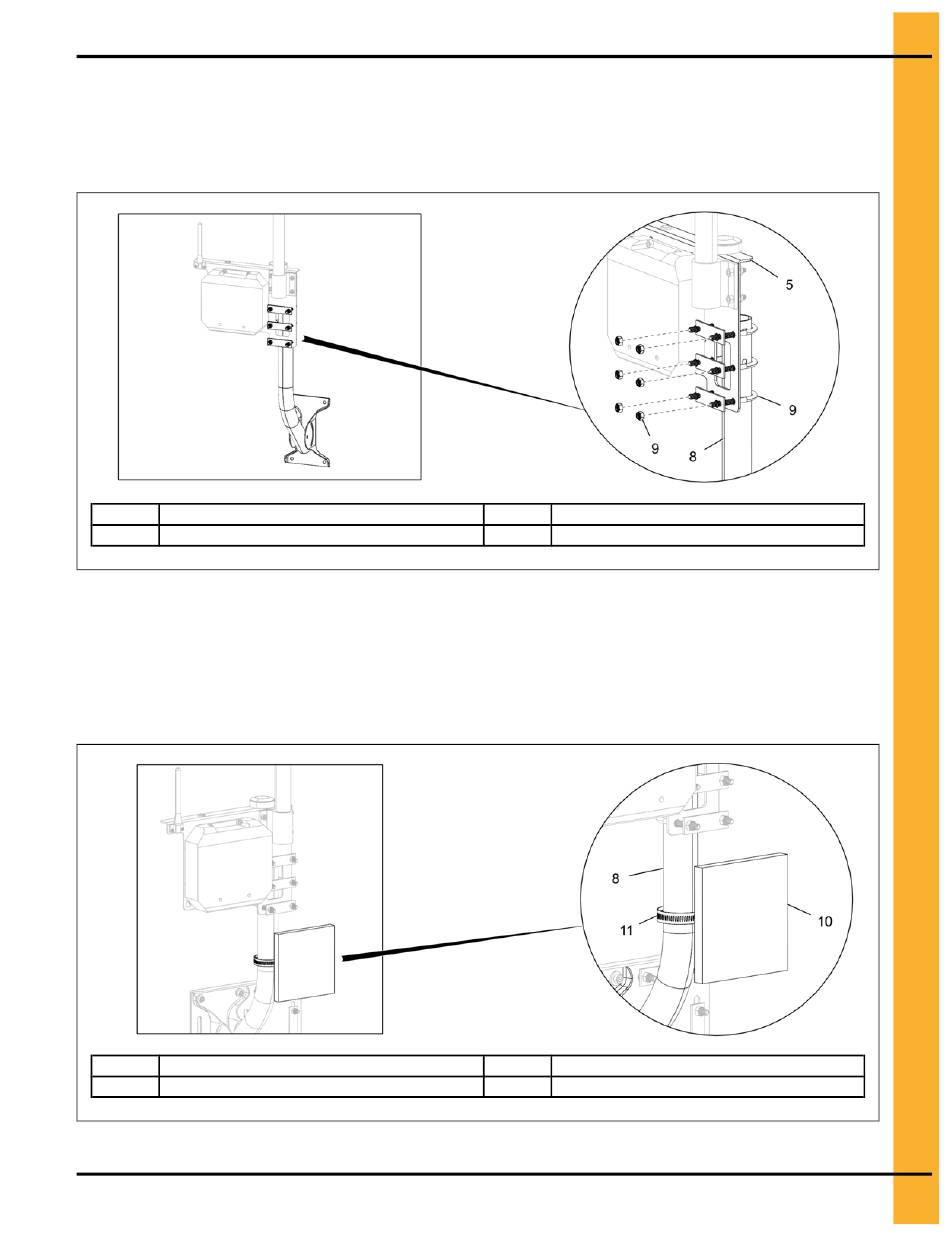

Figure 2-6 Installing the ubiquiti pole
5
Gateway top bracket
8 Ubiquiti pole
4. Install the WiFi and cell gateway kits.
a. For cell gateway kits: Install the LTE omnidirectional antenna (10) onto the ubiquiti pole (8) using
the pre-installed gear clamp (11).
Figure 2-7 Installing the LTE antenna
8 Ubiquiti pole
10 LTE omnidirectional antenna
PNEG-2347 Cable Monitoring System
Chapter 2: Gateway Installation
9 U-bolt set
11 Gear clamp
