GSi GrainVue Installation Manual page 16

Chapter 2: Gateway Installation
What You Should Know
The Gateway PSU must be installed in a location that has sufficient air circulation around the box.
Minimum clearance is 22" W x 27" H to ensure protection against electrical conducted noise.
NOTE: Refer to the custom site map for the recommended PSU installation location.
1. Fasten two cable glands (31) into the pre-drilled holes in the Gateway PSU (2) enclosure.
NOTE: These cable glands (31) can be found packaged inside of the enclosure.

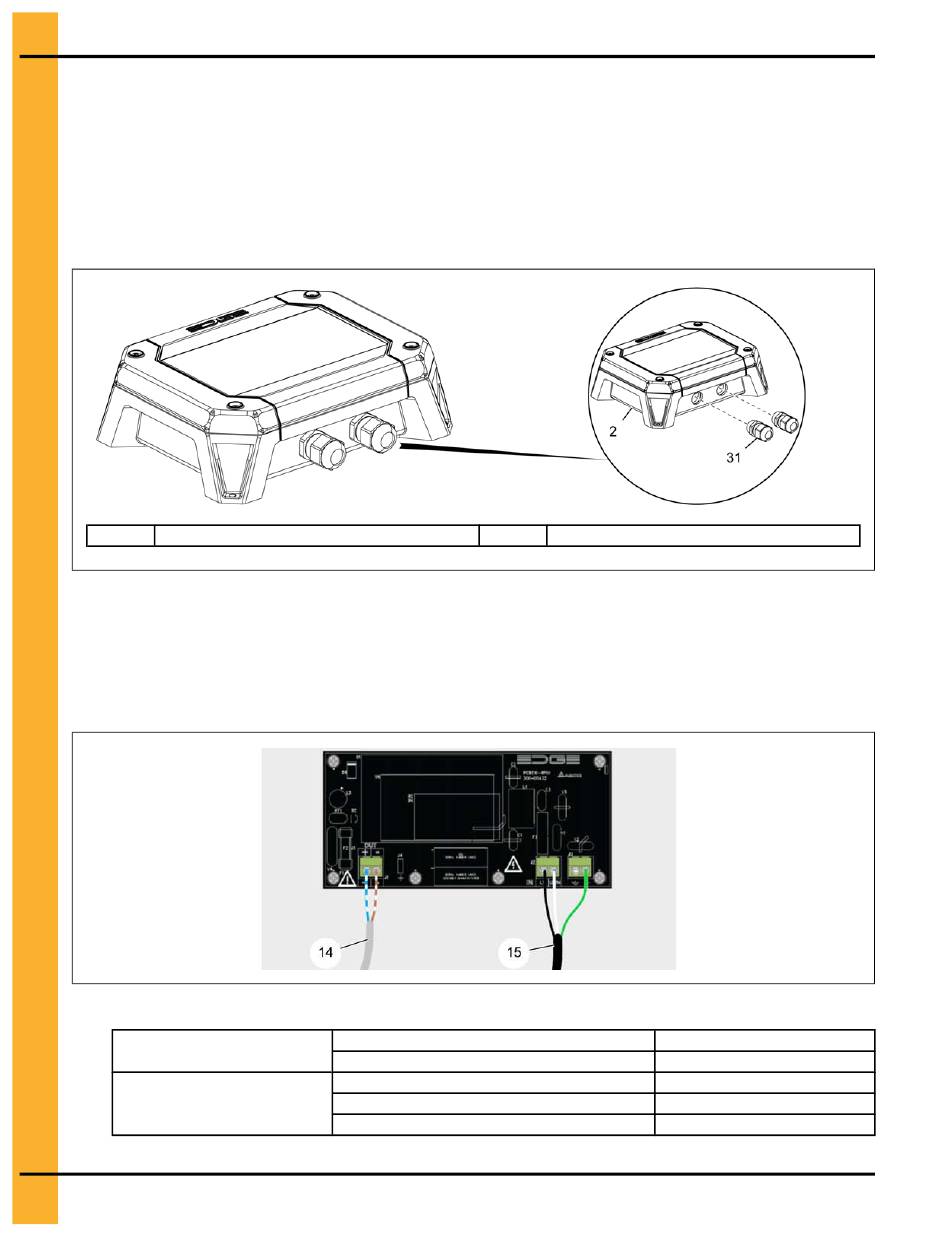

Figure 2-1 Installing the cable glands to the Gateway PSU enclosure
2 Gateway PSU
2. Insert the provided ethernet cable (14) and power cable (15) through the cable glands (31) and
terminate them into the Gateway PSU PCBA terminal blocks. Refer to the
Table 2-1, page 16
Figure 2-2 Gateway PSU PCBA terminal blocks
Table 2-1 Ethernet cable and power cable mapping details
Ethernet Cable (14)
Power Cable (15)
16
for proper cable mapping.
Blue/White + Blue
Brown/White + Brown
31 Cable gland
Black
White
Green
PNEG-2347 Cable Monitoring System
Figure 2-2, page 16 and
+
-
L1
N
Ground
