3. Run #18-12 AWG wire through the outdoor rated conduit fitting and wire the control signals in the
provided 6-position terminal block (36) as shown in

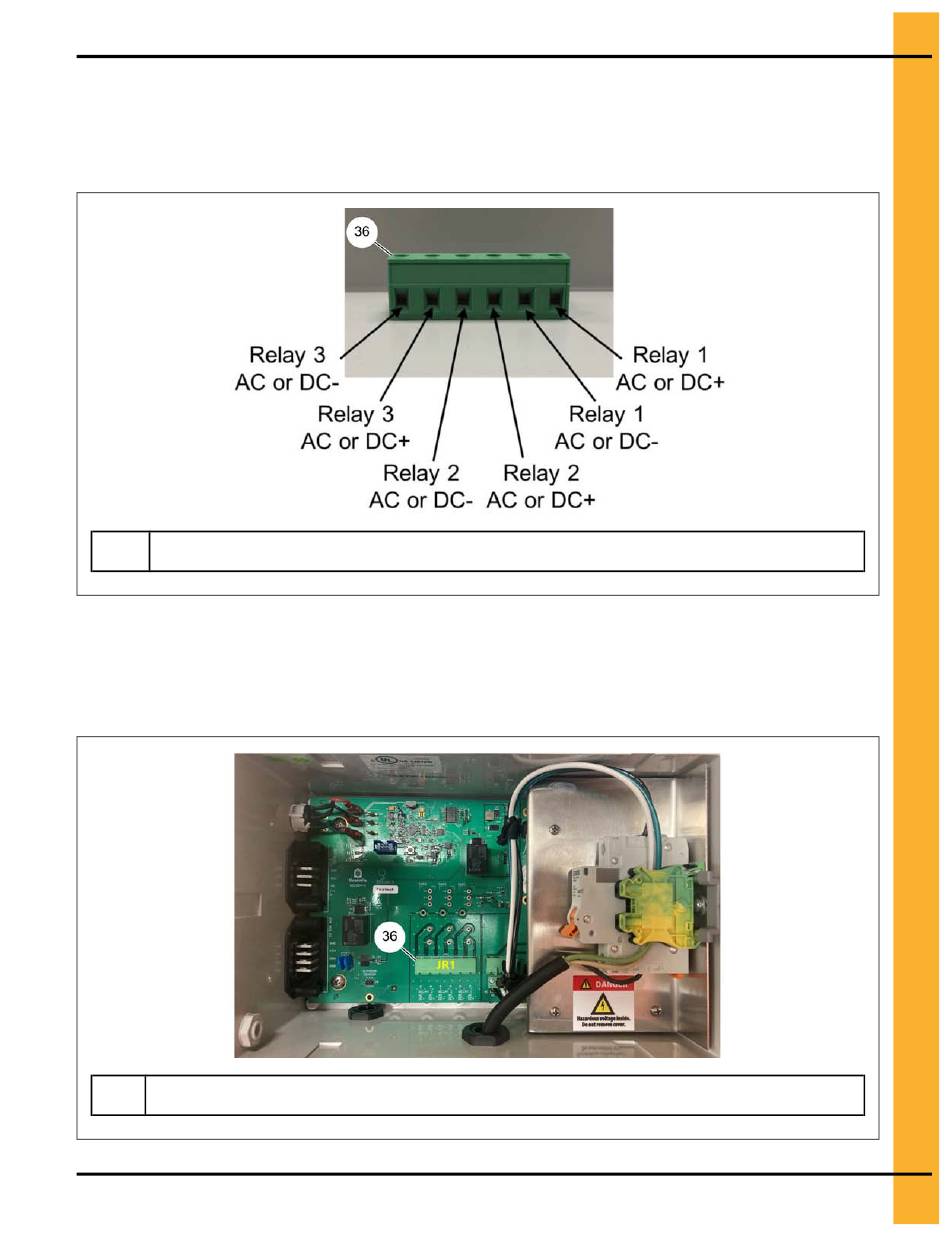

Figure 5-12 6-position terminal block
6-position terminal block
36
4. Plug the 6-position terminal block (36) into the JR1 receptacle which is labelled in
37 (make sure the block latches in place).
Figure 5-13 Plugging the 6-position terminal block into JR1 receptacle
6-position terminal block
36
