Installing the Permanent Power Cable
Only a certified electrician can complete the power supply installation. Make sure all
power sources are disconnected before performing any maintenance or service.
WARNING
Always follow all national and local electrical and safety regulation for your area.
1. Disconnect and remove the supplied power cable (15) from the Power Supply Unit (20) as shown in
Figure 5-4, page 31.
2. Remove the pre-installed cable gland (31) from the Power Supply Unit (20).

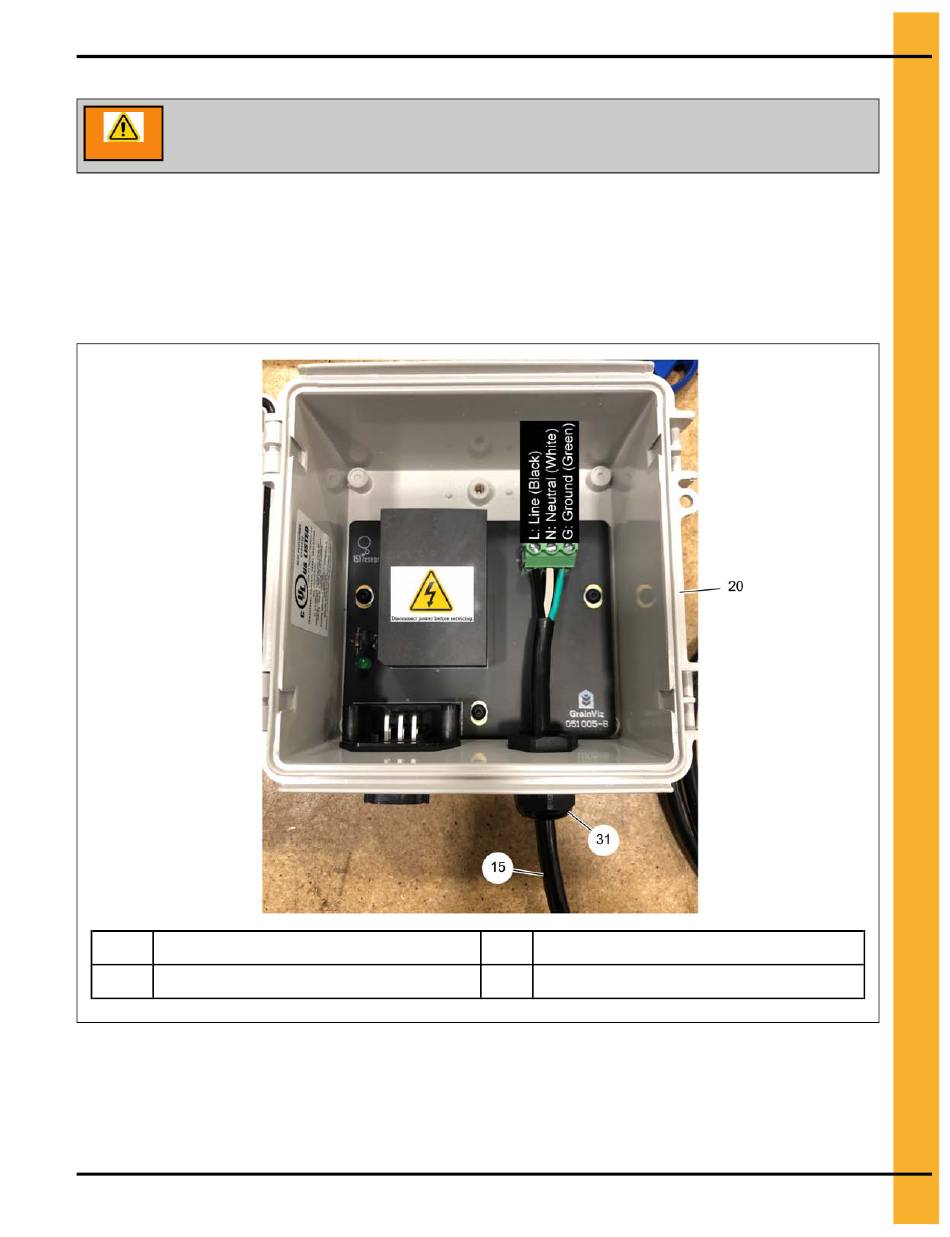

Figure 5-4 Removing the power cable and the cable gland from the Power Supply Unit
15 Power cable
Power Supply Unit
20
3. Replace the removed cable gland (31) with an outdoor rated conduit fitting.
4. Run outdoor rated #14-12 AWG cable through the conduit fitting to the terminal block connections
as shown in Figure 5-4, page
5. Connect the outdoor rated cable to a circuit protected by a 250V, 1A circuit breaker.
