Chapter 6: Connecting the T/RH Cables
3. Use the 2 m interconnect cable (50) protruding from the Mux Whip (22) to connect the Mux Whip
(22) to the cable connection port (28) in the Cable Monitoring Hub (16).
NOTE: Make sure to secure the interconnect cable (50) every 3' using P-clips.

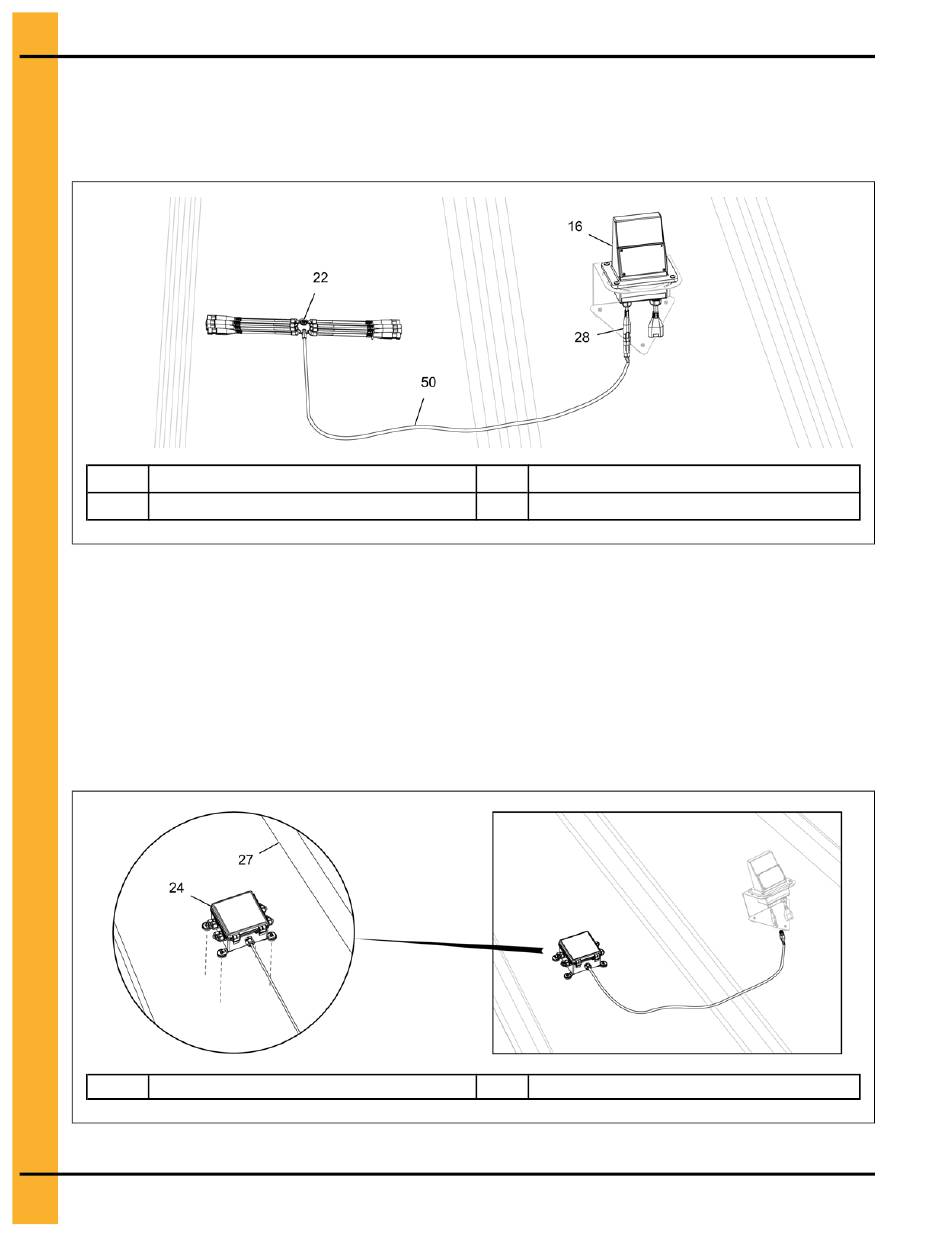

Figure 6-4 Connecting the Mux Whip to the Cable Monitoring Hub
Cable Monitoring Hub
16
Mux Whip
22

OPTION 3: Installing and Connecting the Mux Box

The Mux Box needs to be installed on the bin roof in a location that allows access to the Cable Monitoring
Hub and the various T/RH cables that are installed in the bin.
1. Install the Mux Box (24) onto the bin roof (27) by pressing the pre-installed magnetic feet against the
bin roof (27).
NOTE: Since the Mux Box (24) interconnect cable is 2 m (6.5'), make sure that the distance between
the Mux Box (24) and the Hub is not more than 2 m (6.5').
Figure 6-5 Installing the Mux Box onto the bin roof
24 Mux Box
46
Cable connection port
28
Mux Whip Interconnect Cable
50
27 Bin roof
