Chapter 5: Installing the Power Supply
Connecting the Fan Control Module to the Cable Monitoring Hub
Use the Cable Hub to Fan Control Module Cable (19) to connect the side port marked as "Top Box" on the
Fan Control Module (18) to the power supply port (29) in the Cable Monitoring Hub (16).
NOTE: Manage the cable (19) every 3' using P-clips.

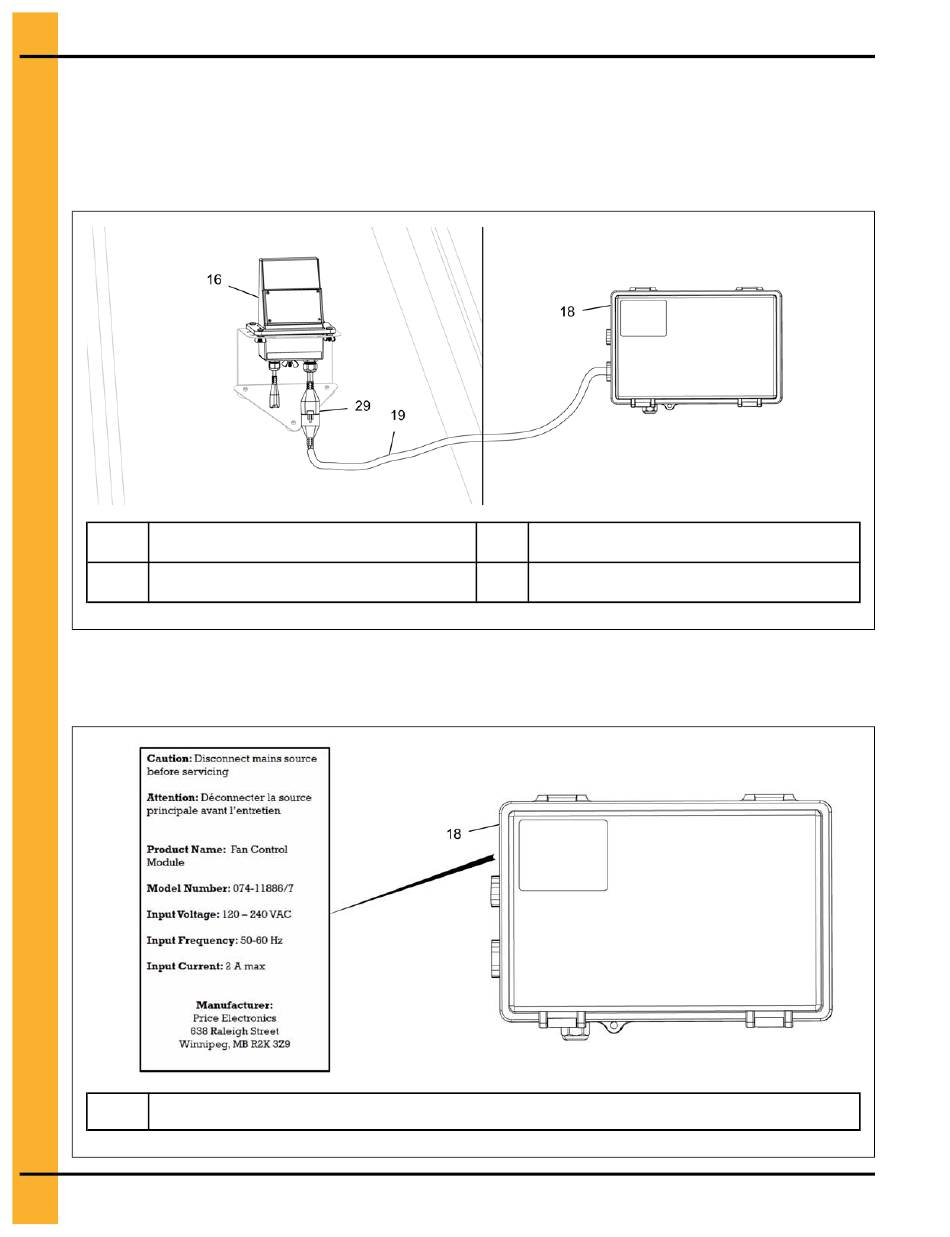

Figure 5-7 Connecting the Fan Control Module to the Cable Monitoring Hub
Cable Monitoring Hub
16
18 Fan Control Module
NOTE: Figure 5-8, page 34
information can also be found on the outside of the module.
Figure 5-8 Fan Control Module - electrical specification
18 Fan Control Module
34
shows the electrical specifications for the Fan Control Module (18). This
19 Cable Hub to Fan Control Module Cable
Power supply port
29
