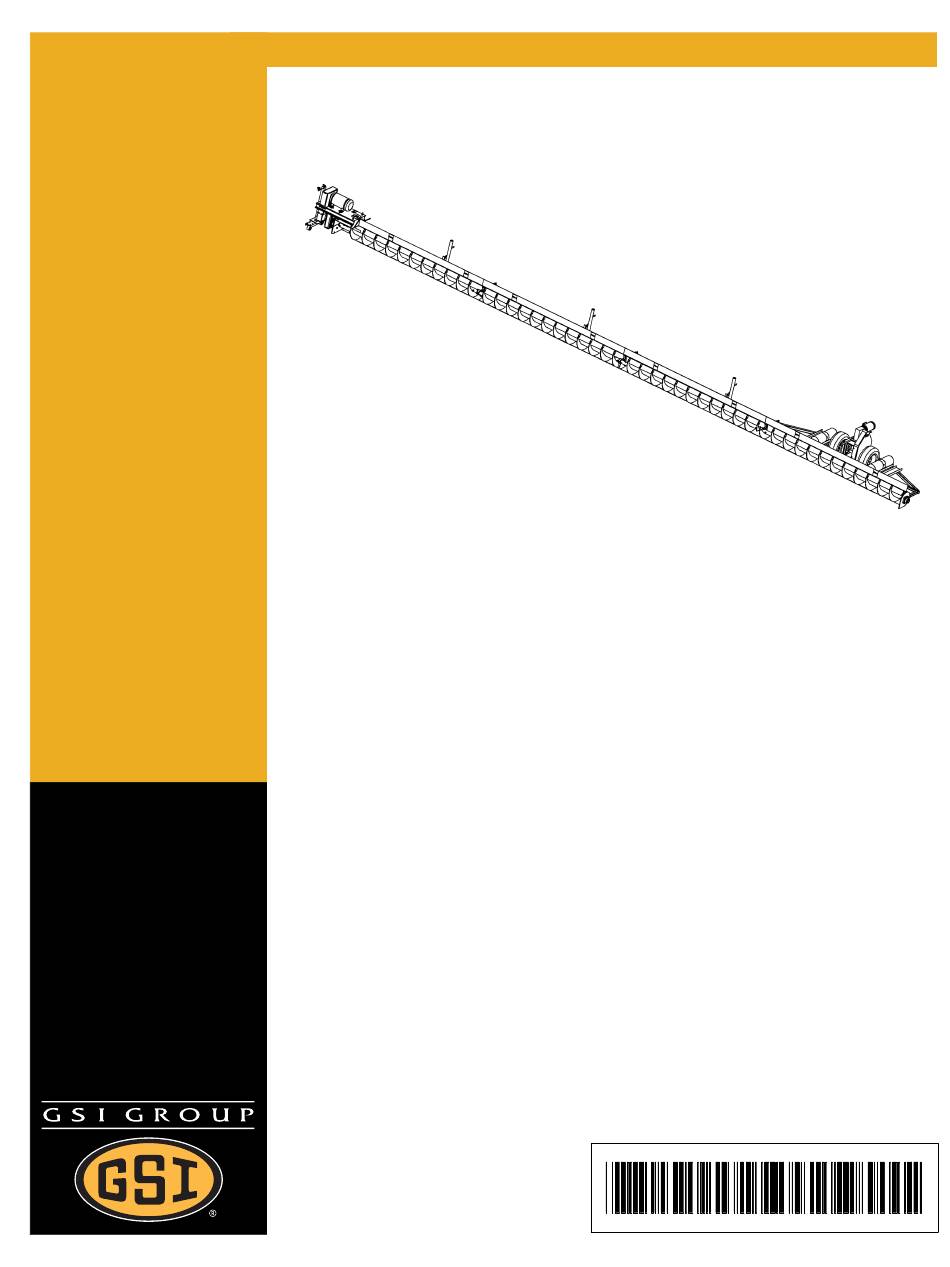

12" and 16" Series II
Knock Down Sweep
Owner's Manual
PNEG-720-KD
Date: 03-21-08
PNEG-720-KD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 12" II Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GSi 12" II Series

Summary of Contents for GSi 12" II Series

  • Page 1 12" and 16" Series II Knock Down Sweep Owner’s Manual PNEG-720-KD Date: 03-21-08 PNEG-720-KD...
  • Page 2 Model Number of My Sweep: __________________________________ Date Delivered: __________________________________ Date Installed: __________________________________ NOTE: The manufacturer reserves the right to improve its product whenever possible and practical to do so. We reserve the right to change, improve and modify products at any time without obligation to make changes, improvements and modifications on equipment sold previously.

  • Page 3: Table Of Contents

    Table of Contents Contents Chapter 1 Safety ..............................5 Safety Guidelines ..........................5 Safety Instructions ..........................6 Operator Qualifications ........................9 Chapter 2 Safety Decals ........................... 10 Chapter 3 Introduction ............................14 Product Introduction ......................... 14 Chapter 4 General Product Information ......................16 Product Information ..........................
  • Page 4 Table of Contents Chapter 10 Control Panel Diagrams ........................ 73 Control Panel Schematic (460/3/60) ....................73 Control Panel Schematic (230/3/60) ....................74 Control Panel Schematic (380/3/50) ....................75 Chapter 11 Troubleshooting ..........................76 FAQs ............................... 77 Chapter 12 Parts List ............................85 Main Auger Components ........................

  • Page 5: Chapter 1 Safety

    1. Safety Safety Guidelines This manual contains information that is important for you, the owner/operator, to know and understand. This information relates to protecting personal safety and preventing equipment problems. It is the responsibility of the owner/operator to inform anyone operating or working in the area of this equipment of these safety guidelines.

  • Page 6: Safety Instructions

    1. Safety Safety Instructions Our foremost concern is your safety and the safety of others associated with this equipment. We want to keep you as a customer. This manual is to help you understand safe operating procedures and some problems which may be encountered by the operator and other personnel. As owner and/or operator, it is your responsibility to know what requirements, hazards and precautions exist, and to inform all personnel associated with the equipment or in the area.
  • Page 7 1. Safety Follow Safety Instructions Carefully read all safety messages in this manual and safety signs on your machine. Keep signs in good condition. Replace missing or damaged safety signs. Be sure new equipment components and repair parts include the current safety signs. Replacement safety signs are available from the manufacturer.
  • Page 8 1. Safety Practice Safe Maintenance Understand service procedures before doing work. Keep area clean and dry. Never lubricate, service, or adjust machine while it is in operation. Keep hands, feet and clothing away from rotating parts. Keep all parts in good condition and properly installed. Fix damage immediately.

  • Page 9: Operator Qualifications

    1. Safety Operator Qualifications A. The User/Operator must be competent and experienced to operate auger equipment. Anyone who works with or around augers must have good common sense in order to be qualified. These persons must also know and meet all other qualifications, such as: i.

  • Page 10: Chapter 2 Safety Decals

    NOTE: Please remember safety signs provide important safety information for people working near bin unloading equipment that is in operation. Any safety signs that are worn, missing, illegible or painted over should be replaced immediately. Obtain FREE replacements by contacting GSI. PNEG-720-KD 12" and 16" Series II Knock Down Sweep...
  • Page 11 2. Safety Decals SHEAR POINT Moving parts can crush and cut. Keep hands clear of sprocket and chain. DC-1386 Decal “A” Location: Exterior of chain guard ROTATING AUGER! Size: 2" x 4-1/2" • DISCONNECT AND LOCKOUT POWER BEFORE Part No.: DC-1386 SERVICING, ADJUSTING OR CLEANING.
  • Page 12 2. Safety Decals WARNING SHEAR POINT SHEAR POINT Keep hands clear of moving Keep hands clear of moving parts. Do not operate with parts. Do not operate with guard removed. Disconnect guard removed. Disconnect and lockout power before and lockout power before servicing.
  • Page 13 2. Safety Decals A. DANGER Sign No. DC-1395 was supplied with your bin unloading equipment. This safety sign should be applied to the side of the bin near the bin opening, so it will be viewed by people entering into the bin storage building. Do not cover any safety signs or any other signs that are already there.

  • Page 14: Chapter 3 Introduction

    The main function of the Series II Sweep is to clean out the remaining grain, from the bin, after all gravity unloading has finished. The GSI Series II Sweep is a single pass sweep only. The unit will only operate in a round grain bin equipped with a center sump in the bin floor.
  • Page 15 21-1/4" x 51-1/2". Again, if the bin wall is not too thick, the section should fit through an opening 21-1/2" x 45". GSI offers a special Knock Down Sweep, uniquely designed for storage units with small doors. This sweep is broken into 10 main pieces that can fit through a door as small as 30-1/2"...

  • Page 16: Chapter 4 General Product Information

    Disconnect and lock out power before entering the bin or servicing the equipment. General Information A. GSI reserves the right to improve its product whenever possible and practical to do so. We reserve the right to change, improve and modify products at any time without obligation to make changes, improvements and modifications on equipment sold previously.
  • Page 17 4. General Product Information D. The Chart below shows radius dimensions locating the points of contact between the sweep and the bin floor. The dimensions may be used to figure material quantities of track to support the sweep across the aeration flooring. The track material is not supplied with the sweep and must be supplied by the installer.

  • Page 18: Capacities And Specifications

    50.85' (15.50 m) 113' 54.79' (16.70 m) 54.85' (16.72 m) 120' 58.79' (17.92 m) 58.85' (17.94 m) Due to continual improvements, GSI designs and specifications are subject to change without notice. PNEG-720-KD 12" and 16" Series II Knock Down Sweep...
  • Page 19 4. General Product Information NOTE: The horsepower recommendations are for augering reasonably dry grain. High moisture grain (greater than 15%) will require greater power for maximum capacity. NOTE: Sweep drive and carrier wheels require plates or track over aeration flooring for travel and supports not supplied with the sweep unit.
  • Page 20 4. General Product Information Torque values to be used when tightening the bolts on the Series II Sweep It takes more force to tighten a 3/4-10 bolt than to tighten a 1/2-13 bolt because of its larger diameter. It also takes more force to tighten a Grade 8 bolt than it does to tighten a Grade 5 bolt because of the greater material strength.
  • Page 21 Wedging forces in the bushing saw slot, such as that exerted by a narrow edged regular screw driver, may damage or break the bushing. This damage would not be covered under the GSI warranty. Do not lubricate the bushing taper, bushing bore, hub taper or the shaft. Doing so could result in breakage of the product.

  • Page 22: Q-D Bushings - Reverse Mounting

    4. General Product Information Q-D Bushings - Reverse Mounting Figure 4C Overhead View of Q-D Bushing Figure 4B To Install 1. Clean shaft, bore of bushing, outside of bushing and hub bore of all oil, paint and dirt. File away burrs. 2.
  • Page 23 4. General Product Information To Remove 1. Remove all cap screws. 2. Insert the cap screws into the threaded jack hole or holes. 3. Tighten all the jackscrews alternately and evenly beginning with the screw farthest from the bushing saw slot. Tighten until the bushing grip is released. Slide the unit off the shaft. Do not lubricate the bushing taper, bushing bore, hub taper or the shaft.

  • Page 24: Chapter 5 Assembly

    5. Assembly Assemble Main Sweep Components A. Assemble Head Section 1. Insert frame plates into the pocket weldments located on the back of the head section. 2. Fasten together using nine (9) 3/4"-10 x 2" alignment locking bolts and lock washers. (See Figure 5A.) Figure 5A B.
  • Page 25 5. Assembly C. Assemble Tail Section 1. Insert frame plates into the pocket weldments located on the back of the tail section. 2. Fasten front tail frame to tail section using four (4) 3/4"-10 x 2" alignment locking bolts and lock washers.
  • Page 26 5. Assembly 4. Fasten tractor drive stand to tractor mount using six (6) 1/2"-13 x 1-1/2" HHCS bolts, flat washers and hex nuts. (See Figure 5E.) Figure 5E 5. For 12" sweep, place back tail frame into notch at back of motor mount. For 16" sweep place back tail frame on top motor mount.
  • Page 27 5. Assembly 7. Fasten counter weight channels to tail frame using eight (8) 1/2"-13 x 3" HHCS bolt, split lock washers and hex nuts. (See Figure 5G.) Figure 5G 8. Fasten splice plates to tail frame using eight (8) 1/2"-13 x 3" HHCS bolt, split lock washers and hex nuts.

  • Page 28: Back Shield Assembly

    5. Assembly Back Shield Assembly A. The sweep has been broken down into four (4) different section types: the head, intermediate, tail and extension sections. NOTE: Use the Chart below to determine the identification and the order of assembly of the individual sweep sections.
  • Page 29 5. Assembly B. (All 16" Models and 12" Models with extensions.) Assemble the end caster to the end caster assembly using the 1/2" x 3-1/2" clevis pin and 1/8" pin clip as shown in Figure C. Attach the end caster assembly to the end of the tail section using two (2) 1"-8 hex nuts. Figure 5I D.

  • Page 30: Flighting Assembly

    5. Assembly Flighting Assembly A. Lay out the flight sections in order of assembly starting with the head flight working towards the tail flight. B. Using the connecting stubs, bolt the flight sections together with hex bolts and lock nuts. Make sure the flight ends are in time with each other.

  • Page 31: Hanger Bracket Assembly

    5. Assembly Hanger Bracket Assembly A. Bolt the nylon bearings and hanger brackets to the connecting stubs using hex bolts, lock washers and hex nuts as shown in Figure Figure 5M B. Bolt the hanger brackets to the back shields using two (2) 5/8"-11 x 2" hex bolts, two (2) square washers, two (2) lock washers and two (2) hex nuts as shown in Figure Figure 5N...

  • Page 32: Flange Bearing Assembly

    5. Assembly Flange Bearing Assembly A. Slide the flange bearing onto the end stub and bolt it to the end plate using hex bolts, lock washers and hex nuts as shown in Figure NOTE: Do not tighten the set screws on the bearing at this time. This can be done after the gear reducer is installed.

  • Page 33: Drive Axle Assembly And Bearing Support

    5. Assembly Figure 5P The gear reducer is NOT filled with oil from the factory. For gear reducer specifications and oil fill recommendations, refer to the Lubrication section on Page 67 of this manual. Drive Axle Assembly and Bearing Support A.
  • Page 34 5. Assembly E. Bolt the bearing support brackets to the legs of the tractor drive stand using 1/2" x 1-3/4" bolts, 1/2" lock washers, 1/2" bevel washers and 1/2" hex nuts. (See Figure 5S.) NOTE: Parts of drive stand leg removed for clarity. Figure 5S F.

  • Page 35: Install Reducer Mounting Plate And Reducer

    5. Assembly Install Reducer Mounting Plate and Reducer A. Attach the C-Face reducer to the mounting plate using four (4) 1/2"-13 x 1-1/4" hex bolts and lock washers. (See Figure 5U.) B. Fasten the reducer mounting plate to the tail section plate using four (4) 5/8"-11 x 6" all-thread rods and sixteen (16) hex nuts.

  • Page 36: Key Alignment

    5. Assembly Key Alignment All keys should be parallel to the drive shaft. If the key is not straight (parallel) the gear box quill sleeve will crack. THIS TYPE OF DAMAGE IS NOT COVERED BY WARRANTY. A. Place key in keyway on drive shaft. B.

  • Page 37: Install Tractor Drive Motor

    5. Assembly C. Line up keyway on shaft with keyway on reducer and insert shaft into motor. (See Figure 5W.) Figure 5W Install Tractor Drive Motor A. Bolt the C-Face motor to the reducer using hex bolts, lock washers and a key. (See Figure 5X on Page 38.) (See the note on Page 38 for bolt size.)

  • Page 38: Guard Assembly

    5. Assembly NOTE: 56C Frame Four (4) 3/8"-16 x 1-1/4" Hex Bolts and 3/16" x 3/16" x 1" Key 143TC Frame Four (4) 3/8"-16 x 1-1/4" Hex Bolts and 3/16" x 3/16" x 1" Key 182TC Frame Four (4) 1/2"-13 x 1-1/4" Hex Bolts and 1/4" x 1/4" x 1" Key Figure 5X Guard Assembly A.
  • Page 39 Wedging forces in the bushing saw slot, such as that exerted by a narrow edged regular screw driver, may damage or break the bushing. This damage would not be covered under the GSI warranty. PNEG-720-KD 12" and 16" Series II Knock Down Sweep...

  • Page 40: Tractor Wheel Assembly

    5. Assembly Tractor Wheel Assembly A. Assemble the tires to the drive axle assembly using ten (10) 7/16" lock washers and hex nuts. (See Figure 5Z.) NOTE: Tires go on backwards as shown in Figure Figure 5Z PNEG-720-KD 12" and 16" Series II Knock Down Sweep...

  • Page 41: Counterweight Placement

    5. Assembly Counterweight Placement A. Place an equal number of counterweights on each side of the drive assembly on the six inch (6") channels that are welded to the tail section. Use proper lifting procedures and equipment when lifting counterweights. Each counterweight weighs 175 pounds.

  • Page 42: Channel Extension Kit For Sweeps Used In 72' Diameter Bins And Larger

    5. Assembly Channel Extension Kit for Sweeps Used in 72' Diameter Bins and Larger A. 72' sweeps and larger need an extension kit installed. B. Attach the center weight weldments to the adjustable center weight channel using eight (8) 1/2" x 1-1/4" bolts, split lock washers and hex nuts. The adjustable center weight has three sets of holes for the center weight weldments to adjust the weights.

  • Page 43: Motor Jack And Base Assembly

    5. Assembly Motor Jack and Base Assembly A. Attach the Motor Mount Base Assembly to the Head Section using four (4) 3/4" x 2" bolts, lock washers and hex nuts. (See Figure 5AD.) B. Attach the Motor Jack Assembly to the Motor Mount Base Assembly using four (4) 1/2"-13 x 1-1/2"...

  • Page 44: Motor Installation

    5. Assembly Motor Installation A. Level the Top Plate Assembly by adjusting the 1" nuts and washers on the adjustment rods. (See Figure 5AE.) B. Line up the end face of the shafts as closely as possible before bolting motor to mounting plate. (See Figure 5AE_A.) Motor bolt (See chart below for size.)

  • Page 45: Sheave Installation

    Wedging forces in the bushing saw slot, such as that exerted by a narrow edged regular screw driver, may damage or break the bushing. This damage would not be covered under the GSI warranty. NOTE: Owners and installers of 7000 bushel per hour Series II Sweeps using 230/460/575 Volt, 60 Hertz power should note that the belt drive for a 7000 bushel per hour sweep uses a special “Speed Up”...
  • Page 46 5. Assembly D. Slide the bushing and small sheave onto the motor shaft with a key. (See Figure 5AG.) Figure 5AG E. Align the sheaves with a straight edge to assure proper alignment and tighten the screws on the bushings. (See Figure 5AG.) F.

  • Page 47: Electrical Assembly

    5. Assembly G. Loosely bolt the bottom belt guard to the motor mount using four (4) 3/8"-16 x 1" hex bolts, flat washers and lock washers. (See Figure 5AH.) Figure 5AH H. Slide the top belt guard over the bottom belt guard as shown in Figure 5AH and tighten bolts.
  • Page 48 5. Assembly B. Connect the rigid conduit together using one (1) 3/4" conduit coupling between each piece of conduit. (See Figure 5AI.) Figure 5AI Sweep Section Conduit Sizes Bin Diameter 10' Conduit Pieces Other Pieces Bin Diameter 10' Conduit Pieces Other Pieces 1 @ 9' 1 @ 7'...
  • Page 49 5. Assembly 4. Thread a steel ring into the 3/4" flex conduit. (See Figure 5AJ.) 5. Thread the 3/4" flex conduit coupling cap onto the 3/4" flex conduit coupling body. (See Figure 5AJ.) Figure 5AJ D. Attach the 3/4" x 12" liquid-tight flex conduit to the other end of the rigid conduit using one (1) 3/4"...
  • Page 50 5. Assembly H. Feed each of the six (6) 14 AWG stranded wires through the 3/4" rigid conduit assembly and cut them off, leaving six inches (6") at both the left junction box and drive motor. I. Feed each of the six (6) 10 AWG stranded wires cord through the 3/4" x 40" liquid tight flex conduit and cut four (4) of them off, leaving six inches (6") at both the right junction box and auger motor.
  • Page 51 5. Assembly L. Attach the 3/4" rigid conduit assembly to the sweep using the 5/16"-18 x 3/4" studs welded to the sweep using 1" conduit clamps, lock washers and hex nuts. M. Run the 14 AWG stranded wires into the drive motor and fasten the 3/4" x 48" liquid-tight flex conduit to the motor using one (1) 3/4"...
  • Page 52 5. Assembly Figure 5AO R. Assemble the cord plugs to the other end of each cord. The 14 AWG/4 wire cord requires the (GC03670) plug. The 10 AWG/4 and 8 AWG/4 wire cord requires the (GC03668) plug. The 14 AWG/3 wire cord requires the (GC03672) plug. The plugs are different for each cord and MUST be assembled correctly.

  • Page 53: Jack Support Assembly

    5. Assembly Jack Support Assembly NOTE: Be sure to use the spanner bushings, supplied with the caster wheels, between the caster and the caster plate on each side. All Current Production and Old Style 12" Jack Support ( See Figure 5AP Figure 5AQ.
  • Page 54 5. Assembly D. Attach the jack caster assembly to the jack assembly using one (1) pin. E. Bolt the jack assembly to the jack mount assembly using four (4) 1/2"-13 x 2" hex bolts, lock washers and hex nuts. Figure 5AQ PNEG-720-KD 12"...

  • Page 55: Center Pivot Installation

    5. Assembly Center Pivot Installation NOTE: If you are only running the cords across the floor, you may skip Step A and go to Step B on Page A. Center pivot with pivot kit 1. Use the pivot assembly supplied with the sweep pivot kit and cut it to fit, if needed. The center pipe of the pivot assembly MUST be in the center of the bin.
  • Page 56 5. Assembly 5. Connect the pivot plate to the backshield using two (2) 1/2"-13 x 1-3/4" hex bolts, flat washers, lock washers and hex nuts. (See Figure 5AS.) 6. Fasten the pivot rod to the backshield and pivot plate using two (2) 1/2"-13 x 2" hex bolts, lock washers and hex nuts.
  • Page 57 5. Assembly 8. Connect the 1" x 48" liquid-tight flex conduit to the pivot tube using one (1) 1" conduit coupling and one (1) 1" liquid-tight flex conduit coupling. (See Figure 5AT.) 9. Connect the 1" x 48" liquid-tight flex conduit to one of the junction boxes using one (1) 1"...

  • Page 58: Control Panel Setup

    5. Assembly B. Center Pivot for Standard Sweep NOTE: The center pivot for a standard sweep must be supplied by the customer. The following are requirements for installation. The pivot pin MUST be in the center of the bin. If it is not, the sweep could hit the bin wall.

  • Page 59: Operation

    5. Assembly 2. Setting Setup a. Press “PRGM” to “SEtuP”. b. Press “ENTER” to “rdEC”. Use arrow buttons to change the decimal placement. Show .0 Amps. c. Press “ENTER” to “SETLO”. d. Press “ENTER” Value = 0.0 e. Press “ENTER” to “SEtHi”. f.
  • Page 60 5. Assembly 2. Setting Relays a. Press “PRGM” to “rELAYS”. b. Press “ENTER” to “HYS A”. c. Press “PRGM” This value = “High Amp Set Point”-“Low Amp Set Point” Use arrow buttons to change value. d. Press “ENTER” to RUN MODE. EXAMPLE: Full Load Running Amps = 21 Amps High Amp Set Point = 20 Amps Low Amp Set Point = 12 Amps...

  • Page 61: Chapter 6 Start-Up

    6. Start-Up Perform Pre-Start Checks To ensure that the drive is not unexpectedly started, turn OFF and lock out the power source before proceeding. Failure to observe these precautions could result in bodily injury. Failure to perform any or all of these pre-start checks may cause damage to the equipment and/or cause SERIOUS INJURY or DEATH to those in the work area.

  • Page 62: Start The Auger

    6. Start-Up Start the Auger DO NOT start or stop the auger while it is under load. A. Plug the two (2) motors, foot switch and thermal protection cords into the bottom of the control panel while making sure they are locked into the receptacles. Each plug is different and can only be plugged into one (1) receptacle to prevent accidental electric shock and/or overloads.

  • Page 63: Chapter 7 Operation

    7. Operation Operating the Sweep Auger Gear Reducer is shipped without oil. Add the proper amount of the recommended lubricant before operating. Failure to observe these precautions could result in damage to, or destruction of, the equipment. Danger! Keep out of the bin while the bin sweep auger is in operation. The rapidly moving sweep auger can cause SERIOUS INJURY or DEATH! NOTE: The auger capacity can fluctuate greatly under varying conditions.

  • Page 64: Operating The Sweep Auger Control Panel

    7. Operation Operating the Sweep Auger Control Panel A. The sweep operates in two (2) different “modes”. 1. Automatic (The auger motor runs and the drive motor runs using the Amp Meter in the control panel) Step on the foot switch and press the “Start” button. The auger motor will turn ON and the drive motor will turn ON only if the Amp Meter reaches the “Low”...

  • Page 65: Chapter 8 Shut Down

    8. Shut Down Normal Shut Down A. Before shutting down the unit, be sure the sumps and unload conveyor are empty. B. Press the “Stop” button on the control panel. Emergency Shut Down A. Know how to shut down the auger in case of an emergency. B.

  • Page 66: Chapter 9 Maintenance

    A. Use caution when repairing or replacing equipment parts. B. Make sure ALL decals are legible and securely attached to the auger. If necessary, replace them FREE OF CHARGE by contacting GSI at: GSI Group P.O. Box 20 1004 E.

  • Page 67: Lubrication

    9. Maintenance Lubrication A. Lubrication – Electric Motors Electric motors supplied for use on Series II Sweeps are properly lubricated at the time of manufacture. It is not necessary to lubricate them at the time of installation unless the motor has been in storage for one year or longer.
  • Page 68 9. Maintenance D. Frequency of Lubrication Motors should be relubricated after storage of one year or more or at the beginning of each season. The following chart gives the amount of grease to be added. Lubrication - Electric Motors Quantity of Grease per Frame Size For Baldor Brand Electric Motors Volume NEMA...
  • Page 69 9. Maintenance E. Lubrication – Reducers (Gear Boxes) Reducers supplied for use on Series II Sweeps are shipped without lubricant (dry). The proper lubricant must be added at the time of installation. Over lubrication may cause premature failure of the reducer. The amount of lubricant must be carefully controlled. F.
  • Page 70 9. Maintenance I. Type of Lubrication The type and quantity of lubrication required for each type and size of reducer is listed in the following chart. Lubrication - Gear Boxes Quantity and Type of Lubricant per Box Size Foote-Jones (Screw Drive) Reducer Volume Box Size Quarts...
  • Page 71 9. Maintenance J. Lubrication – Bearings, Casters and Jacks The flange bearings, pillow block bearings and casters supplied for use on Series II Sweeps are shipped from the factory lubricated. From time to time a small amount of the proper lubricant must be added.
  • Page 72 9. Maintenance O. Type of Lubrication The type of lubrication required, for each component, is listed in the following chart. Lubrication - Bearings, Casters and Misc. Equipment Type of Lubricant Equipment Lubrication Specification Tractor Drive Pillow Blocks Shell Oil Company Alvania #2 (or equivalent) End Flange Bearing Shell Oil Company...

  • Page 73: Chapter 10 Control Panel Diagrams

    10. Control Panel Diagrams Control Panel Schematic (460/3/60) NOTE: All wires are to be 18 AWG unless otherwise noted. PNEG-720-KD 12" and 16" Series II Knock Down Sweep...

  • Page 74: Control Panel Schematic (230/3/60)

    10. Control Panel Diagrams Control Panel Schematic (230/3/60) NOTE: All wires are to be 18 AWG unless otherwise noted. PNEG-720-KD 12" and 16" Series II Knock Down Sweep...

  • Page 75: Control Panel Schematic (380/3/50)

    10. Control Panel Diagrams Control Panel Schematic (380/3/50) NOTE: All wires are to be 18 AWG unless otherwise noted. PNEG-720-KD 12" and 16" Series II Knock Down Sweep...

  • Page 76: Chapter 11 Troubleshooting

    11. Troubleshooting Problem Possible Cause Solution 1. Sweep does not run 1. Power cords may be unplugged. 1. Plug in the power cords. 2. Foot switch may not be actuated. 2. Make sure the foot switch is depressed and the switch is operating properly. 3.

  • Page 77: Faqs

    FAQs Who do I contact for parts or service? Contact your dealer. If your unit was purchased direct from GSI, contact your inside sales person. What is/where do I find the model number of my sweep? The model number of your sweep can be found on your quote or invoice. A space is provided at the front of your manual to record this number.
  • Page 78 11. Troubleshooting Do I want to buy a pivot or a standard sweep? What is the difference? The following drawing (Figure 11B) is of a 16" pivot sweep head end weldment and a 16" standard sweep head end weldment. There are very few differences between the two. The standard head weldment has the female pivot tube welded to the drive end of the unit.
  • Page 79 If installing a GSI supplied sump shell with collector ring, the opening must be 42-1/2" x 42-1/2" x 30" deep for either the 12" or 16" sweep.
  • Page 80 This switch must be sized for the screw and tractor drive motors. The power must be locked out before servicing the equipment, entering the bin, or resetting the motor overloads. The disconnect and the wiring to the GSI supplied control box is the owner’s responsibility and is not included with the sweep.
  • Page 81 11. Troubleshooting Can I just run my sweep in the manual mode? The Series II Sweep is designed to run in the automatic mode. If the sweep is run in the manual mode, either of the motors may overheat and/or become damaged. Also, excessive amounts of material may spill over the back board of the sweep.
  • Page 82 11. Troubleshooting What do I do if I encounter any operational problems? Disconnect and lock out the power before servicing the equipment, entering the bin, or resetting the motor overloads. Look through the troubleshooting section to identify any problems. There does not seem to be any power to my sweep. What do I do? Check to be sure the foot switch is plugged into the control panel and depressed.
  • Page 83 11. Troubleshooting Is there any maintenance I need to perform on the electrical system? None of the electrical components require maintenance. Be sure to disconnect and lock out the power before servicing the equipment, entering the bin, or resetting the motor overloads. Does any part of the Series II Sweep need lubrication? The fluid level of each of the gear reducers must be checked before operation.
  • Page 84 NOTES PNEG-720-KD 12" and 16" Series II Knock Down Sweep...

  • Page 85: Chapter 12 Parts List

    12. Parts List 1. Main Auger Components 2. Flight Components 3. End Bearing Components 4. Auger Drive Components 5. Drive Assembly 6. Tractor Chain Guard Parts 7. Motor Mount Jack and Base Assembly (GC09993) 8. 12" Jack Support Assembly 9. 16" Jack Support Assembly 10.

  • Page 86: Main Auger Components

    12. Parts List Main Auger Components PNEG-720-KD 12" and 16" Series II Knock Down Sweep...
  • Page 87 12. Parts List Main Auger Components Ref # Part # Description Ref # Part # Description GC10866 Head Section Assembly 12" x 60-Std-KD GC10942 Head Section Assembly 16" x 132-Pvt-KD GC10825 Head Truss Assembly, 60" KD GC10830 Head Truss Assembly, 132" KD GC10258 Head Section Assembly 12"...
  • Page 88 12. Parts List Main Auger Components (Continued) PNEG-720-KD 12" and 16" Series II Knock Down Sweep...
  • Page 89 12. Parts List Ref # Part # Description GC10252 Tractor Mount Assembly 12" KD GC10020 Tractor Mount Assembly-KD GC10023 Tractor Drive Stand-KD GC10028 Counterweight Channel Assembly-KD GC06608 Head Flight 12" x 56.75" GC06609 Head Flight 12" x 68.75" GC06610 Head Flight 12" x 80.75" GC07528 Head Flight 12"...

  • Page 90: Flight Components

    12. Parts List Flight Components 12" Flight Connection Components Qty Per Ref # Part # Description Connection Intermediate Shroud - 3/16" x 12" GC06000 Hanger Bearing Bracket for 12" Sweep S-4329 Bolt HHCS 5/8"-11 x 2 ZN GR8 S-3208 5/8" Lock Washer S-8423 Washer Flat SQ 11/16"...
  • Page 91 12. Parts List 16" Flight Connection Components Qty Per Ref # Part # Description Connection Intermediate Shroud - 3/16" x 16" GC04064 Hanger Bearing Bracket for 16" Sweep S-4329 Bolt HHCS 5/8"-11 x 2 ZN GR8 S-3208 5/8" Lock Washer S-8423 Washer Flat SQ 11/16 ZN S-4110...

  • Page 92: End Bearing Components

    12. Parts List End Bearing Components Ref # Part # Description GC03385 Caster 2" x 4" x 1/2" Axle (16" Sweeps) GC03480 End Caster Assembly (16" Sweeps) GC03387 Hairpin, 1-15/16" x 0.125" Wire (16" Sweeps) GK1522 Washer Head Pin 1/2" Dia. x 3-1/2" (16" Sweeps) GC06870 Flange Bearing 2"...
  • Page 93 NOTES PNEG-720-KD 12" and 16" Series II Knock Down Sweep...

  • Page 94: Auger Drive Components

    12. Parts List Auger Drive Components PNEG-720-KD 12" and 16" Series II Knock Down Sweep...
  • Page 95 12. Parts List Auger Drive Components Ref # Part # Description Motor: XPFC, Class 2 Group F and G GK3663 7.5 HP - 213T Frame GK3655 10 HP - 215T Frame GK3536 15 HP - 254T Frame GK3659 20 HP - 256T Frame GK4023 25 HP - 284T Frame GC09993...

  • Page 96: Drive Assembly

    12. Parts List Drive Assembly PNEG-720-KD 12" and 16" Series II Knock Down Sweep...
  • Page 97 12. Parts List Drive Assembly Ref # Part # Description GC06631 Reducer, 324 Model, 40:1 Style B, 56C Frame (Used with 1 HP Motors, 56C Frame) GC03651 Reducer, 384 Model, 40:1 Style B, 143TC Frame (Used with 2 HP Motors, 143TC Frame) GC06477 Reducer, 384 Model, 40:1 Style B, 182TC Frame (Used with 3 HP Motors, 182TC Frame) GC09775...

  • Page 98: Tractor Chain Guard Parts

    12. Parts List Tractor Chain Guard Parts Ref # Part # Description GC10044 Top Chain Guard Assembly GC10048 Bottom Chain Guard Assembly GC10036 Bottom Chain Guard Weldment GC10047 Bottom Chain Guard Trap S-236 Washer, Split Lock 1/2" S3729 Nut, Hex 1/2"-13 S7722 Bolt, 1/2"-13 x 3"...

  • Page 99: Motor Mount Jack And Base Assembly (Gc09993)

    12. Parts List Motor Mount Jack and Base Assembly (GC09993) Motor Jack Assembly (GC09992) Ref # Part # Description GC09991 Jack Housing Assembly GC09479 Jack/Caster Mount Base GC03435 Jack-Complete GC03436 Swivel Caster S-1054 Washer, Lock 3/8" S-2071 Bolt, 3/8"-16 x 1-1/4" S-456 Nut, Hex 3/8"-16 S-8441...

  • Page 100: 12" Jack Support Assembly

    12. Parts List 12" Jack Support Assembly Ref # Part # Description GC06974 Caster Wheel 3" x 8" Dia. x 3/4" Axle S-6638 Bolt HHCS 3/4"-10 x 5-1/2" Zn Gr 8 S-233 Washer Lock Split 3/4" Zn S-234 Nut Hex 3/4"-10 Zn Gr 5 GC08507 S2 Sweep Jack Caster Assembly - 12"...

  • Page 101: 16" Jack Support Assembly

    12. Parts List 16" Jack Support Assembly Ref # Part # Description GC07904 Swivel Caster 3" x 8" Dia. S-7528 Bolt HHCS 1/2"-13 x 1-1/2" Zn Gr 5 S-236 Washer Lock Split 1/2" Zn S-7510 Nut Hex 1/2"-13 Zn Gr 5 GC07908 S2 Sweep Jack Caster Assembly - 16"...

  • Page 102: Control Panel Components

    12. Parts List Control Panel Components PNEG-720-KD 12" and 16" Series II Knock Down Sweep...
  • Page 103 12. Parts List Control Panel Components Ref # Part # Description D01-0533 Din Rail End Stop DC-889 Decal, Danger! High Voltage D03-0491 Starter 3 Pole Cont 22 Amps GCO7038 Starter 3 Pole Cont 32 Amps D03-0494 Starter 3 Pole Cont 48 Amps D03-0495 Starter 3 Pole Cont 62 Amps D03-0498...
  • Page 104 12. Parts List Control Panel Components Ref # Part # Description DC-1224 Decal, DANGER! Hi Voltage DC-1536 Decal, Series 2 Sweep Panel Overlay DC-889 Decal, DANGER! Hi Voltage GC03659 Std-Round-Push Button-Plastic-Flush-Red GC03666 Hubbell Locking Receptacle - 3 Pole 4 Wire 50 Amps 480 Voltage GC03667 Hubbell Wdl Open Lift Cover GC03668...

  • Page 105: Weight Extension Kit (Gc08144)

    12. Parts List Weight Extension Kit (GC08144) Ref # Part # Description GC08141 S2 Sweep Adjustable Center Weight Channel GC08143 S2 Sweep Center Weight Channel Weldment S-1054 3/8" Split Lock Washer Zinc S-236 1/2" Split Lock Washer Med Zinc S-456 3/8"-16 Hex Nut Zinc YDP Gr 5 S-7510 1/2"-13 Hex Nut Zinc Gr 2...
  • Page 106 NOTES PNEG-720-KD 12" and 16" Series II Knock Down Sweep...

  • Page 107: Chapter 13 Warranty

    WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE IN CONNECTION WITH (I) PRODUCT MANUFACTURED OR SOLD BY GSI OR (II) ANY ADVICE, INSTRUCTION, RECOMMENDATION OR SUGGESTION PROVIDED BY AN AGENT,...
  • Page 108 Authorities having jurisdiction should be consulted before installations are made. GSI Group 1004 E. Illinois St. Assumption, IL 62510-0020 Phone: 1-217-226-4421 Fax: 1-217-226-4420 www.gsiag.com Copyright © 2008 by GSI Group Printed in the USA...
