Chapter 5: Installing the Power Supply
2. Use the Cable Hub to Power Supply Unit Cable (21) to connect the output port (marked as "Cable
Monitoring Hub") on the Power Supply Unit (20) to the power supply port (29) in the Cable
Monitoring Hub (16).
NOTE: Manage the cable (21) every 3' using P-clips.

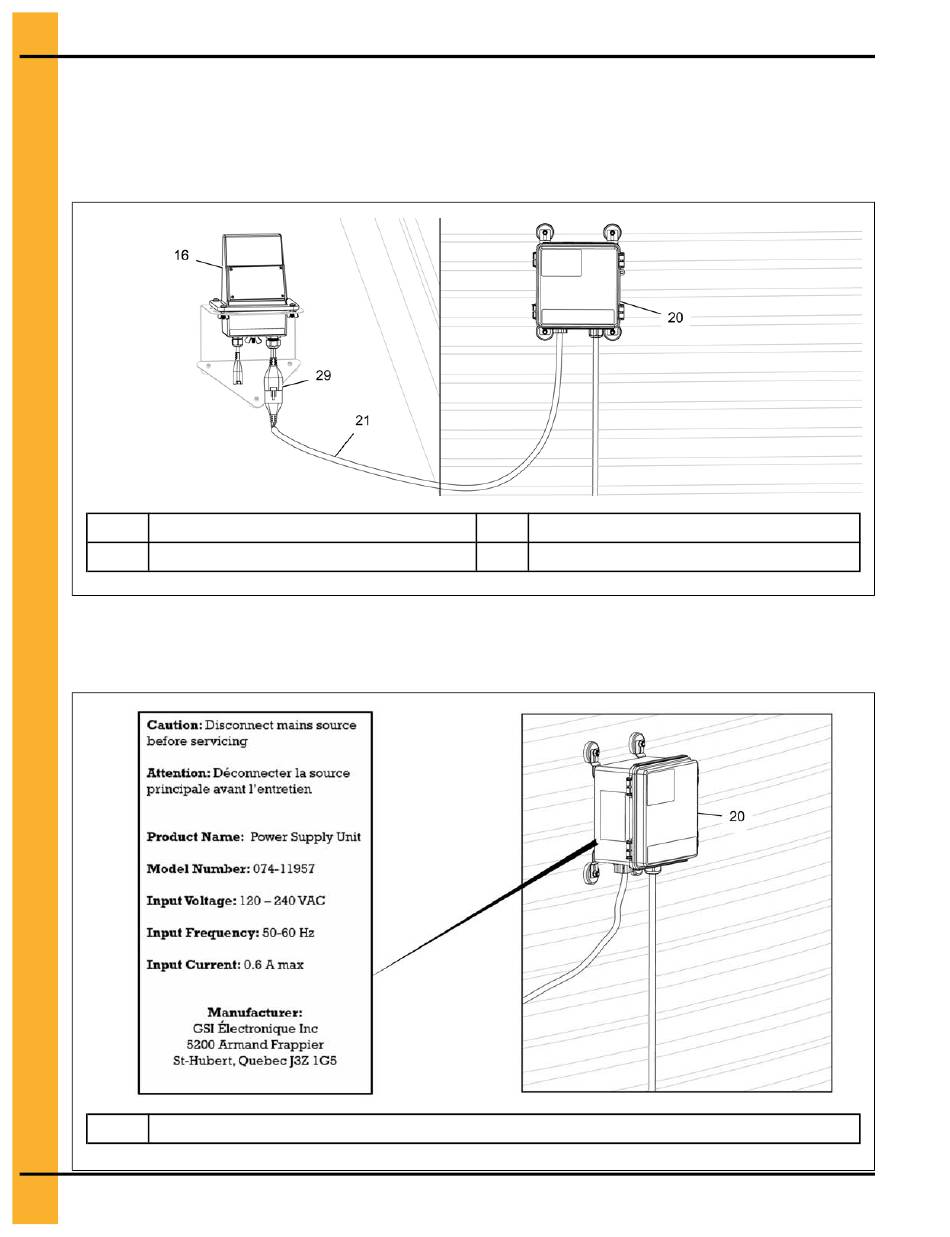

Figure 5-2 Connecting the Power Supply Unit to the Cable Monitoring Hub
Cable Monitoring Hub
16
Power Supply Unit
20
NOTE:
Figure 5-3, page 30
information can also be found on the side of the unit.
Figure 5-3 Power Supply Unit - electrical specification
Power Supply Unit
20
30
shows the electrical specifications for the Power Supply Unit (20). This
Cable Hub to Power Supply Unit Cable
21
Power supply port
29
PNEG-2347 Cable Monitoring System
