8

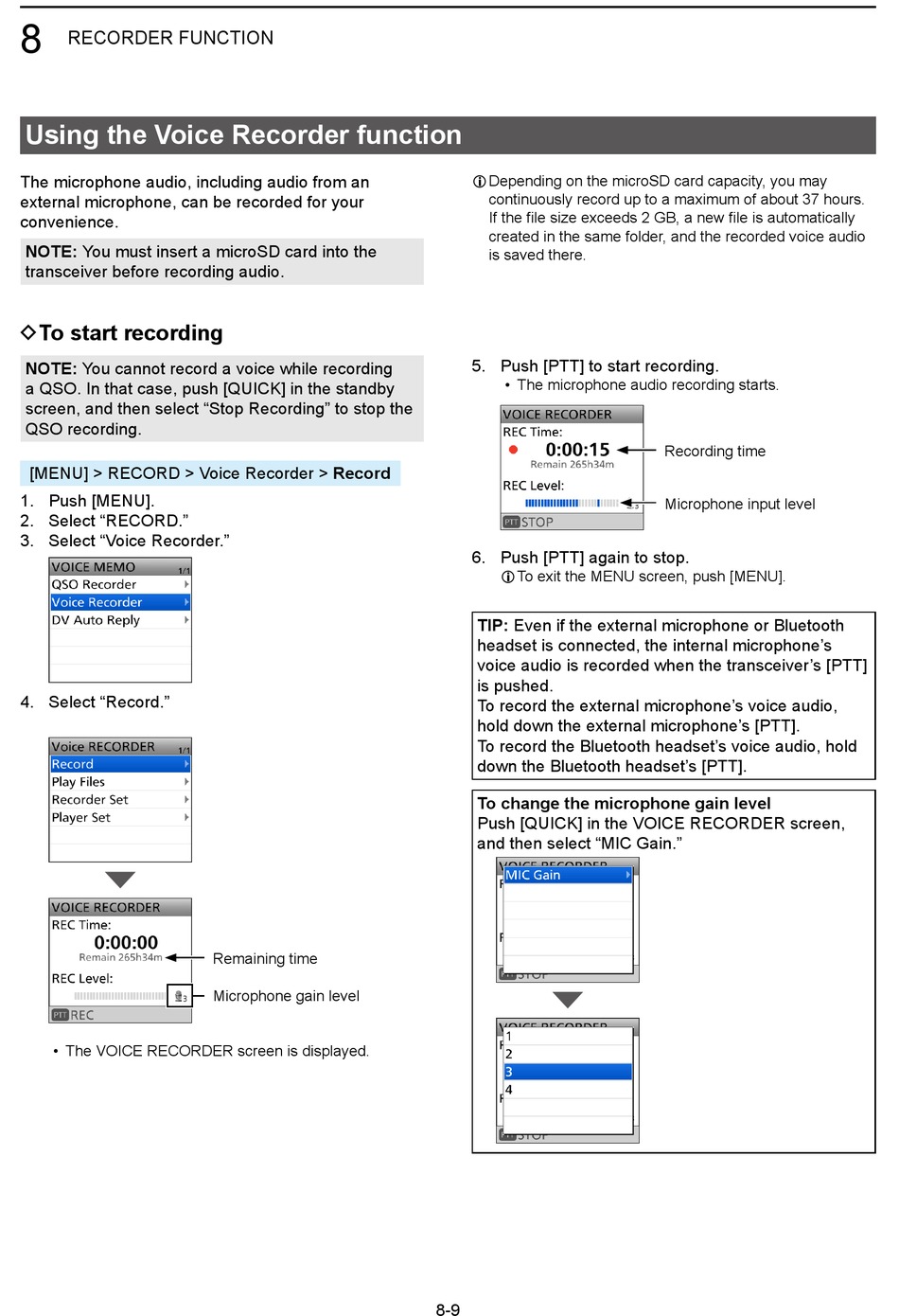

RECORDER FUNCTION

Using the Voice Recorder function

The microphone audio, including audio from an
external microphone, can be recorded for your
convenience�
NOTE: You must insert a microSD card into the
transceiver before recording audio�

DTo start recording

NOTE: You cannot record a voice while recording
a QSO� In that case, push [QUICK] in the standby
screen, and then select "Stop Recording" to stop the
QSO recording�
[MENU] > RECORD > Voice Recorder > Record
1� Push [MENU]�
2� Select "RECORD�"
3� Select "Voice Recorder�"
4� Select "Record�"
• The VOICE RECORDER screen is displayed�
Remaining time
Microphone gain level
L Depending on the microSD card capacity, you may
continuously record up to a maximum of about 37 hours�
If the file size exceeds 2 GB, a new file is automatically
created in the same folder, and the recorded voice audio
is saved there�
5� Push [PTT] to start recording�
• The microphone audio recording starts�
6� Push [PTT] again to stop�
L To exit the MENU screen, push [MENU]�
TIP: Even if the external microphone or Bluetooth
headset is connected, the internal microphone's
voice audio is recorded when the transceiver's [PTT]
is pushed�
To record the external microphone's voice audio,
hold down the external microphone's [PTT]�
To record the Bluetooth headset's voice audio, hold
down the Bluetooth headset's [PTT]�
To change the microphone gain level
Push [QUICK] in the VOICE RECORDER screen,
and then select "MIC Gain�"
8-9
Recording time
Microphone input level
