6

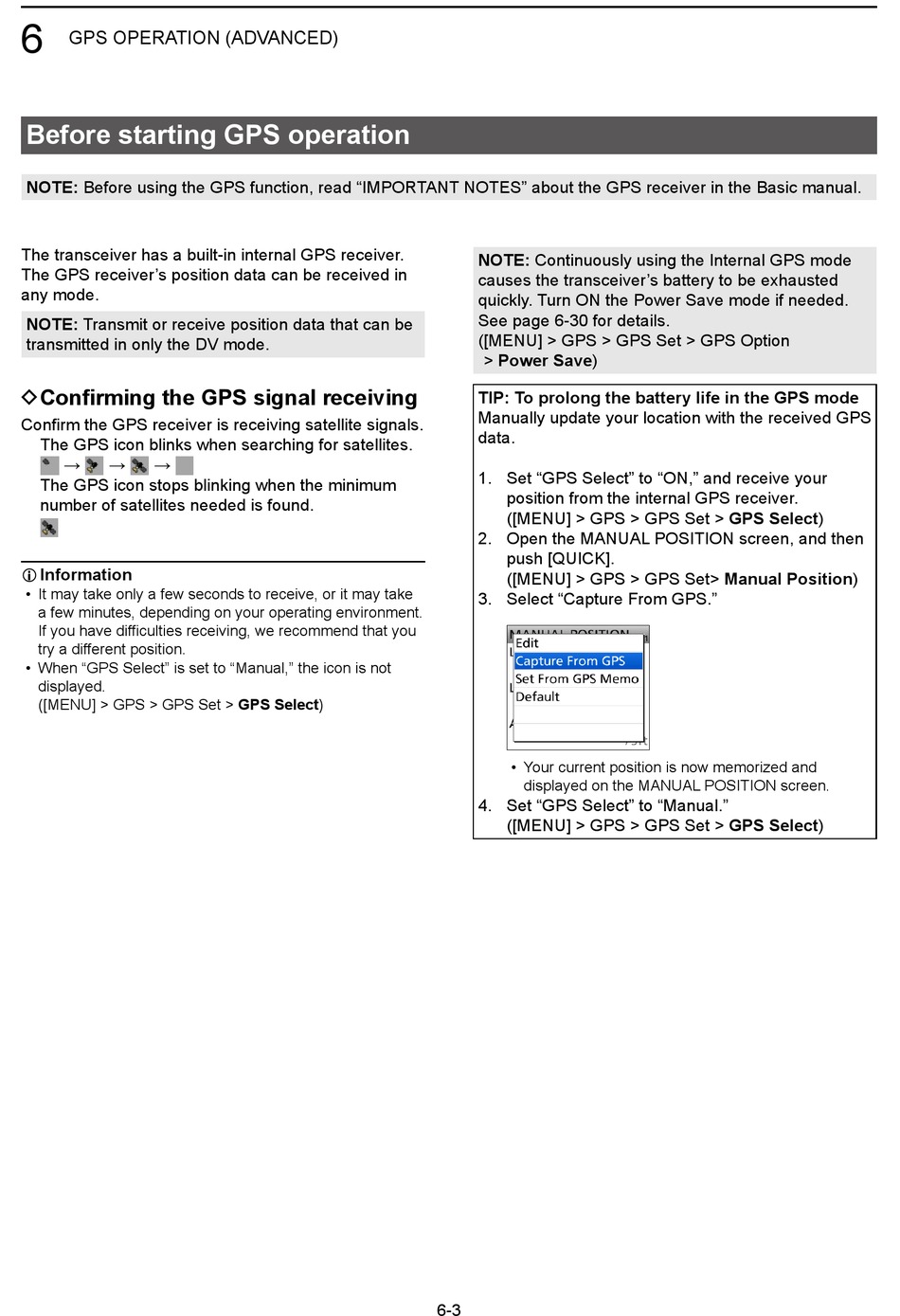

GPS OPERATION (ADVANCED)

Before starting GPS operation

NOTE: Before using the GPS function, read "IMPORTANT NOTES" about the GPS receiver in the Basic manual�
The transceiver has a built-in internal GPS receiver�
The GPS receiver's position data can be received in
any mode�
NOTE: Transmit or receive position data that can be
transmitted in only the DV mode�

DConfirming the GPS signal receiving

Confirm the GPS receiver is receiving satellite signals�
The GPS icon blinks when searching for satellites�
→ → →
The GPS icon stops blinking when the minimum
number of satellites needed is found�
L Information
• It may take only a few seconds to receive, or it may take
a few minutes, depending on your operating environment�
If you have difficulties receiving, we recommend that you
try a different position�
• When "GPS Select" is set to "Manual," the icon is not
displayed�
([MENU] > GPS > GPS Set > GPS Select)
NOTE: Continuously using the Internal GPS mode
causes the transceiver's battery to be exhausted
quickly� Turn ON the Power Save mode if needed�
See page 6-30 for details�
( [MENU] > GPS > GPS Set > GPS Option
> Power Save)
TIP: To prolong the battery life in the GPS mode
Manually update your location with the received GPS
data�
1� Set "GPS Select" to "ON," and receive your
position from the internal GPS receiver�
([MENU] > GPS > GPS Set > GPS Select)
2� Open the MANUAL POSITION screen, and then
push [QUICK]�
([MENU] > GPS > GPS Set> Manual Position)
3� Select "Capture From GPS�"
• Your current position is now memorized and
displayed on the MANUAL POSITION screen�
4� Set "GPS Select" to "Manual�"
([MENU] > GPS > GPS Set > GPS Select)
6-3
