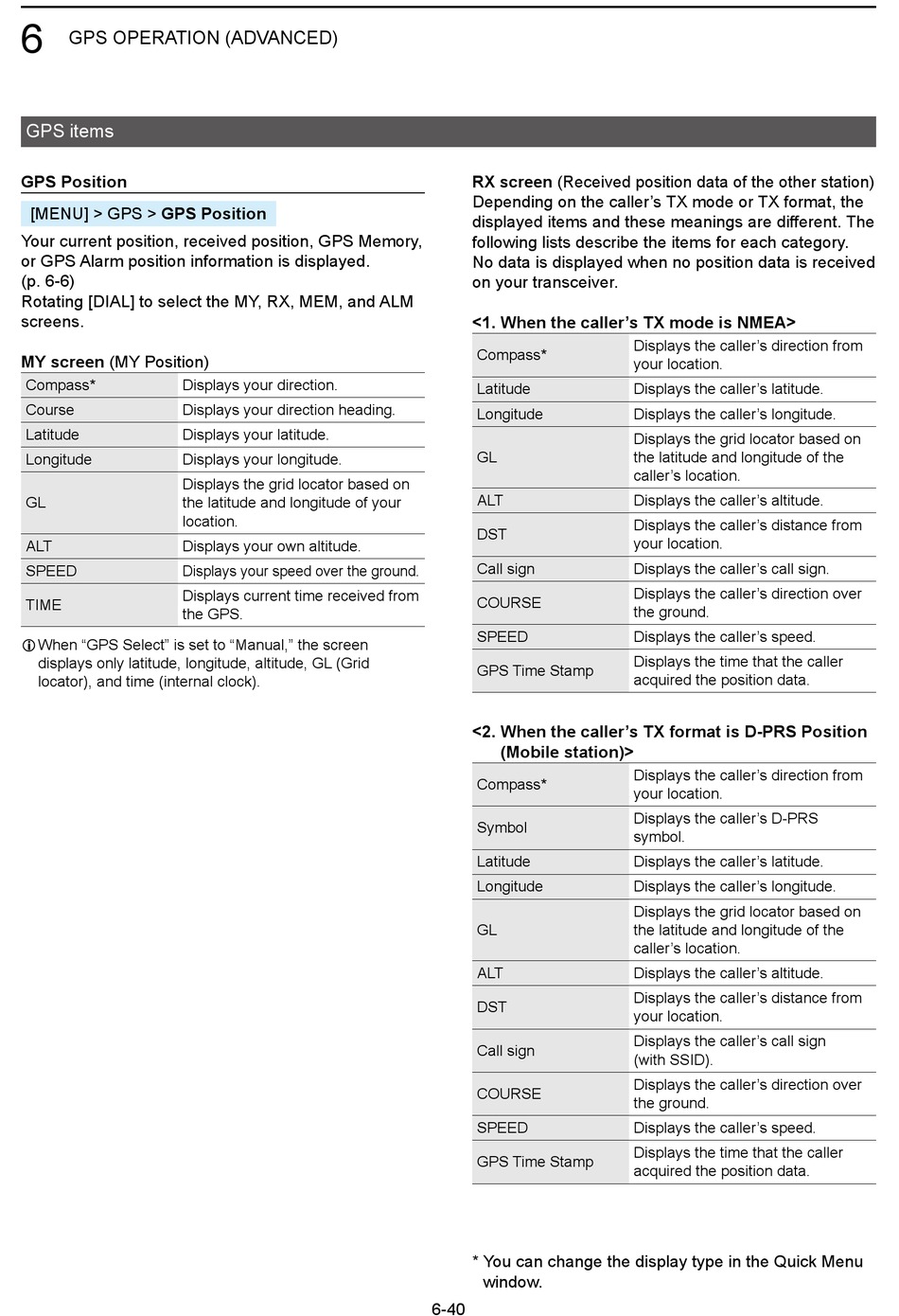

Icom ID-52A Advanced Manual page 125

6
GPS OPERATION (ADVANCED)
GPS items
GPS Position
[MENU] > GPS > GPS Position
Your current position, received position, GPS Memory,
or GPS Alarm position information is displayed�
(p� 6-6)
Rotating [DIAL] to select the MY, RX, MEM, and ALM
screens�
MY screen (MY Position)
Compass* Displays your direction�
Course Displays your direction heading�
Latitude Displays your latitude�
Longitude Displays your longitude�
Displays the grid locator based on
GL the latitude and longitude of your
location�
ALT Displays your own altitude�
SPEED Displays your speed over the ground�
Displays current time received from
TIME
the GPS�
L When "GPS Select" is set to "Manual," the screen
displays only latitude, longitude, altitude, GL (Grid
locator), and time (internal clock)�
RX screen (Received position data of the other station)
Depending on the caller's TX mode or TX format, the
displayed items and these meanings are different� The
following lists describe the items for each category�
No data is displayed when no position data is received
on your transceiver�
<1. When the caller's TX mode is NMEA>
Compass*
Latitude
Longitude
GL
ALT
DST
Call sign
COURSE
SPEED
GPS Time Stamp
<2. When the caller's TX format is D-PRS Position
(Mobile station)>
Compass*
Symbol
Latitude
Longitude
GL
ALT
DST
Call sign
COURSE
SPEED
GPS Time Stamp
* You can change the display type in the Quick Menu
window�
6-40
Displays the caller's direction from
your location�
Displays the caller's latitude�
Displays the caller's longitude�
Displays the grid locator based on
the latitude and longitude of the
caller's location�
Displays the caller's altitude�
Displays the caller's distance from
your location�
Displays the caller's call sign�
Displays the caller's direction over
the ground�
Displays the caller's speed�
Displays the time that the caller
acquired the position data�
Displays the caller's direction from
your location�
Displays the caller's D-PRS
symbol�
Displays the caller's latitude�
Displays the caller's longitude�
Displays the grid locator based on
the latitude and longitude of the
caller's location�
Displays the caller's altitude�
Displays the caller's distance from
your location�
Displays the caller's call sign
(with SSID)�
Displays the caller's direction over
the ground�
Displays the caller's speed�
Displays the time that the caller
acquired the position data�
