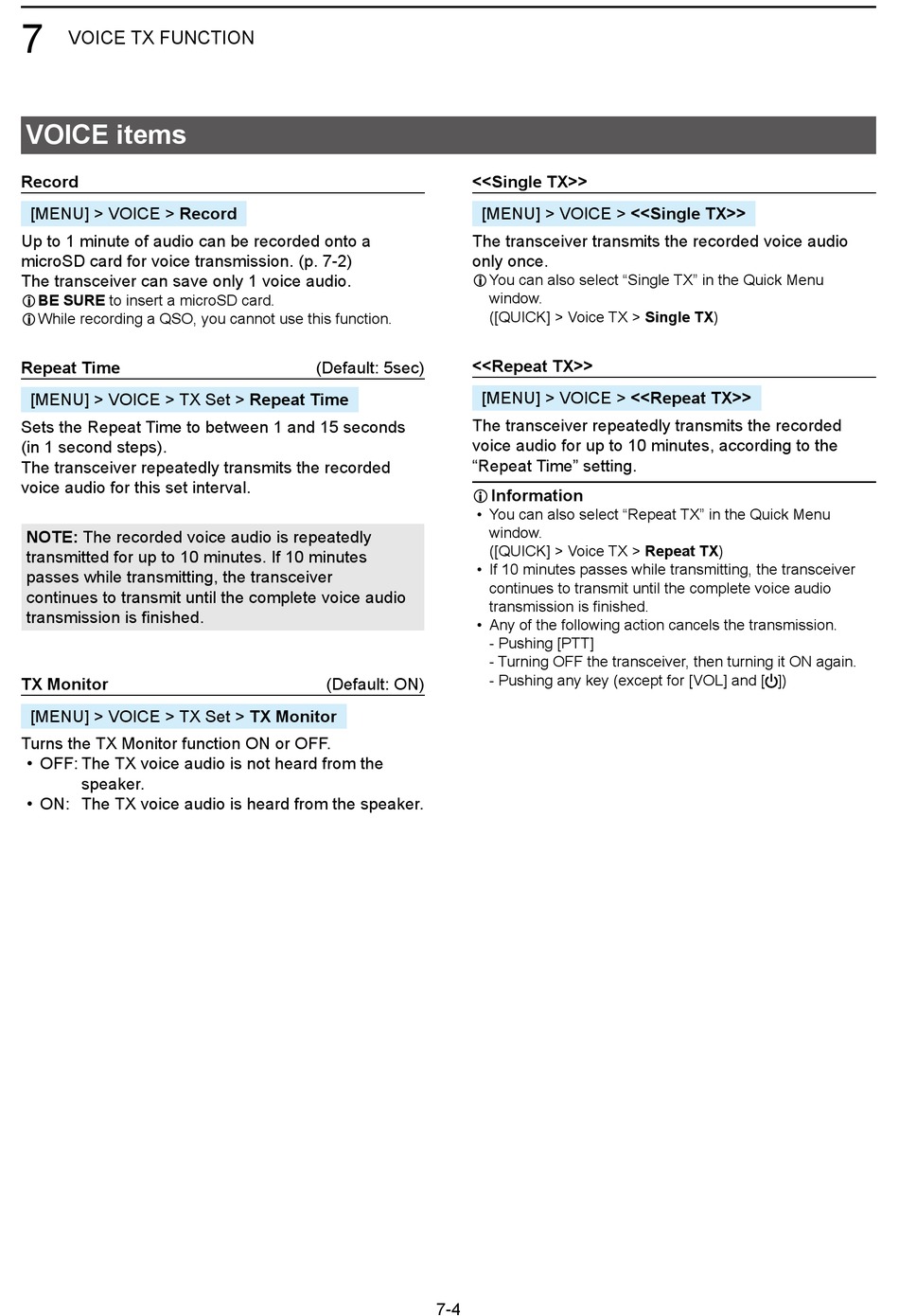

Voice Items - Icom ID-52A Advanced Manual

7
VOICE TX FUNCTION

VOICE items

Record
[MENU] > VOICE > Record
Up to 1 minute of audio can be recorded onto a
microSD card for voice transmission� (p� 7-2)
The transceiver can save only 1 voice audio�
L BE SURE to insert a microSD card�
L While recording a QSO, you cannot use this function�
Repeat Time
[MENU] > VOICE > TX Set > Repeat Time
Sets the Repeat Time to between 1 and 15 seconds
(in 1 second steps)�
The transceiver repeatedly transmits the recorded
voice audio for this set interval�
NOTE: The recorded voice audio is repeatedly
transmitted for up to 10 minutes� If 10 minutes
passes while transmitting, the transceiver
continues to transmit until the complete voice audio
transmission is finished�
TX Monitor
[MENU] > VOICE > TX Set > TX Monitor
Turns the TX Monitor function ON or OFF�
• OFF: The TX voice audio is not heard from the
speaker�
• ON: The TX voice audio is heard from the speaker�
<<Single TX>>
[MENU] > VOICE > <<Single TX>>
The transceiver transmits the recorded voice audio
only once�
L You can also select "Single TX" in the Quick Menu
<<Repeat TX>>
(Default: 5sec)
[MENU] > VOICE > <<Repeat TX>>
The transceiver repeatedly transmits the recorded
voice audio for up to 10 minutes, according to the
"Repeat Time" setting�
L Information
• You can also select "Repeat TX" in the Quick Menu
• If 10 minutes passes while transmitting, the transceiver
• Any of the following action cancels the transmission�
(Default: ON)
7-4
window�
([QUICK] > Voice TX > Single TX)
window�
([QUICK] > Voice TX > Repeat TX)
continues to transmit until the complete voice audio
transmission is finished�
- Pushing [PTT]
- Turning OFF the transceiver, then turning it ON again�
- Pushing any key (except for [VOL] and [ ])
